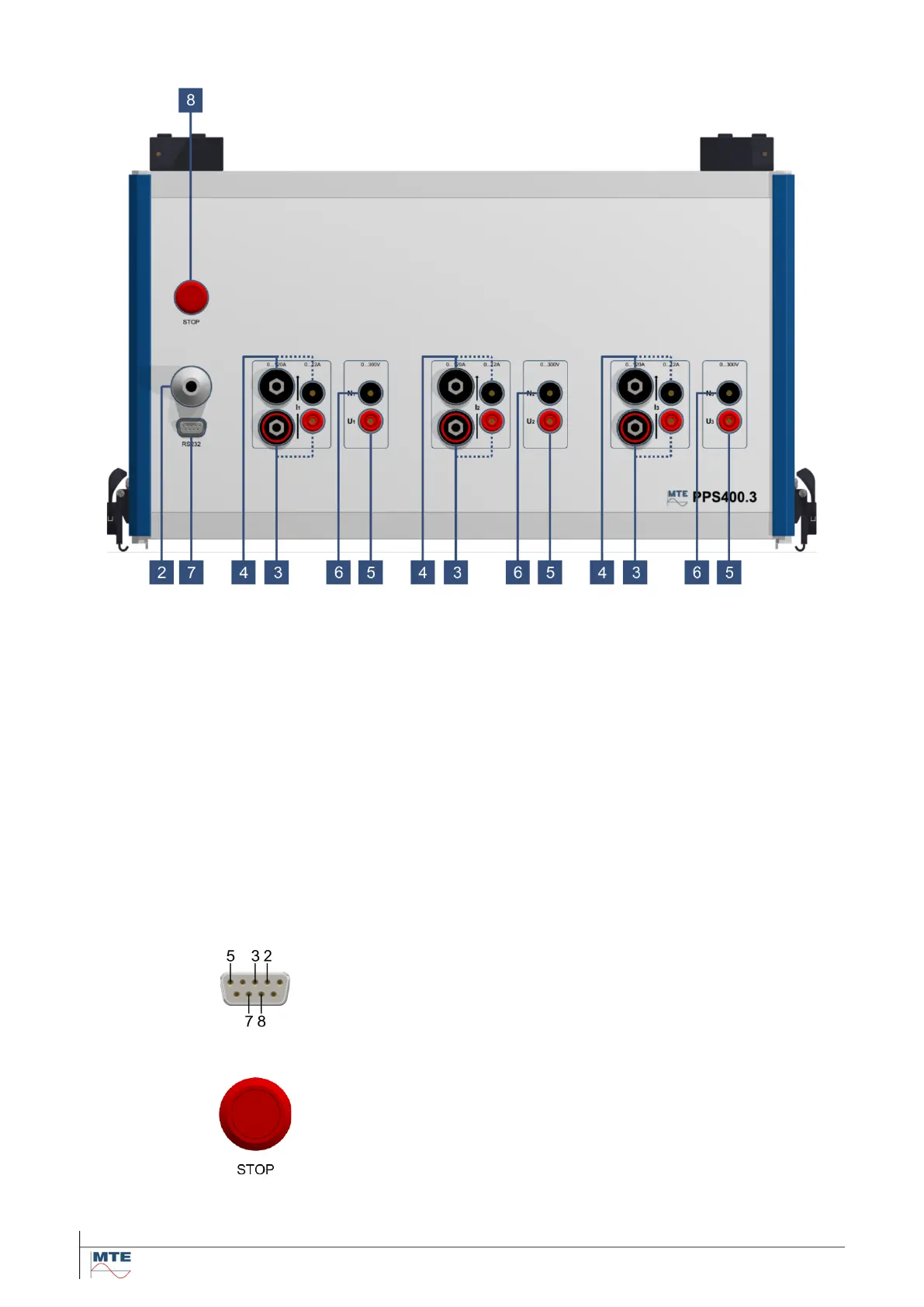

Top View
[2]
Blue tooth antenna for wireless communication
[3]
Current-outputs I1, I2, I3 (red)
There are two separate outputs for 12 A and 120 A
--- laboratory cables Imax. 12 A (standard), Type: 4 mm insulated socket
— high current cables Imax. 120 A (option), Type: 6 mm high current connector
[4]
Current-back wire I1, I2, I3 (black)
--- laboratory cables Imax. 12 A (standard), Type: 4 mm insulated socket
— high current cables Imax. 120 A (option), Type: 6 mm high current connector
(The sockets and connectors for 12A and 120A are connected internally for each
phase)
[5]
Phase connections for 3 voltage U1, U2, U3
Type: 4 mm insulated sockets
[6]
Neutral connections for 3 voltage N1, N2, N3
Type: 4 mm insulated sockets
[7]
RS232 Serial Line Interfaces
Connection: 9 pole SUB-D connector
Pin 2  TxD
Pin 3  RxD
Pin 5  GND
Pin 7  CTS
Pin 8  RTS
[8]
Interrupt button
