Setup of Recording Options

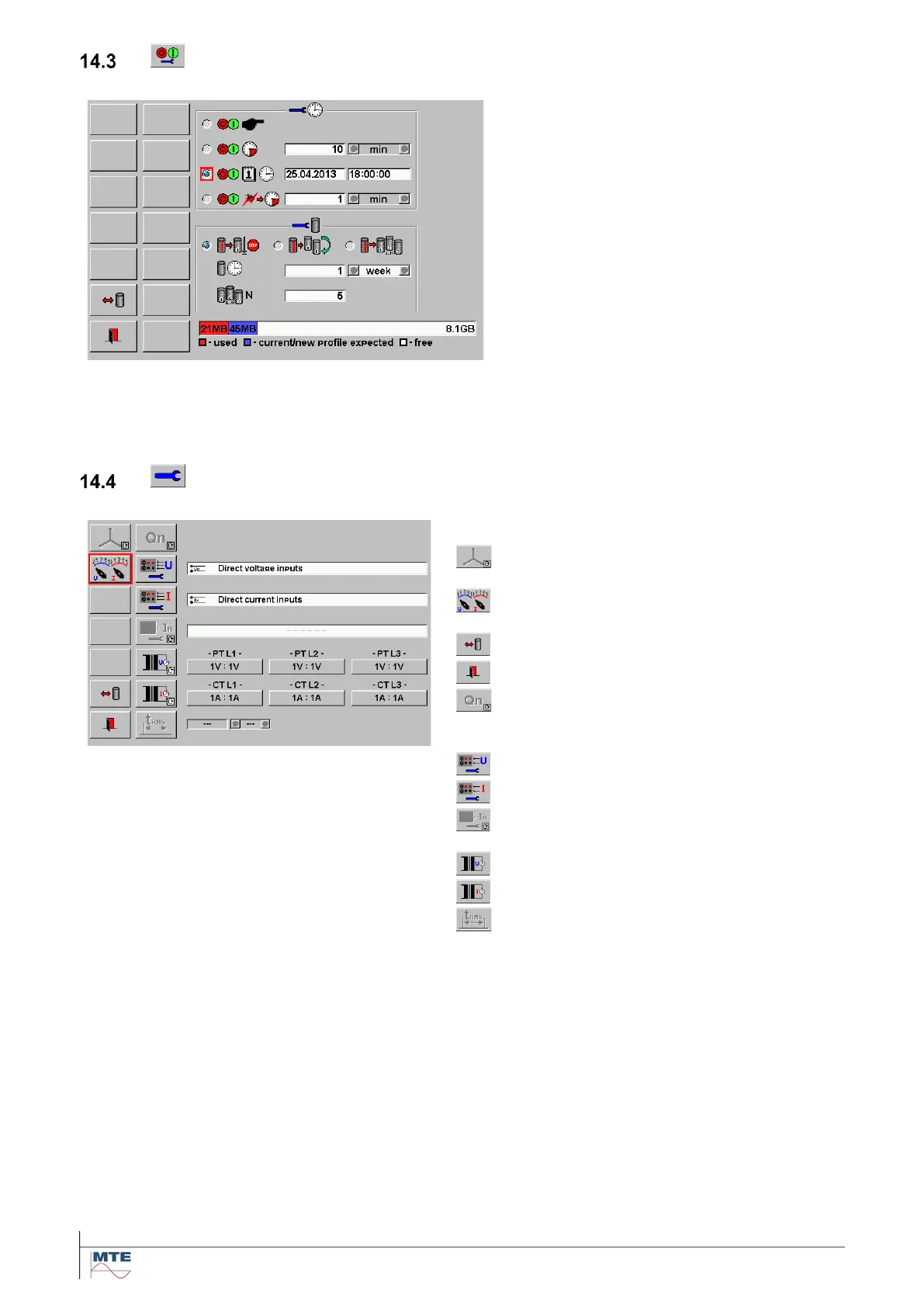

Recording Options
Recording start
• Immediate at pressing of start button
• Delayed (e.g. 10 min)
• At exact date and time
• Delayed after power-on (e.g. 1 min)
Recording time blocks configuration
• Time block interval (e.g. T = 1 week)
• Recording in one block of T. Stop of re-
cording, if memory is full.
• Recording swapping between two blocks
A, B in interval T.
• Recording with N blocks of interval T.
Setup of Voltage and Current Inputs
The following settings are displayed:
Connection mode 4-wire (selection only
available, if used as reference standard)
Setting of internal voltage and current
ranges
Load or save current parameters
Exit of menu
Reactive power mode natural Qn (selec-
tion only available, if used as reference
standard)
Selection of voltage measurement inputs
Selection of current measurement inputs
Selection of IN/IE measurement inputs
(not available at PRS 600.3)
Voltage transformer settings
Current transformer settings
Recording time base (PQ online only)
For a detailed description of the different settings see chapter 11.1.
