MTE PTS 400.3 PLUS - 17.2.20 Verification of PRS 600.3 Internal Reference Voltages against Ext. DC-Standard

PTS 400.3 PLUS Operation Manual_R02 Page 294/306

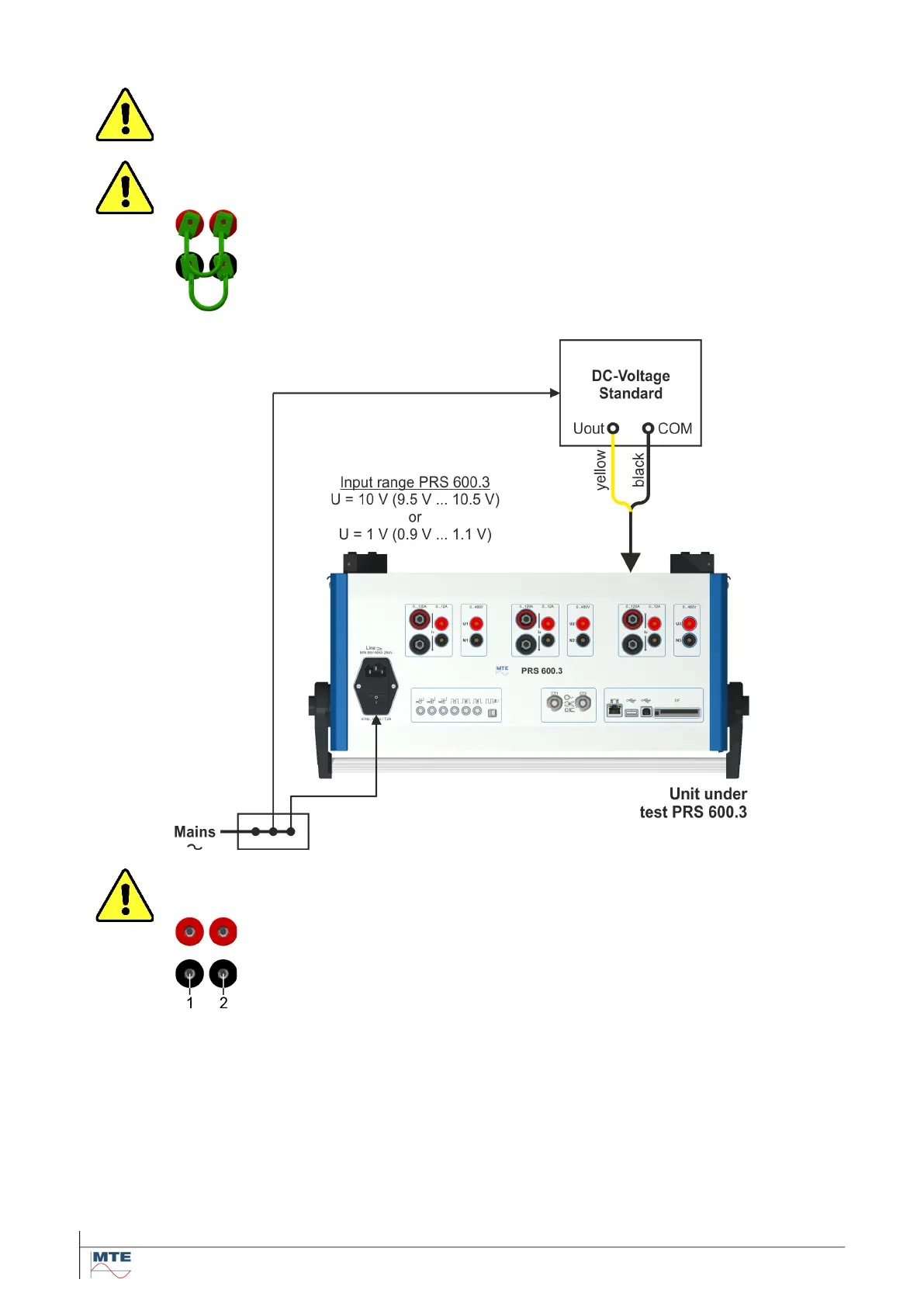

17.2.20 Verification of PRS 600.3 internal reference voltages against ext. DC-standard
Remove all cables connected to the PRS 600.3, except the power supply cable, before
starting the test
Make short circuit connections between the two red 2mm sockets and the two black
2mm sockets before starting the test
Remove the short circuit connections between the red and black 2mm sockets after fin-
ishing the test
