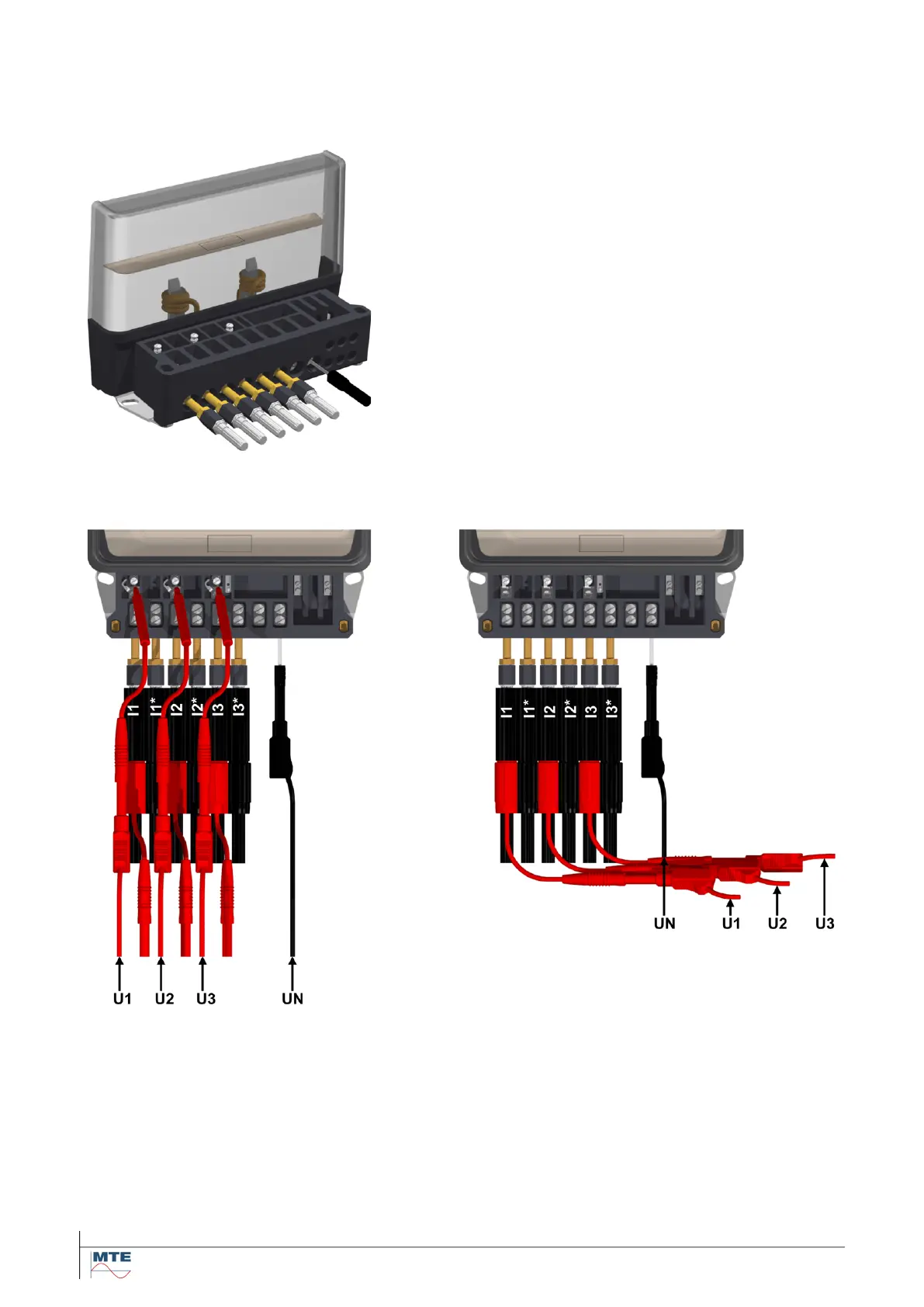

Connections to meter under test (example for IEC-type meter)
Adapter pins
Direct connected
4-wire meter
Uninstalled on site or in laboratory
Maximum test current 120 A
Test links open
Test links closed
For other type of meters (ANSI Form S, Form A; British Standard BS etc.) consult the documentation
delivered by the manufacturer and adapt the connections to the meter regarding your needs.
