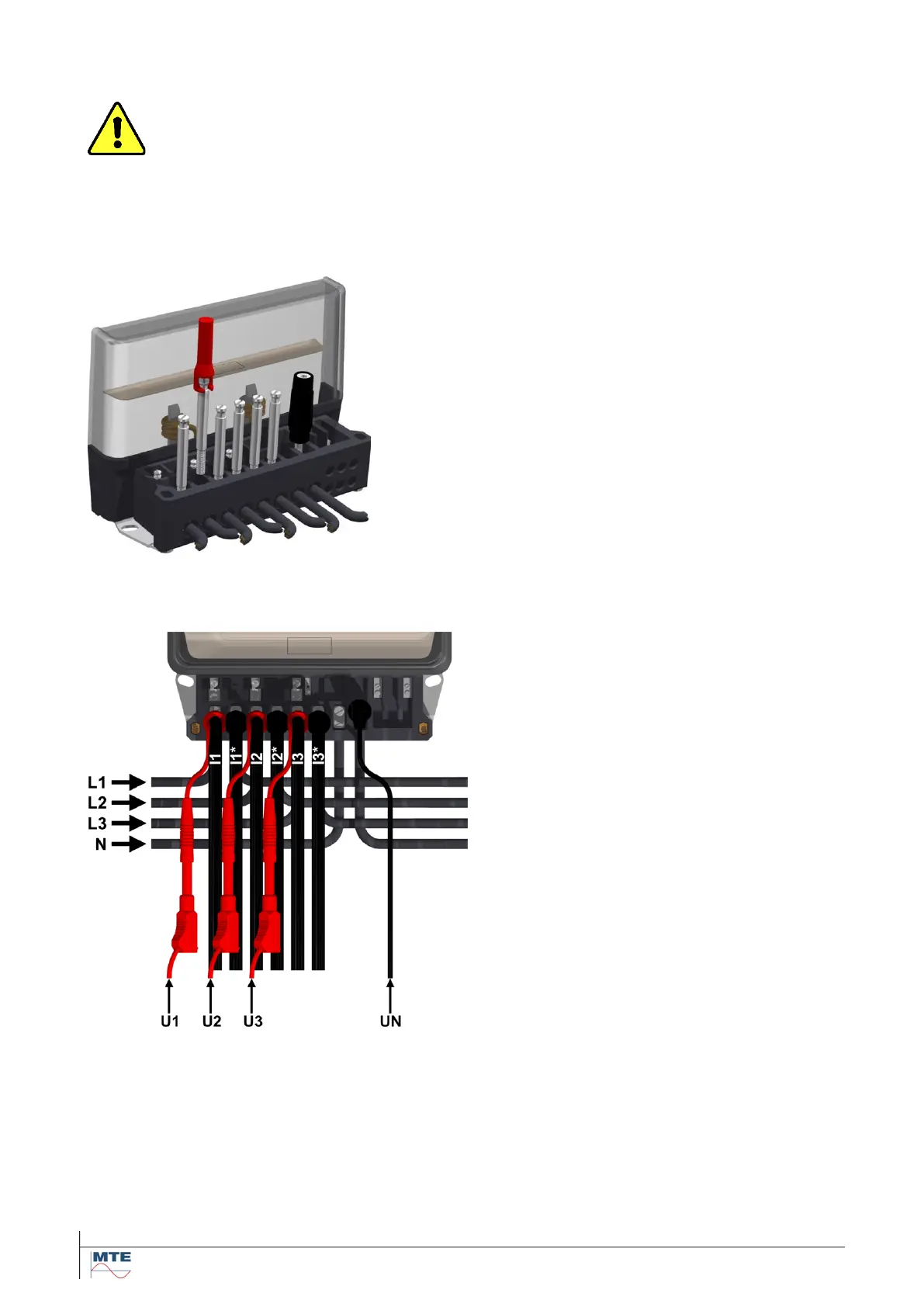

Connections to meter under test (example for IEC-type meter)
Attention! The meter must be disconnected from mains and load during the time the
tests are performed and during the connections to the PTS 400.3 PLUS are made or re-
leased. Switch off mains and load circuit breakers.
Observe local safety regulations.
Adapter pins
Direct connected
4-wire meter
Installed on site
Maximum test current 120 A
Test links closed
For other type of meters (ANSI Form S, Form A; British Standard BS etc.) consult the documentation
delivered by the manufacturer and adapt the connections to the meter regarding your needs.
