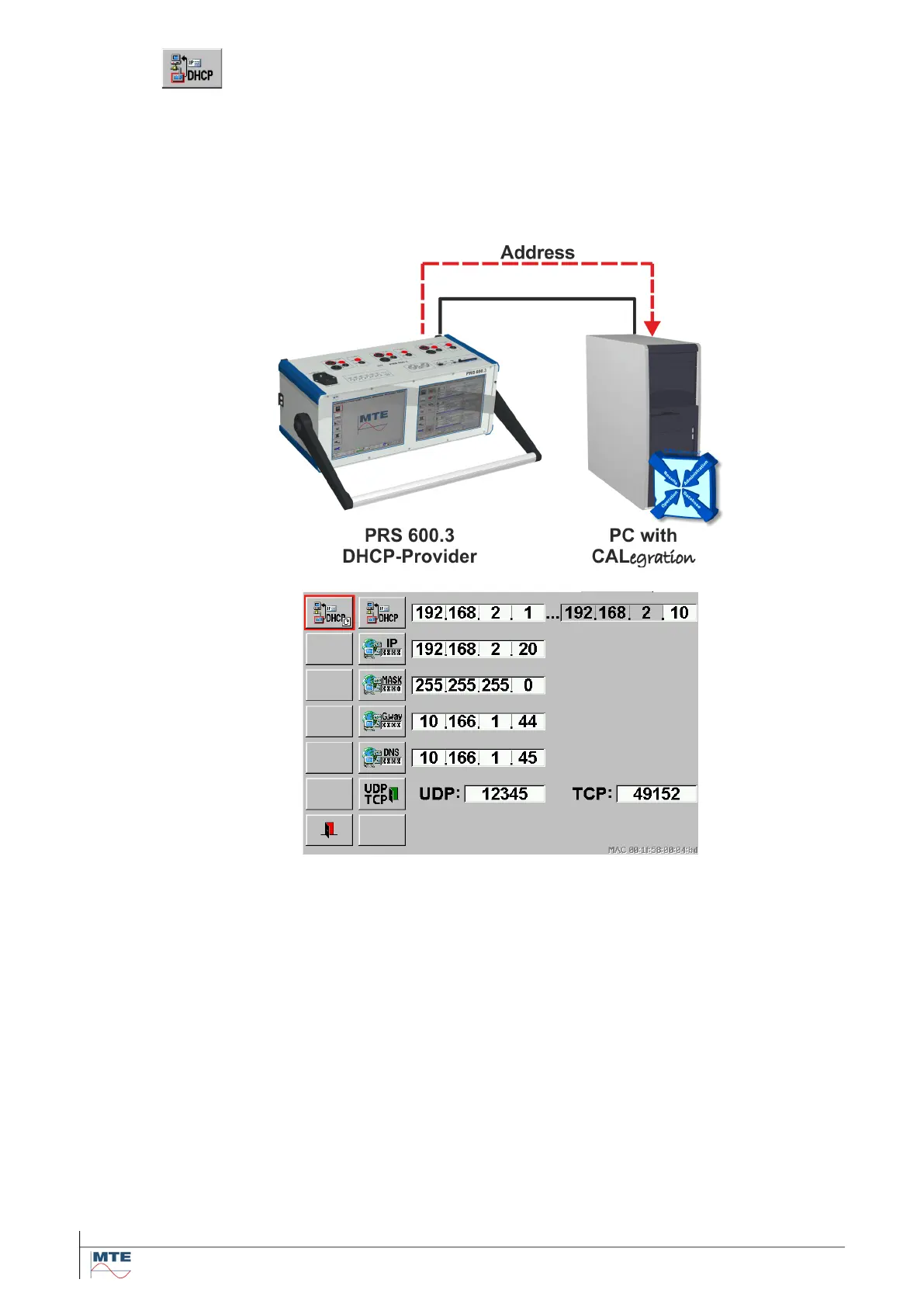

The PRS 600.3 is acting as DHCP Server and provides the IP-address
for a PC/Notebook.
The PRS 600.3 can handle up to 10 addresses. The PRS 600.3’s own ad-
dress, mask and gateway has to be set manually (see below c).
In below example the PRS 600.3's own IP address must be within the
192.168.2.x range, but should be outside of the range which the DHCP
server is providing (192.168.2.1 - 192.168.2.10).
Recommended principle for a point – point communication between PC and
PRS 600.3.
