PTS 400.3 PLUS Operation Manual_R02 Page 90/306

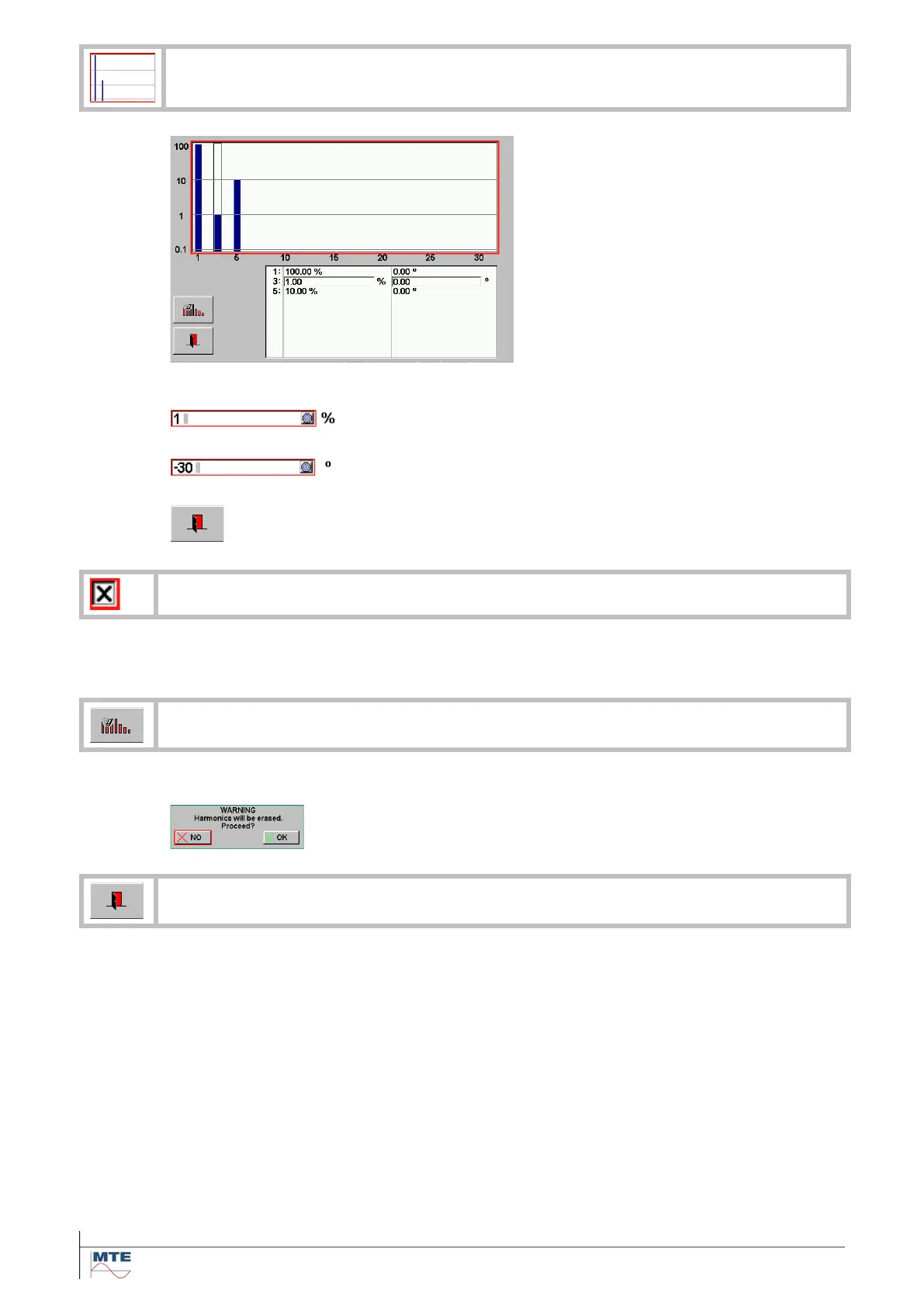

Edit harmonics
• Up to 15 harmonics can be defined
• The sum of all harmonics is limited
to 40%, from 2
nd
...6
th
the maximum
amplitude is 40% and from 7
th
...31
st
10%
• The maximum amplitude is limited
for each harmonic separately
• The phase angle of each harmonic
can be varied
• Selection of 2
nd
...31
st
harmonic
• Reset all harmonics function
• Exit
Range 1%...40%, these values can be
set in steps of 1%.
Angle range -180°...+180°, values can
be set in steps of 10°.
Exit and accept settings, back to calling
menu.
Selection of all 3 phases
The mark in the checkbox indicates that the settings of phase 1 will also be active for
phase 2 and phase 3.
All harmonics will be set to 0%.
Before erasing the harmonic settings, the security question will ap-
pear. Choosing OK will erase the current settings.
Exit and accept settings, back to calling menu.
