Neopost AS-710 - Device Overview; Figure 1: Overview Frontside

16 User Manual Version 3.1
3.3 Device overview
Pos: 28 /Bedienungsanlei tungen/Geräte spezi fisch/Druc ker/AS-710/4.1_Geräteüber sicht_AS-710_ ONLY_619 @ 3\mod_129682097927 7_912.doc @ 29969 @
Pos: 24 /Bedienungsanlei tungen/Geräte spezi fisch/Labeler/ L326/4.1_Geräteüber sicht_L326 @ 0\mod_12 50853155201_6.doc @ 2820 @

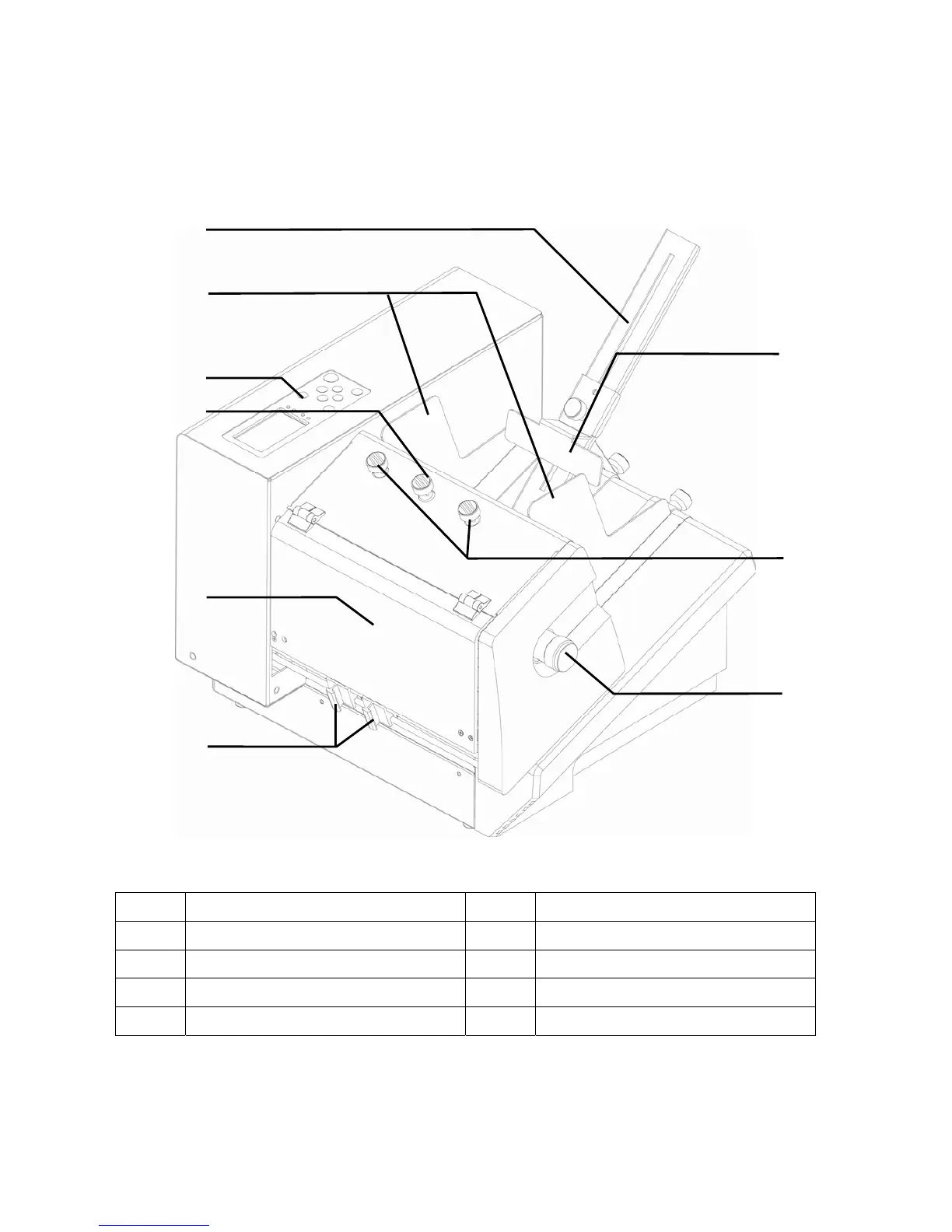

Figure 1: Overview frontside
1 Paper feed ramp 6 Separation adjustment knobs
2 Paper side guides 7 Transparent saftey cover
3 Slide (Runner) 8 Thickness adjustment knob
4 Operator panel with display 9 Movable exit rollers
5 Separation lock knob
