Neopost AS-710 - Figure 4: Mounting I; How to Mount the Paper Feed Ramp and the Side Guides

20 User Manual Version 3.1
3.4.2 How to mount the paper feed ramp and the side guides
• Mount the narrow paper side guide (inside) (1). Then mount the paper feed ramp (2)
and either the narrow paper side guide (outside) (3) or the large (outside) one (not
shown in Figure 4).

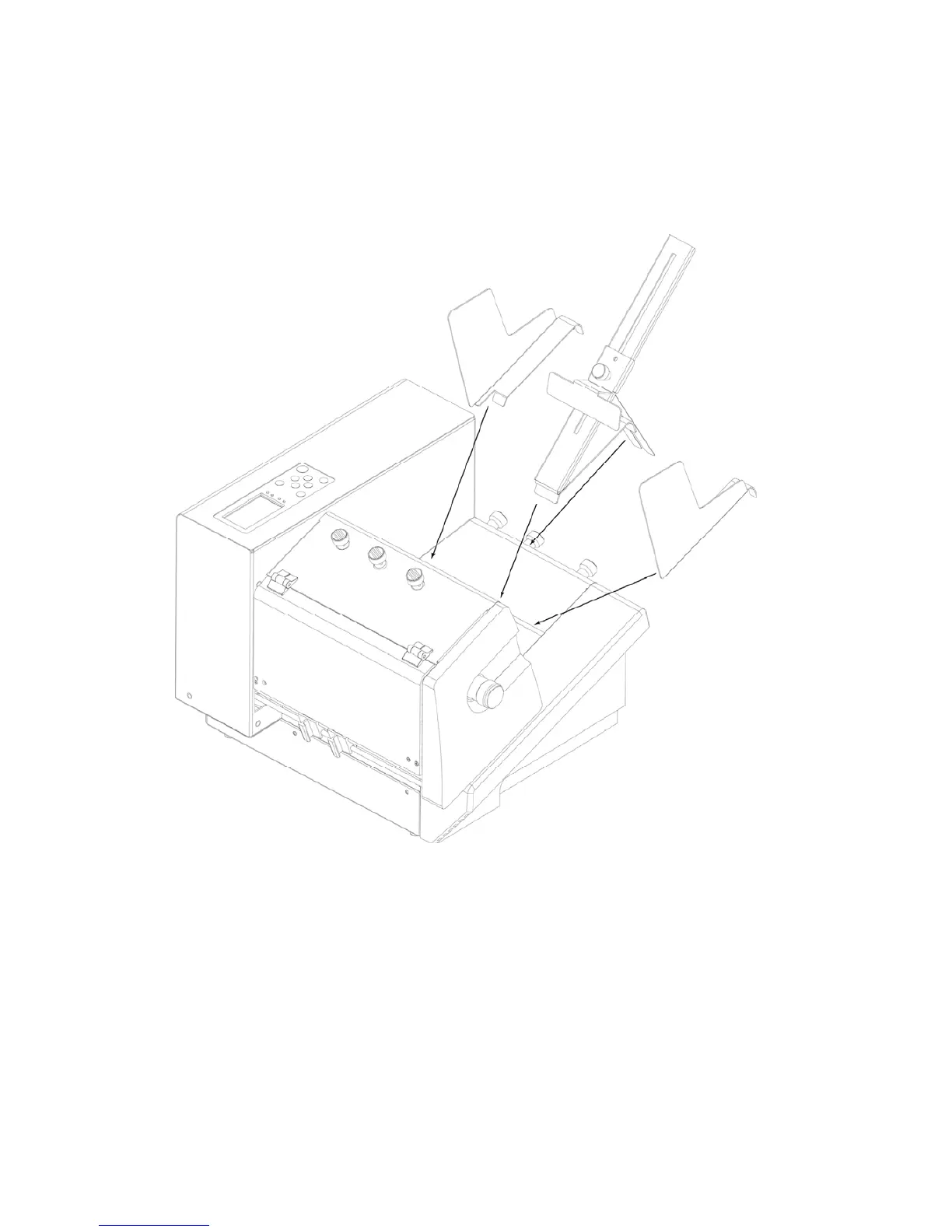

Figure 4: Mounting I
• To mount a paper side guide or the paper feed ramp, place the front bracket (A) into
the slot of the contact plate and place the rear part (B) over a fixing screw. Then lock
the fixing screw (see Figure 5).
1
2
3
