Adjust Print Head
The device will print a special test pattern that shows the correct vertical alignment of the
print swathes. This is just for test purposes, adjustments can be made in the menu
PRINTER CONFIG. > ADJUSTMENTS > ADJUSTMENT GAP

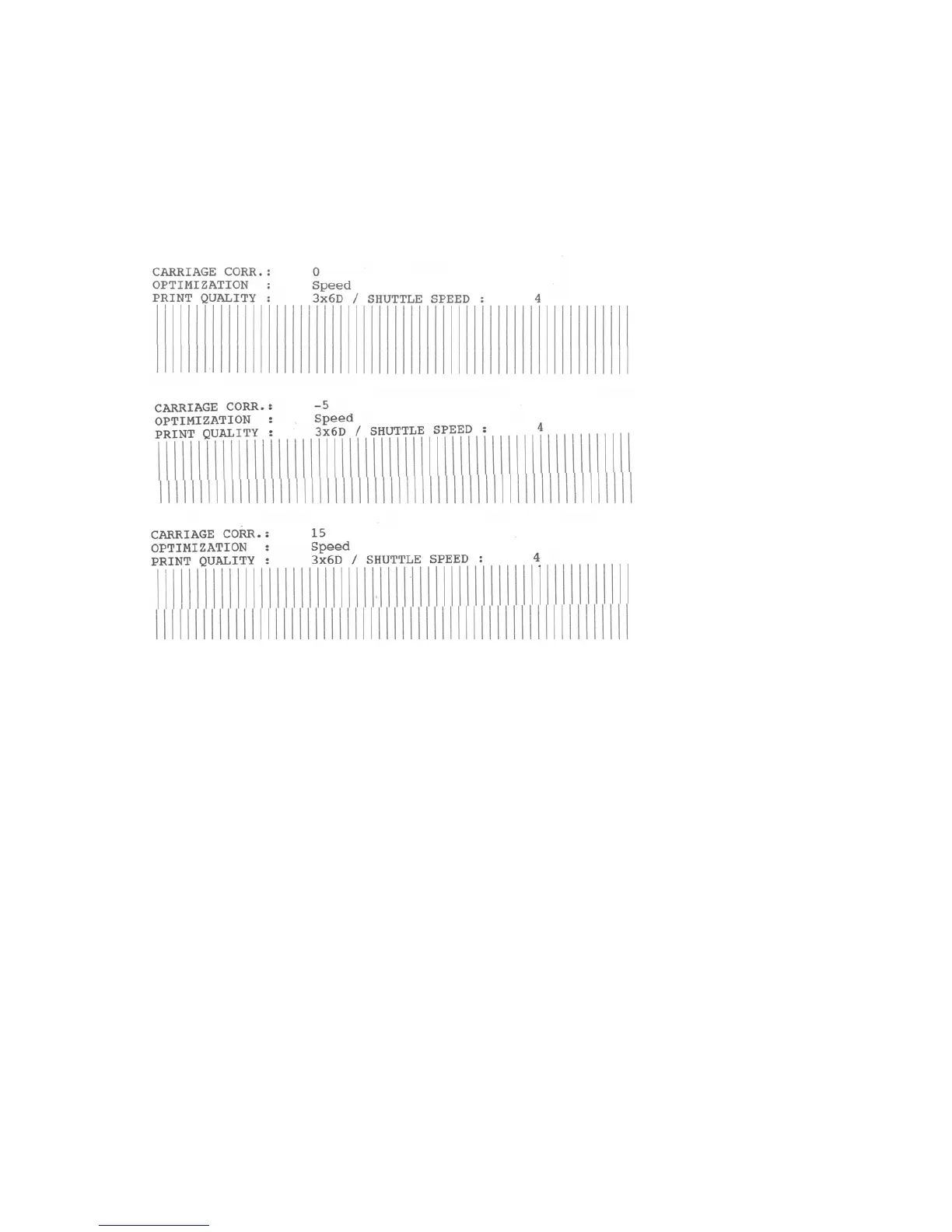

Figure 25: Adjust Print Head sample printouts
