S350 Series 24-Port (PoE+) and 48-Port Gigabit Ethernet Smart Managed Pro Switches
Configure Switching User Manual120

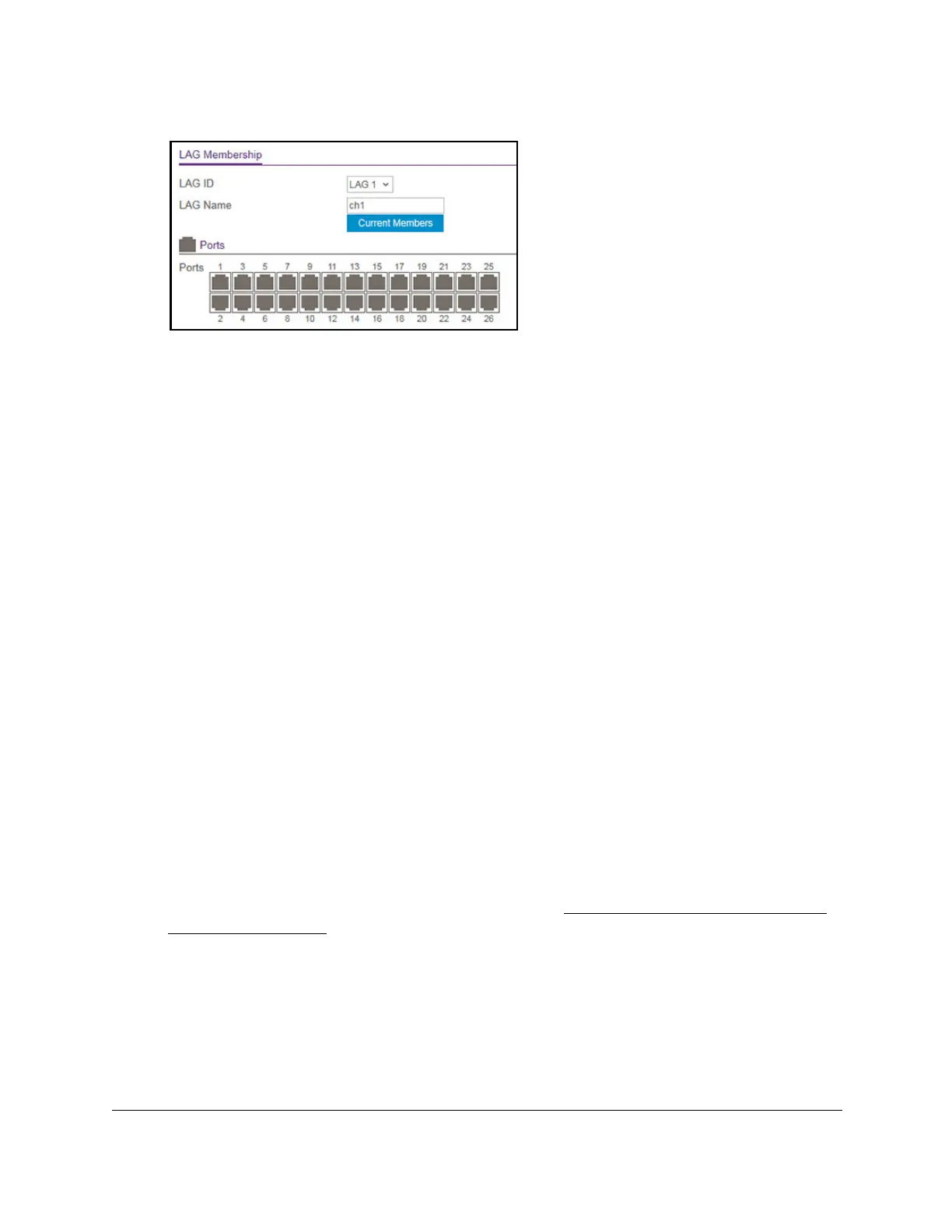

The previous figure shows the LAG Membership page for models GS324T and GS324TP.
6. From the LAG ID menu, select the LAG ID.
7. In the LAG Name field, enter the name to be assigned to the LAG.
You can enter any string of up to 15 alphanumeric characters. You can also use the
default name.
8. In the Ports table,
click each port that you want to include as a member of the selected
LAG.
A selected port is displayed by a check mark.
9. Click the Apply button.
Y
our settings are saved.
Set the LACP System Priority
You can set the LACP system priority that applies to all LAGs on the switch.
To configure LACP:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired connection to connect your computer to the network, or
connect directly to a switch that is off-network using an Ethernet cable.
2. Launch a web browser.
3. In the address field of your web browser, enter the IP address of the switch.
If you do not know the IP address of the switch, see
Discover or Change the Switch IP
Address on page 12.
The login window opens.
4. Enter the switch’s password in the Password field.
The default password is
password.
The System Information page displays.
5. Select Switching> LAG >
Advanced > LACP Configuration.
