NETGEAR GS324T User Manual

S350 Series 24-Port (PoE+) and 48-Port Gigabit Ethernet Smart Managed Pro Switches
Configure Switching User Manual122

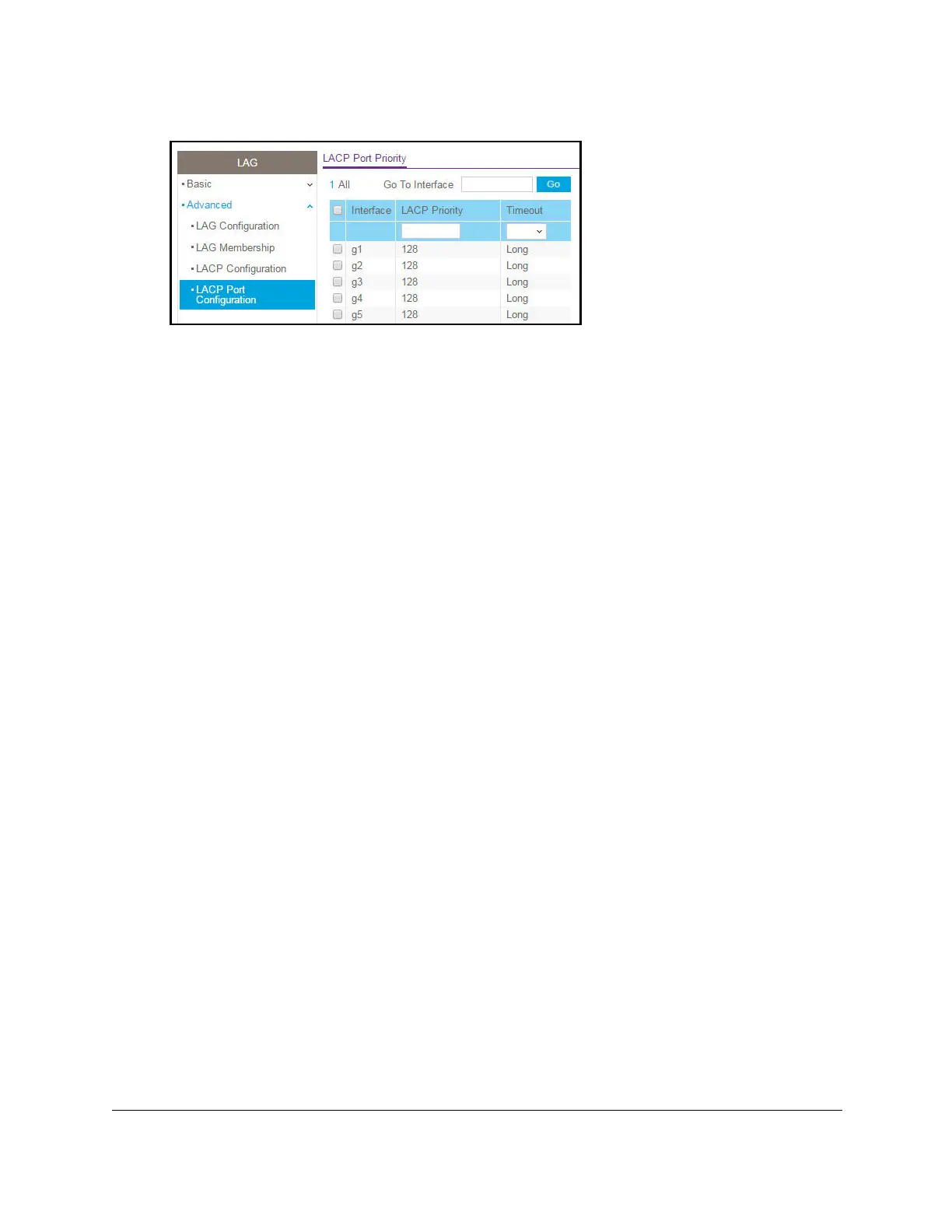

6. Select one or more interfaces by taking one of the following actions:
• To configure a single interface, select the check box associated with the interface, or
type the interface number in the Go T
o Interface field and click the Go button.
• To configure multiple interfaces with the same settings, select the check box
associated with each interface.
• To configure all interfaces with the same settings, select the check box in the heading
row
.
7. In the
LACP Priority field, specify the LACP priority value for the selected interfaces.
This value specifies the interface’s link aggregation priority relative to the devices at the
other ends of the links on which link aggregation is enabled. A higher value indicates a
lower priority.
The range is 1 to 65535. The default value is 128.
8. In the Timeout field, configure the administrative LACP time-out value:
• Long. Specifies a long time-out value.
•
Short. Specifies a short time-out value.
9. Click the Apply button.
Your settings are saved.
Configure VLANs
Adding virtual LAN (VLAN) support to a Layer 2 switch offers some of the benefits of both
bridging and routing. Like a bridge, a VLAN switch forwards traffic based on the Layer 2
header, which is fast, and like a router, it partitions the network into logical segments, which
provides better administration, security, and management of multicast traffic.
By default, all ports on the switch are in the same broadcast domain. VLANs electronically
separate ports on the same switch into separate broadcast domains so that broadcast
packets are not sent to all the ports on a single switch. When you use a VLAN, users can be
grouped by logical function instead of physical location.
Each VLAN in a network is assigned an associated VLAN ID, which appears in the IEEE
802.1Q tag in the Layer 2 header of packets transmitted on a VLAN.
An end station can omit
the tag, or the VLAN portion of the tag, in which case the first switch port to receive the
packet can either reject it or insert a tag using its default VLAN ID. A port can handle traf
fic for
more than one VLAN, but it can support only one default VLAN ID.

NETGEAR GS324T Specifications

General

Switch type	Managed
Switch layer	L2/L3/L4
ARP inspection	Yes
Master (outer) case width	270 mm
Master (outer) case height	271 mm
Master (outer) case length	481 mm
Master (outer) case weight	8850 g
Harmonized System (HS) code	85176990
Quantity per master (outer) case	3 pc(s)
Package type	Box
Package depth	465 mm
Package width	229 mm
Package height	79 mm
Package weight	2710 g
Cables included	AC
Stackable	-
Product color	Black
Input current	5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	13.5 W
Operating temperature (T-T)	0 - 40 °C
MAC address table	16000 entries
Power connector	AC-in jack
SFP module slots quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3az, IEEE 802.3x
Virtual LAN features	Private VLAN, Voice VLAN, Port-based VLAN
DHCP features	DHCP client

Weight and Dimensions

Depth	169 mm
Width	328 mm
Height	43 mm
Weight	1620 g
