S350 Series 24-Port (PoE+) and 48-Port Gigabit Ethernet Smart Managed Pro Switches
Configure Switching User Manual134
The default password is password.
The System Information page displays.

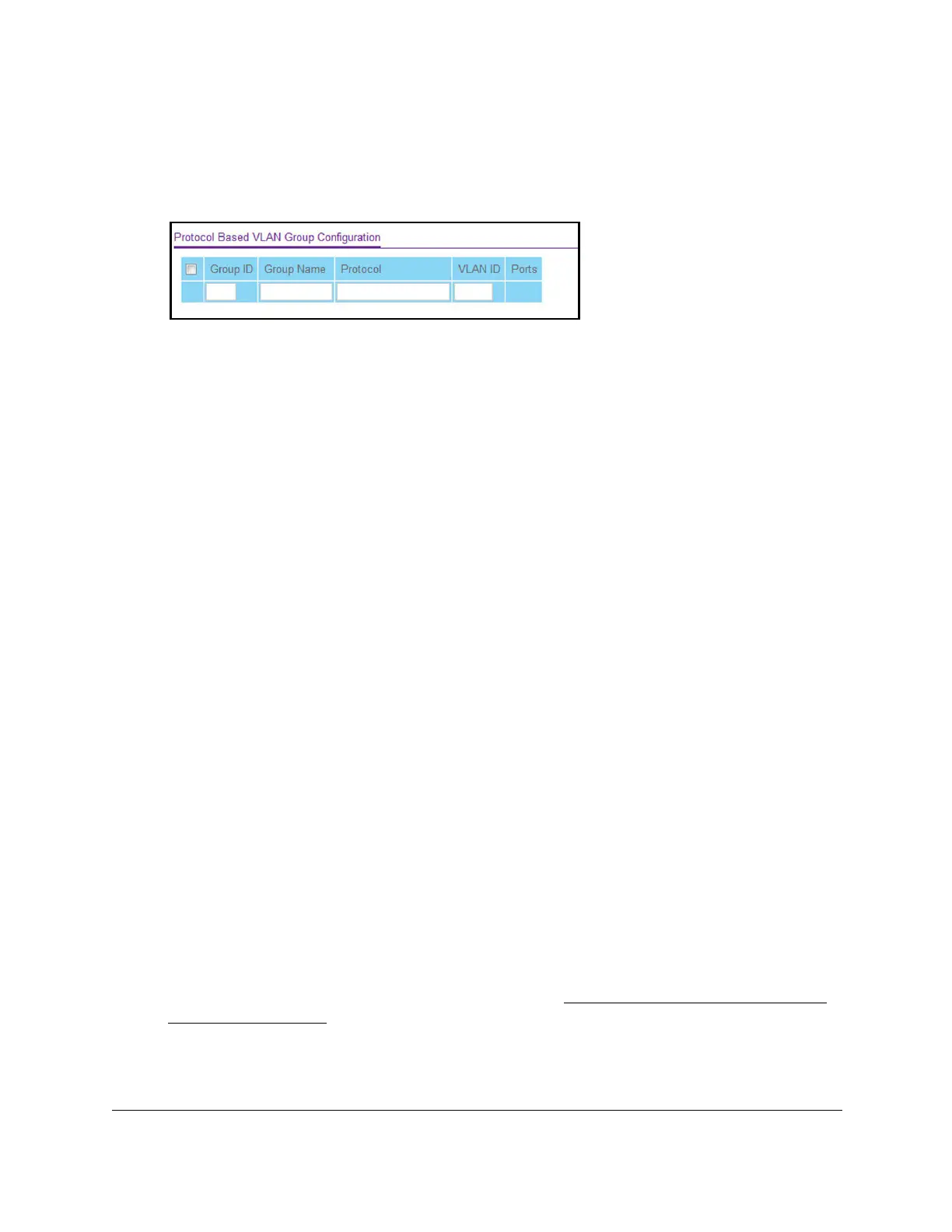

5. Select Switching> VLAN > Advanced > Protocol Based VLAN Group Configuration.
6. In the Group ID field, enter a number to identify the group.
The number must be in the range from 1 to 128.
7. In the Group Name field, enter a name for the new group.
You can enter up to 16 characters.
8. In the Protocol field, enter one or more protocols that must be associated with the group.
You can enter keywords such as arp, ip, and ipx. Separate keywords with a comma. Y
ou
can also enter hexadecimal or decimal values in the range from 0x0600 (1536) to 0xFFFF
(65535).
9. In the VLAN ID field, enter the VLAN ID.
The ID can be any number in the range from 2 to 4093, excluding 4089. All the ports in
the group assign this VLAN ID to untagged packets received for the protocols that you
included in this group.
10. Click the Add button.
The protocol-based VLAN group is added to the switch.
The Ports field displays all the member ports that belong to the group.
Configure Protocol-Based VLAN Group Membership
To configure protocol-based VLAN group membership:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired connection to connect your computer to the network, or
connect directly to a switch that is off-network using an Ethernet cable.
2. Launch a web browser.
3. In the address field of your web browser, enter the IP address of the switch.
If you do not know the IP address of the switch, see
Discover or Change the Switch IP
Address on page 12.
The login window opens.
4. Enter the switch’s password in the Password field.
To Next Page
