S350 Series 24-Port (PoE+) and 48-Port Gigabit Ethernet Smart Managed Pro Switches
Configure Quality of Service User Manual201
The System Information page displays.
5. Select QoS > DiffServ > Advanced > Policy Configuration.
The Policy Configuration page displays.
6. Enter a policy name in the
Policy Name field.
You cannot specify the policy type. By default, the policy type is In, indicating that the
policy applies to ingress packets.
7. From the Member Class menu, optionally select an existing class that you want to
associate with the new policy
.
8. Click the Add button.
The new policy is added.
9. After creating the policy
, click the policy name.
The policy name is a hyperlink to the page on which you can define the policy attributes.

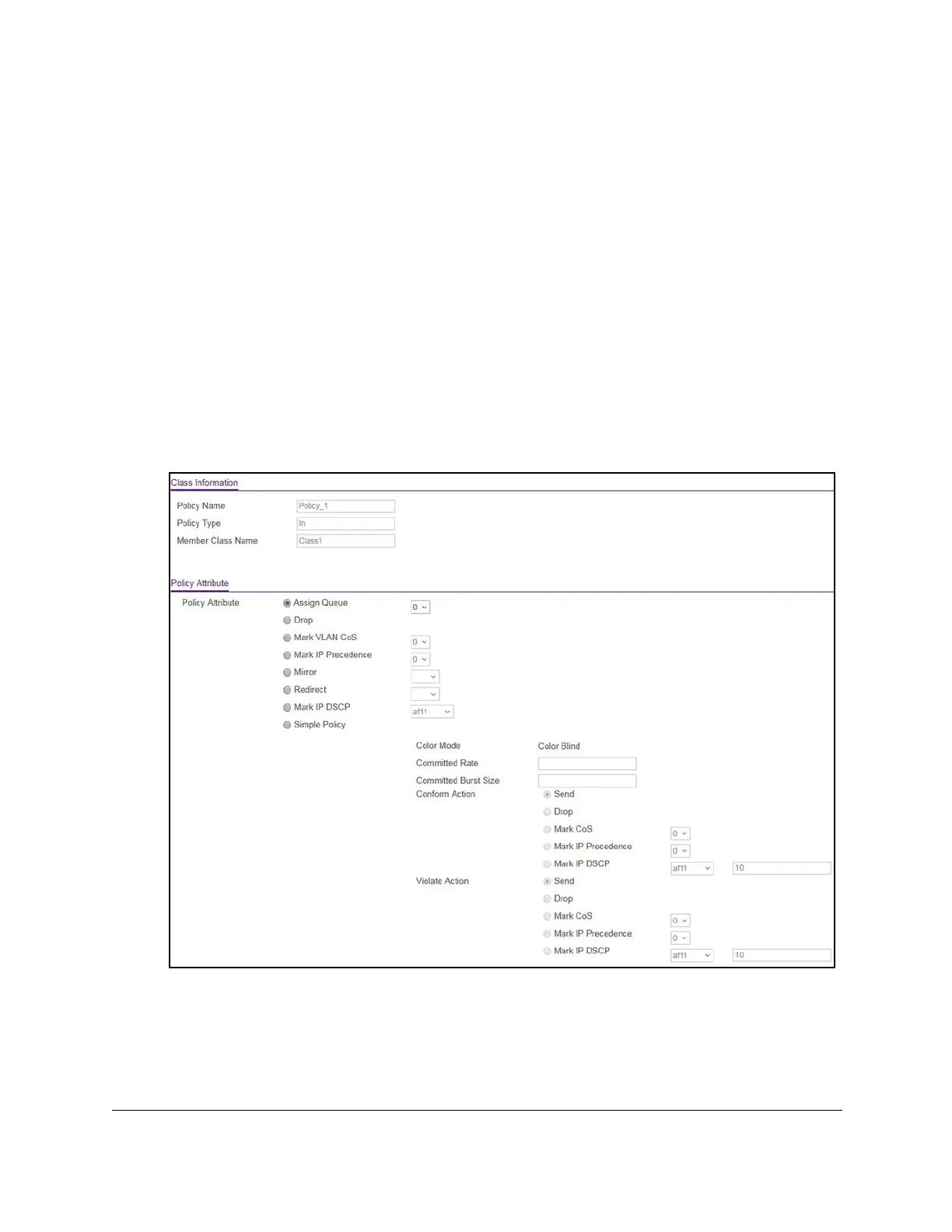

10. Configure the policy attributes by selecting one of the following radio buttons:
• Assign Queue. Select this radio button to specify that traffic must be assigned to a
queue, which you must select from the menu. Models GS324T and GS324TP support
four hardware queues (0 to 3) and model GS348T supports eight hardware queues
(0 to 7).
