Oce PlotWave 340 User Manual

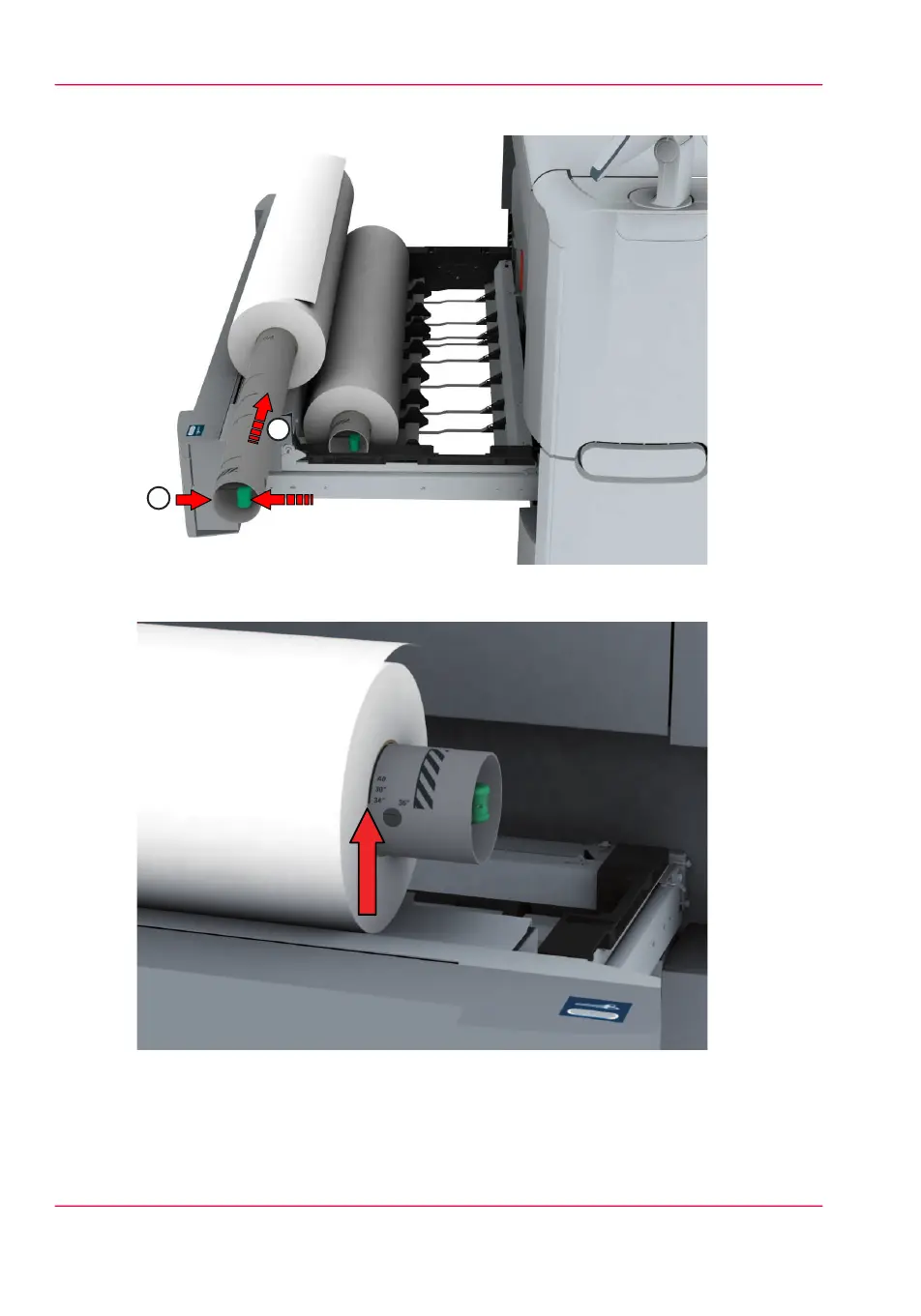

Slide (2) the roll holder into the right side of the core of the new media roll.
1
2
4.
Align the roll with the centre of the correct size indicator on the roll holder and release
the handle of the locking mechanism.
Chapter 5 - Maintain the Printing System300
Load a media roll (position 1)

Oce PlotWave 340 Specifications

General

Print Resolution	600 x 1200 dpi
Maximum Roll Width	36 inches
Memory	2 GB
Hard Drive	500 GB
Maximum Print Length	Unlimited
Maximum Print Width	36 inches
Media Handling	Roll feed
Connectivity	Ethernet 10/100/1000Base-T
Media Width	297 - 914 mm
Media Types	Recycled
Media Thickness	0.07 - 0.3 mm
Operating Systems Supported	Windows, Linux
