Oce PlotWave 340 User Manual

Print a demo print
When to do
You can print a demo print to check if the printer works correctly.
How to print a demo print
On the multi-touch user panel:
1.
Tap the 'System' thumbnail. A window opens.
2.

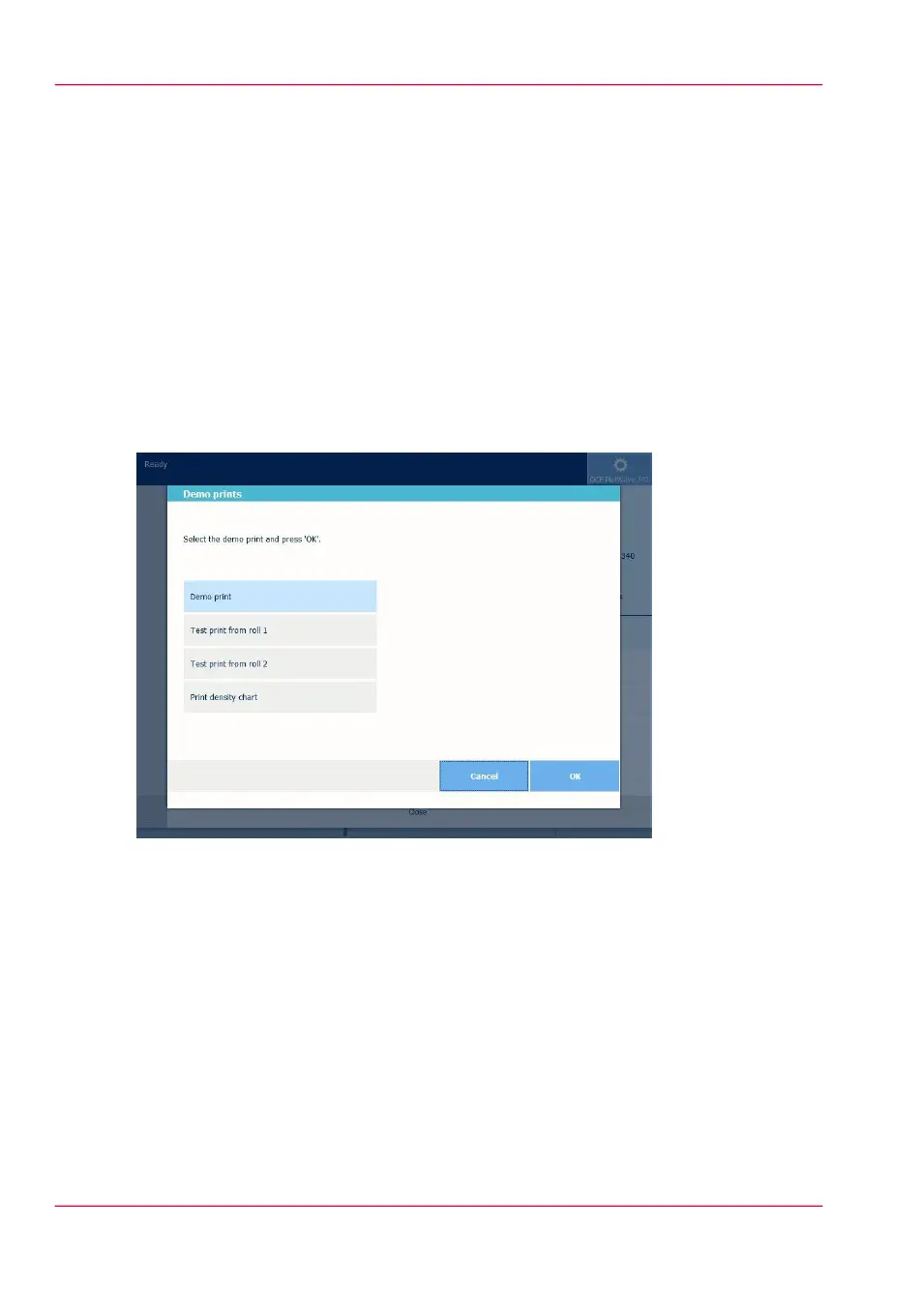

In the 'Setup' list in the bottom right corner of the display, select 'Test prints'. A wizard
opens.
3.
Select 'Demo print'.
4.
Tap Ok.
A demo print is printed.
Chapter 8 - Support356
Print a demo print

Oce PlotWave 340 Specifications

General

Print Resolution	600 x 1200 dpi
Maximum Roll Width	36 inches
Memory	2 GB
Hard Drive	500 GB
Maximum Print Length	Unlimited
Maximum Print Width	36 inches
Media Handling	Roll feed
Connectivity	Ethernet 10/100/1000Base-T
Media Width	297 - 914 mm
Media Types	Recycled
Media Thickness	0.07 - 0.3 mm
Operating Systems Supported	Windows, Linux
