Oce PlotWave 340 User Manual

Print a test print
When to do
Print a test print from roll 1 or 2 at the request of the Océ Helpdesk. The test print pro-
vides information that can help to solve quality problems.
How to print a test print
On the multi-touch user panel:
1.

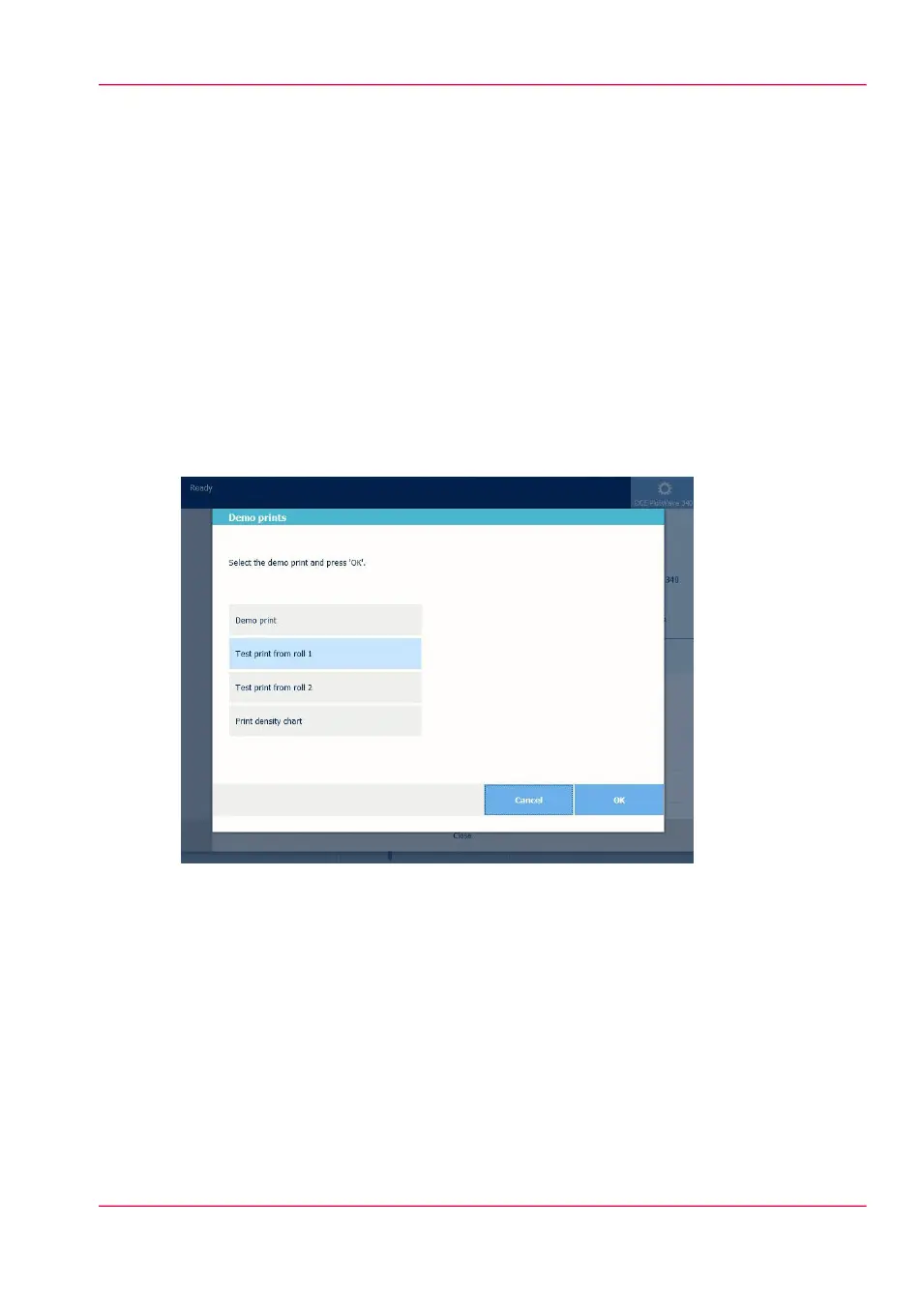

Tap the 'System' thumbnail. A window opens.
2.
In the 'Setup' list in the bottom right corner of the display, select 'Test prints'. A wizard
opens.
3.
Select 'Test print from roll 1' or 'Test print from roll 2'.
4.
Tap Ok.
A test print is printed.
Chapter 8 - Support 357
Print a test print

Oce PlotWave 340 Specifications

General

Print Resolution	600 x 1200 dpi
Maximum Roll Width	36 inches
Memory	2 GB
Hard Drive	500 GB
Maximum Print Length	Unlimited
Maximum Print Width	36 inches
Media Handling	Roll feed
Connectivity	Ethernet 10/100/1000Base-T
Media Width	297 - 914 mm
Media Types	Recycled
Media Thickness	0.07 - 0.3 mm
Operating Systems Supported	Windows, Linux
