Oce PlotWave 340 User Manual

Clear a media jam in the roll feed section
When a media jam in the roll feed section occurs, take the following steps:
1.

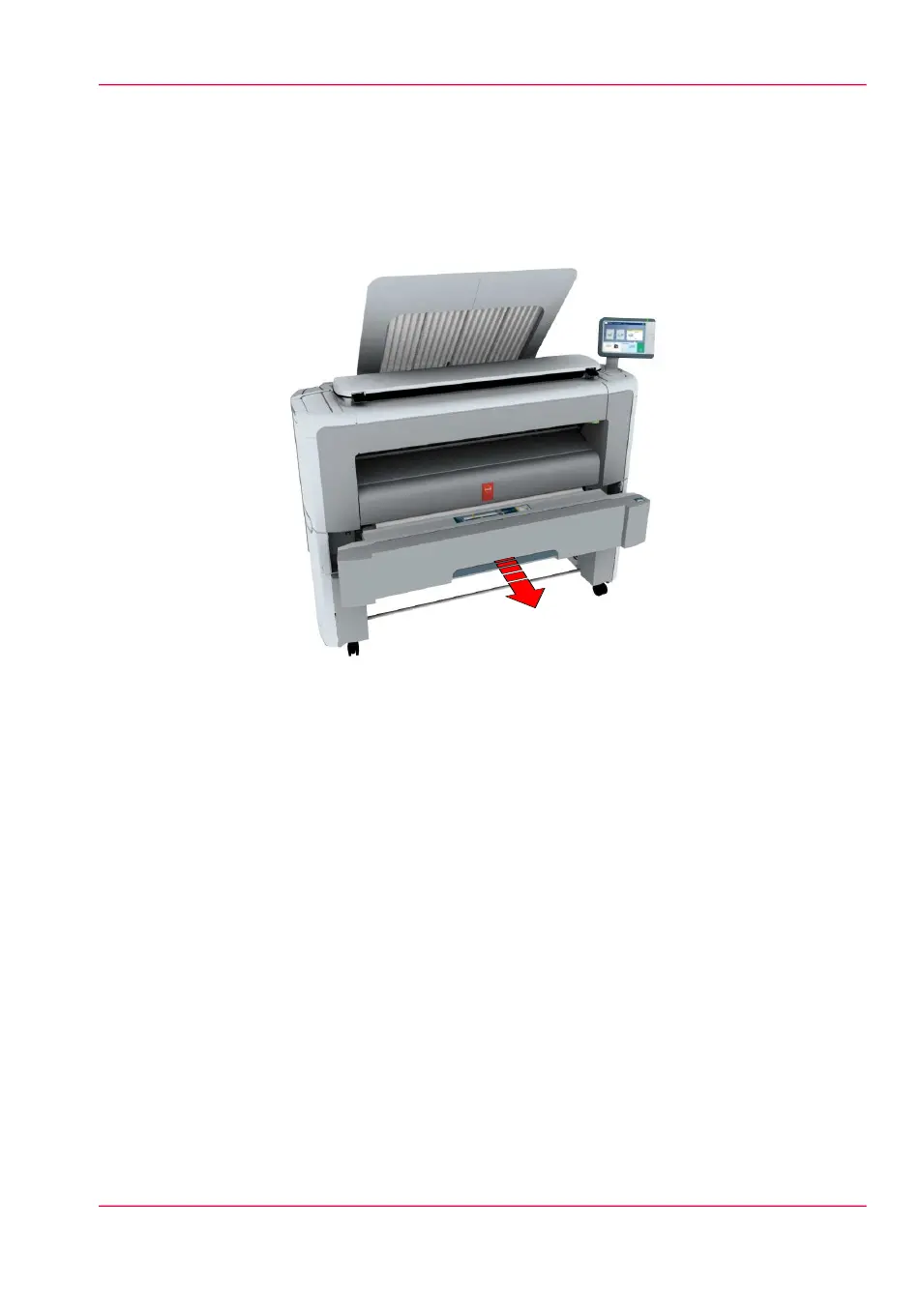

Firmly pull the media drawer to open it.
2.
Remove any jammed printing material from the paper path and, if necessary, pull back
the media and rewind it.
3.
Reload the media roll if necessary, and press the clean cut button to trim a strip of the
media roll.
4.
Close the media drawer.
Chapter 8 - Support 355
Clear a media jam in the roll feed section

Oce PlotWave 340 Specifications

General

Print Resolution	600 x 1200 dpi
Maximum Roll Width	36 inches
Memory	2 GB
Hard Drive	500 GB
Maximum Print Length	Unlimited
Maximum Print Width	36 inches
Media Handling	Roll feed
Connectivity	Ethernet 10/100/1000Base-T
Media Width	297 - 914 mm
Media Types	Recycled
Media Thickness	0.07 - 0.3 mm
Operating Systems Supported	Windows, Linux
