Oce PlotWave 340 User Manual

7.

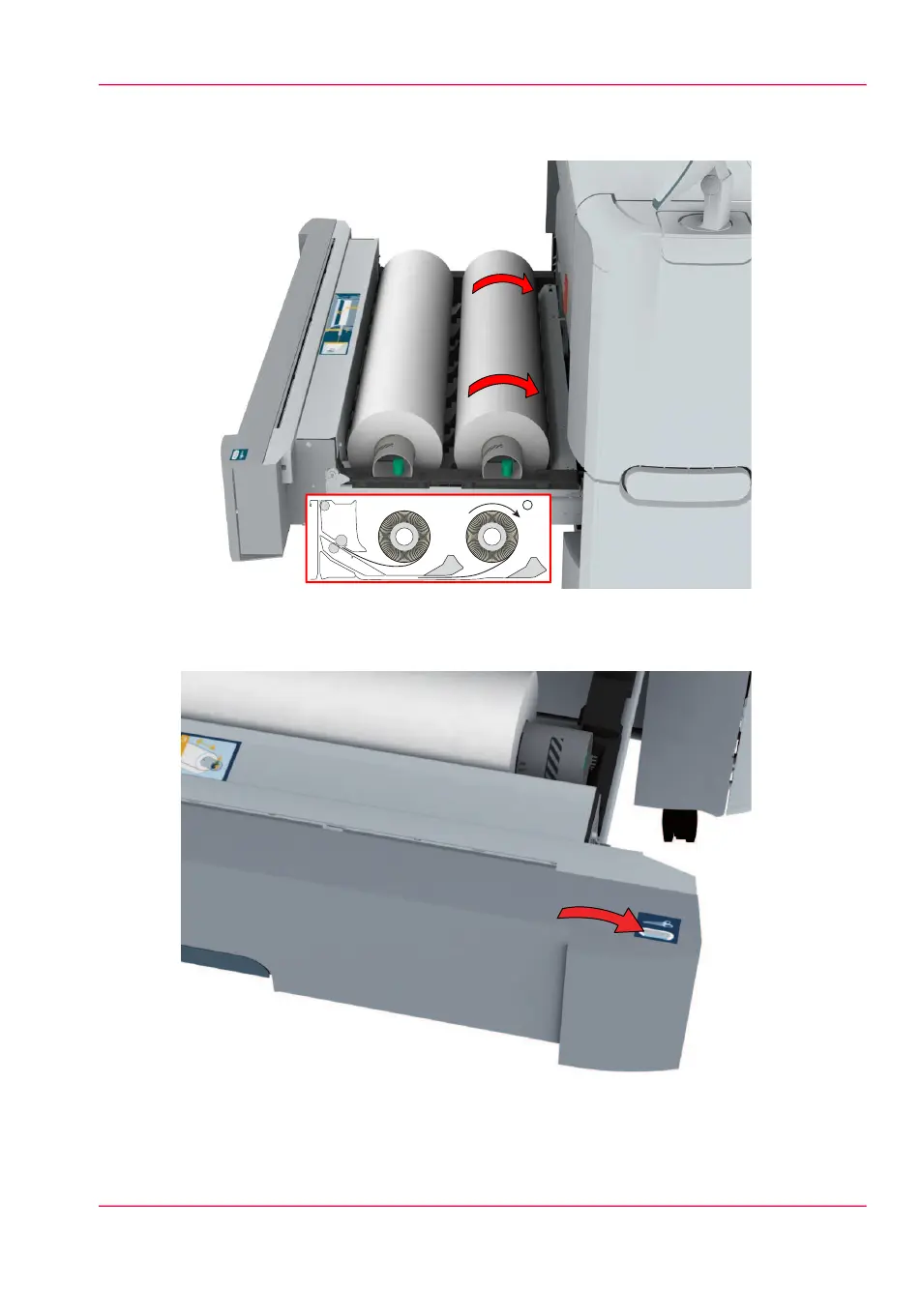

Use both hands to slide the media under the metal paper guide (2) until the media is
transported automatically.
2
8.
If necessary, press the clean cut button to trim a strip of the new media roll. Press once
for a strip of approximately 20 cm, or hold the button and release it when the strip has
the desired length.
9.
Close the media drawer.
Chapter 5 - Maintain the Printing System 307
Load a media roll (position 2)

Oce PlotWave 340 Specifications

General

Print Resolution	600 x 1200 dpi
Maximum Roll Width	36 inches
Memory	2 GB
Hard Drive	500 GB
Maximum Print Length	Unlimited
Maximum Print Width	36 inches
Media Handling	Roll feed
Connectivity	Ethernet 10/100/1000Base-T
Media Width	297 - 914 mm
Media Types	Recycled
Media Thickness	0.07 - 0.3 mm
Operating Systems Supported	Windows, Linux
