Oce PlotWave 340 User Manual

4.

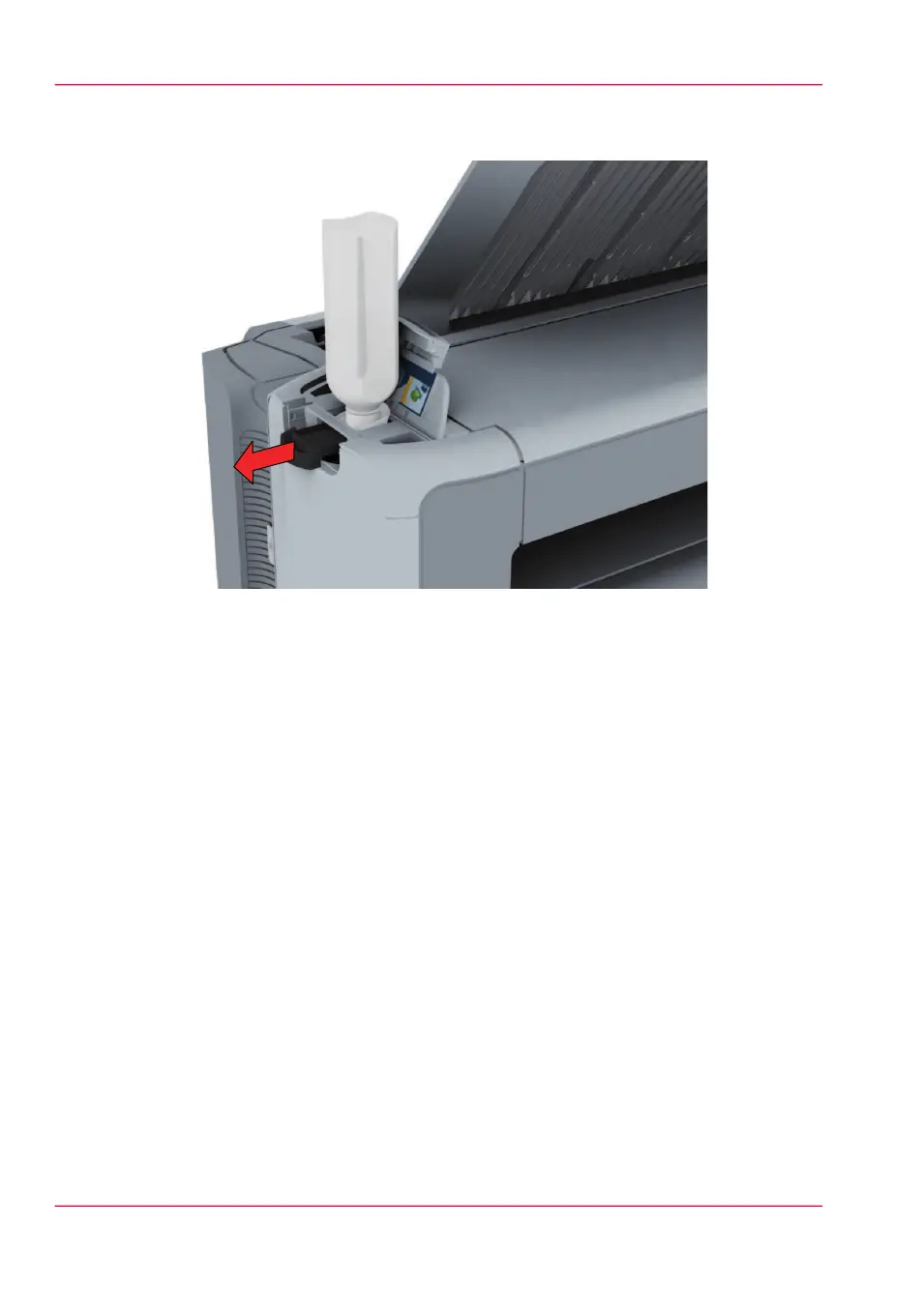

Pull the slider towards you to open both the bottle and the refill opening of the toner
unit.
5.
Tap the toner bottle gently (sideways), to let the toner flow from the bottle.
6.
When the toner bottle is empty, return the slider of the toner unit to the original position
to close the refill opening and the toner bottle. You can now remove the toner bottle
from the opening.
Chapter 5 - Maintain the Printing System312
Refill the toner

Oce PlotWave 340 Specifications

General

Print Resolution	600 x 1200 dpi
Maximum Roll Width	36 inches
Memory	2 GB
Hard Drive	500 GB
Maximum Print Length	Unlimited
Maximum Print Width	36 inches
Media Handling	Roll feed
Connectivity	Ethernet 10/100/1000Base-T
Media Width	297 - 914 mm
Media Types	Recycled
Media Thickness	0.07 - 0.3 mm
Operating Systems Supported	Windows, Linux
