Connecting to the PC after preparing the device
- 29 -
3

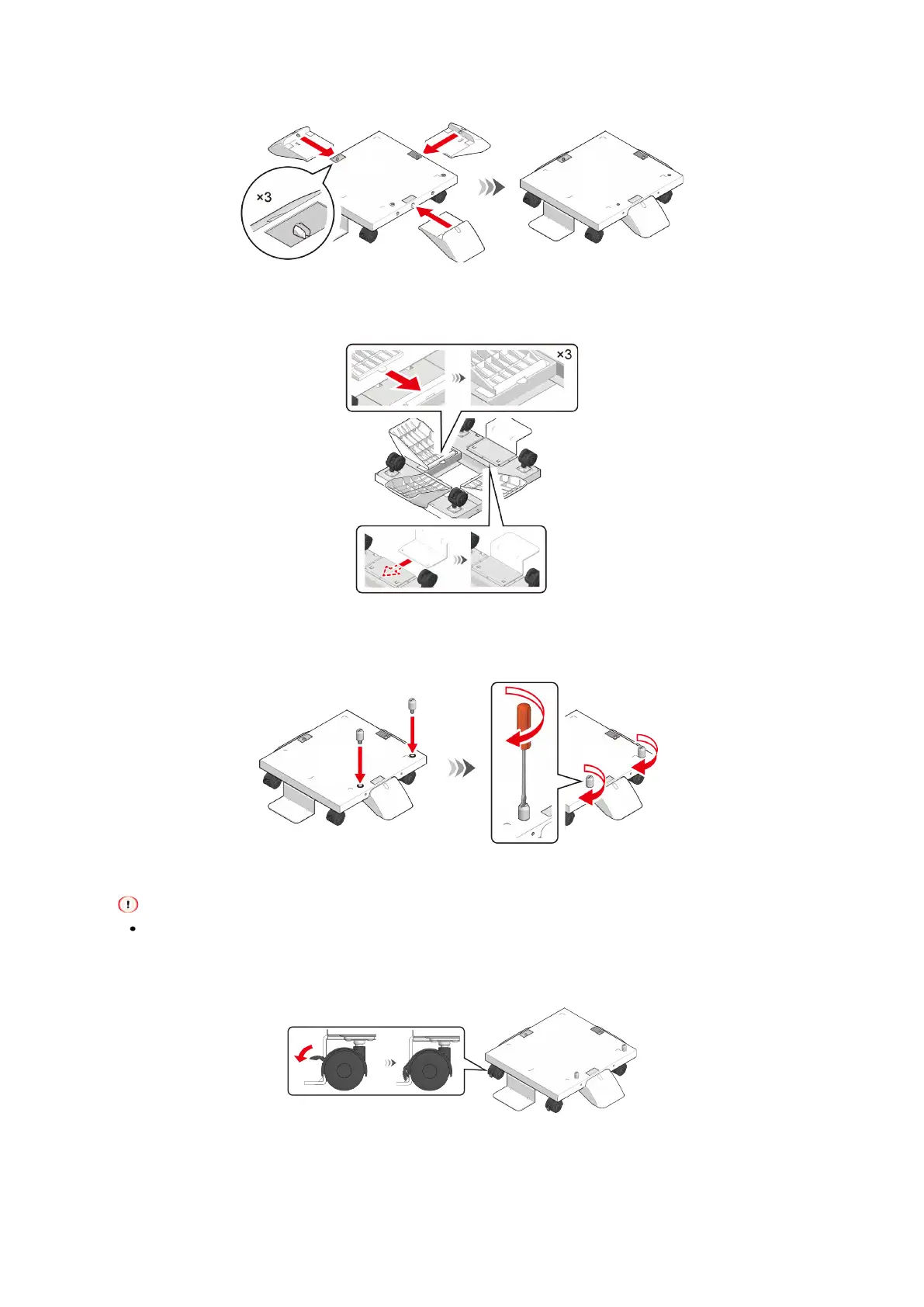

Then, mount the anti-tip foot b (x 3) to both sides and the back.
4
Check that the anti-tip foot a and the anti-tip foot b (x 3) are inserted in place by turning the
dedicated caster stand upside down.
5
Turn the dedicated caster stand back and mount the positioning pin (x 2). Rotate to fix the
positioning pin (x 2) with a flat-head screwdriver.
6
Turn off this machine and remove the power cord and all cables.
Installation with a cable connected may cause you to get caught in the cable and get injured.
7
Lock the caster (2 places) to prevent the dedicated caster from moving during the installation of
the main unit and the expansion tray.
To Next Page
