10 CPU Unit Functions
10-62
CJ2 CPU Unit Software User’s Manual

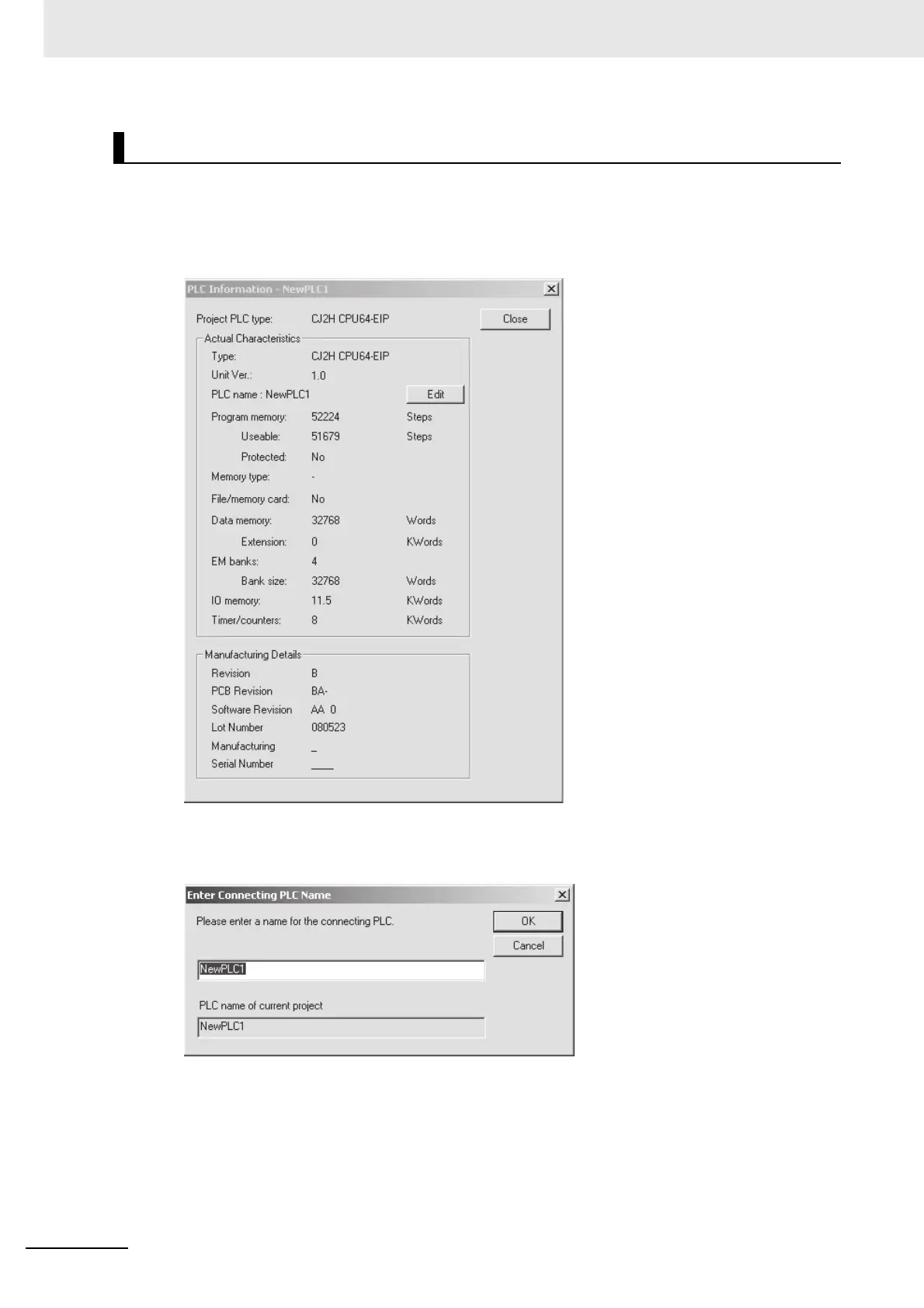

Use the following procedure to change the PLC name saved in a CJ2 CPU Unit.
1 Connect online with the CX-Programmer, and select Edit
−
Information from the PLC Menu.
The following dialog box will be displayed.
2 Click the Edit Button to the right of the PLC Name Area.
The following Enter Connecting PLC Name Dialog Box will be displayed.
3 Enter the PLC name to register to the connection target PLC, and then click the OK Button.
Changing PLC Names
To Next Page
