1-1-2 CJ2 CPU Unit Features
With the CJ2M CPU Units, up to two Pulse I/O Modules can be mounted. This enables input functions,
such as general-purpose inputs, interrupt inputs, high-speed counter inputs, and quick-response inputs,
and output functions, such as general-purpose outputs, pulse outputs, and variable duty factor pulse
outputs. This provides support for many different types of applications.

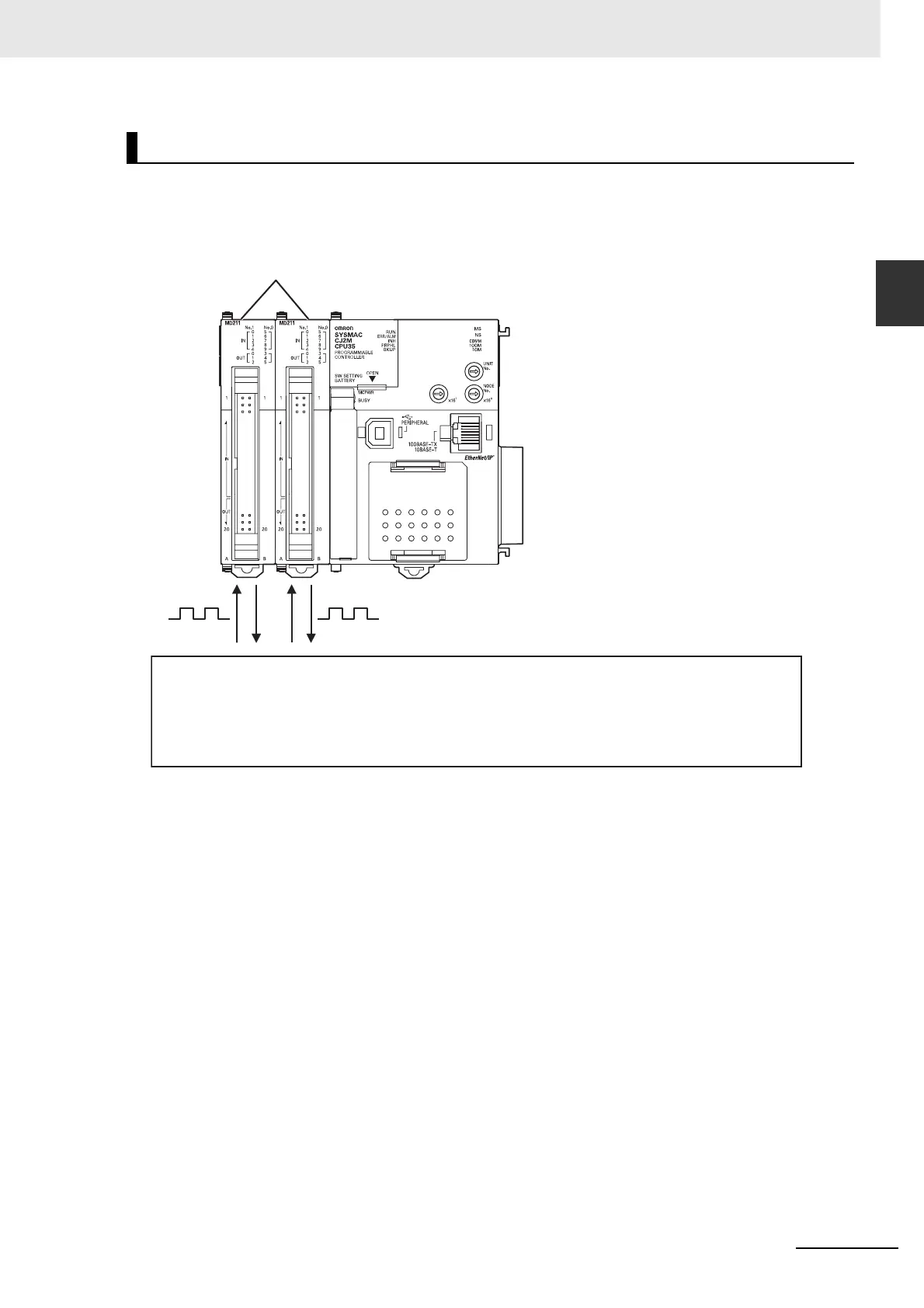

Use Pulse I/O and Interrupt Inputs (CJ2M CPU Units Only)
Pulse I/O Module
•
Normal inputs: 20 (10 per Pulse I/O Module)
•
Interrupt inputs: 8 (4 per Pulse I/O Module)
•
High-speed counter inputs: 4 (2 per Pulse I/O Module)
•
Quick-response inputs: 8 (4 per Pulse I/O Module)
•
Normal outputs: 12 (6 per Pulse I/O Module)
•
Pulse outputs: 4 (2 per Pulse I/O Module)
•
Variable duty factor pulse outputs: 4
(2 per Pulse I/O Module)
