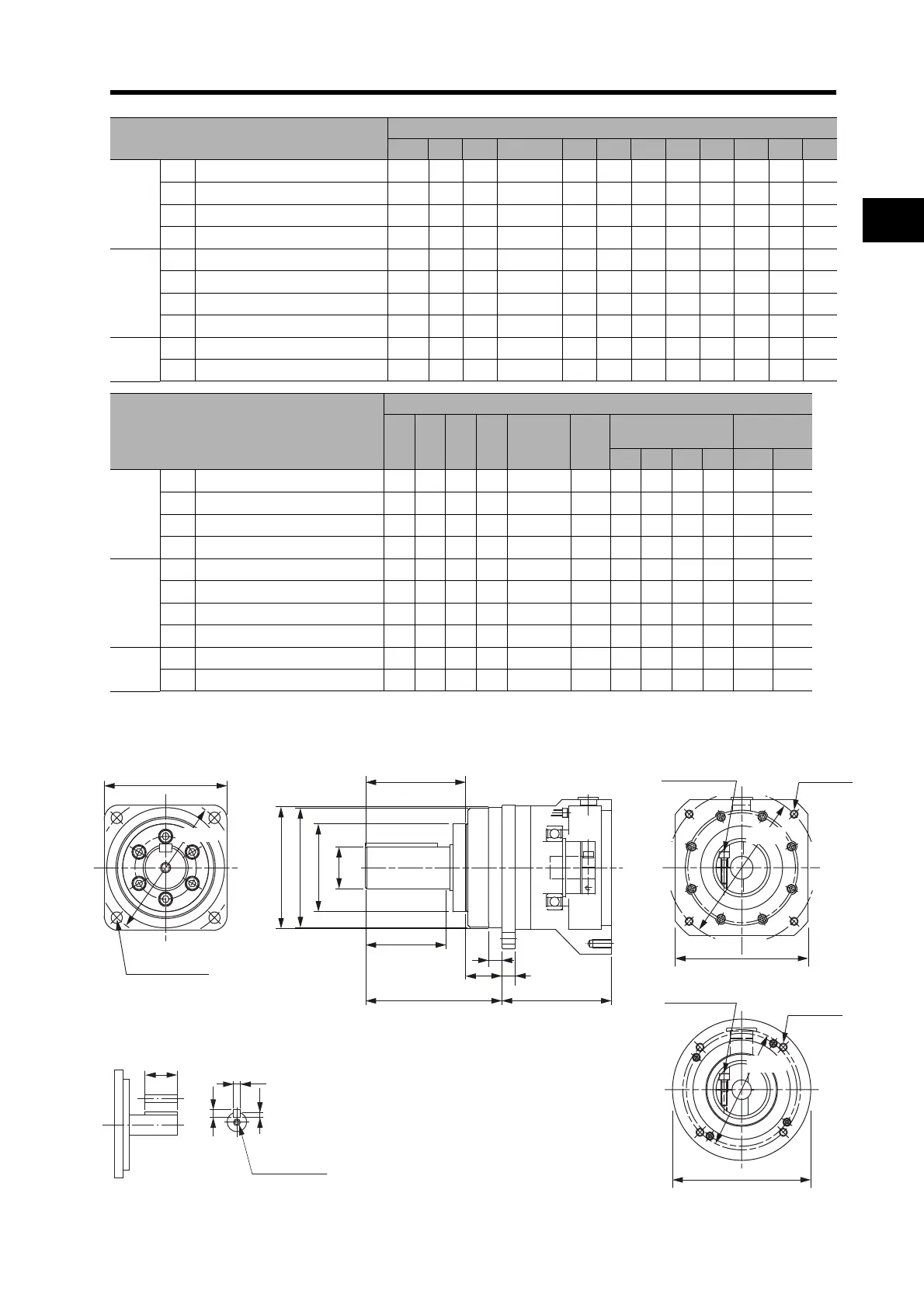

2-2 External and Mounting Hole Dimensions
2
Standard Models and Dimensions
*1. This is the set bolt.
Outline Drawings
*2. With the R88G-HPG50/-HPG65, the height tolerance is 8 mm (D3 dia., h: 8).
Model
Dimensions (mm)
LM LR C1 C2 D1 D2 D3 D4 D5 E F1 F2
4 kW
1/5 R88G-HPG50A054K0SB 149 156 170 180180 190 165 165 163 122 103 12.0 53
1/11 R88G-HPG50A114K0SB 149 156 170 180180 190 165 165 163 122 103 12.0 53
1/20 R88G-HPG65A204K0SB 231 222 230 180180 260 165 220 214 168 165 12.0 57
1/25 R88G-HPG65A254K0SB 231 222 230 180180 260 165 220 214 168 165 12.0 57
5 kW
1/5 R88G-HPG50A055K0SB 149 156 170 180180 190 200 165 163 122 103 12.0 53
1/11 R88G-HPG50A115K0SB 149 156 170 180180 190 200 165 163 122 103 12.0 53
1/20 R88G-HPG65A205K0SB 231 222 230 180180 260 200 220 214 168 165 12.0 57
1/25 R88G-HPG65A255K0SB 231 222 230 180180 260 200 220 214 168 165 12.0 57
7.5 kW
1/5 R88G-HPG6
5A057K5SB 184.5 222 230 180180 260 200 220 214 168 165 12.0 57
1/12 R88G-HPG65A127K5SB 254.5 222 230 180180 260 200 220 214 168 165 12.0 57
Model
Dimensions (mm)
G S T Z1 Z2 AT
*1
Key dimensions
Tap
dimensions
QK b h t1 M L
4 kW
1/5 R88G-HPG50A054K0SB 16 50 8214M1025 M6 70 14 9 5.5 M10 20
1/11 R88G-HPG50A114K0SB 16 50 8214M1025 M6 70 14 9 5.5 M10 20
1/20 R88G-HPG65A204K0SB 25 8013018 M1025 M8 110 22 14 9.0 M16 35
1/25 R88G-HPG65A254K0SB 25 8013018 M1025 M8 110 22 14 9.0 M16 35
5 kW
1/5 R88G-HPG50A055K0SB 16 50 8214M1225 M6 70 14 9 5.5 M10 20
1/11 R88G-HPG50A115K0SB 16 50 8214M1225 M6 70 14 9 5.5 M10 20
1/20 R88G-HPG65A205K0SB 25 8013018 M1225 M8 110 22 14 9.0 M16 35
1/25 R88G-HPG65A255K0SB 25 8013018 M1225 M8 110 22 14 9.0 M16 35
7.5 kW
1/5 R88G-HPG65A057K5SB 25 8013018 M1225
M8 110 22 14 9.0 M16 35
1/12 R88G-HPG65A127K5SB 25 8013018 M1225 M8 110 22 14 9.0 M16 35
S dia.,h: 7
D5 dia. D4 dia.
D3 dia., h: 7
*2
Four, Z2
Set bolt (AT)
C2 dia.
C1 × C1
Four, Z1 dia.
C2 × C2
Four, Z2
Set bolt (AT)
E
T
F1
F2
LR
G
LM
D2 dia.
D2 dia.
D1 dia.
QK
Key and Tap Dimensions
b
h
t1
M (depth: L)
