* Setting value of "P069: Continuous mode of timer's operation" is "0".
Setting value of "P067: Rotation direction of timer's operation" is "112".

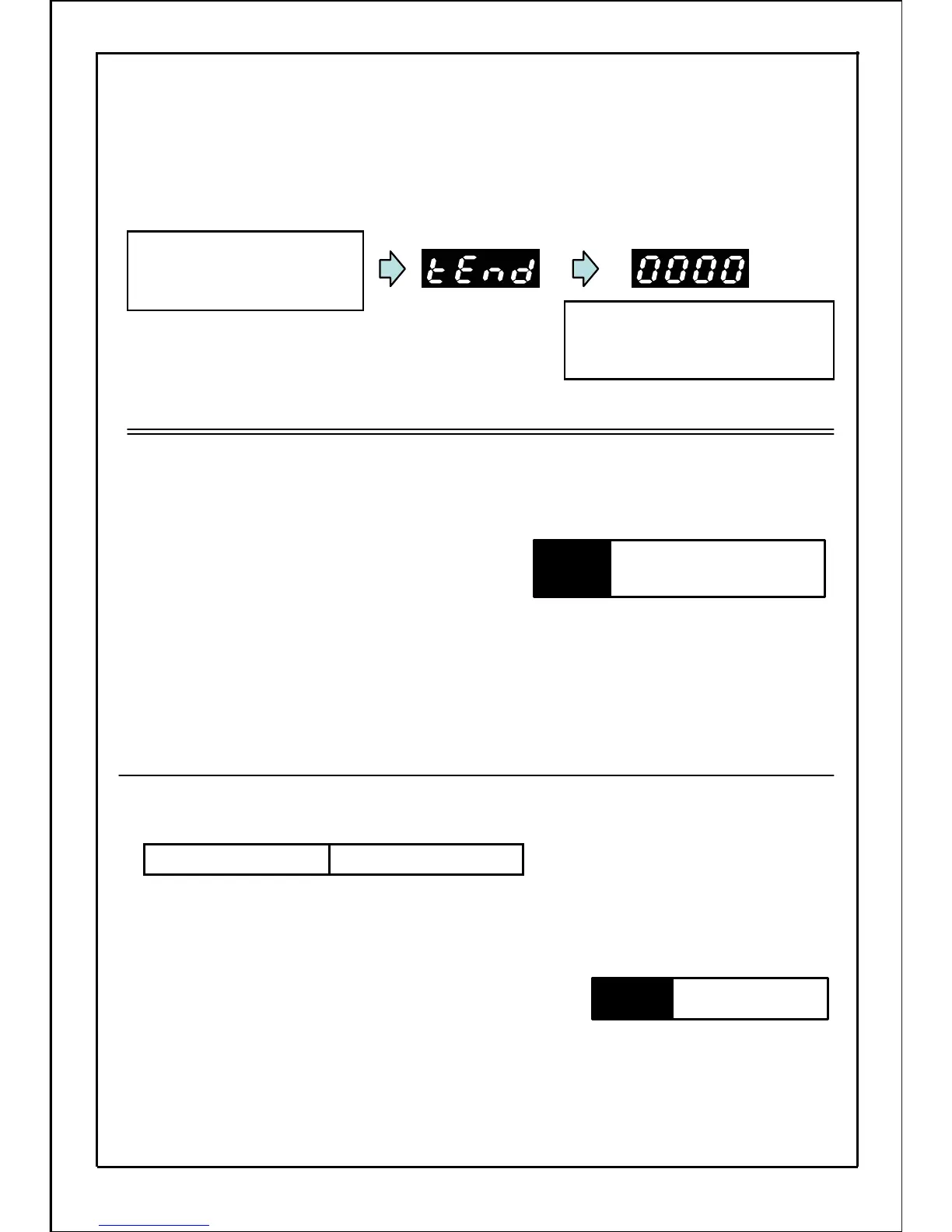

After the timer operates one cycle for times set with parameter "P068: Continuous times of timer's
operation" , "tEnd" will be displayed. Input stop command when "tEnd" is being displayed, "0000"
will be returned to (operation state mode).
Times set with "P068:
Continuous times of timer's
operation"
End of timer's operation
Panel: STOP SW
External control: stop command
(terminal No.2 is turned OFF)
Communication: stop command
Note
・During pulse input operation, if stop command is input, the operation will be stopped immediately
even in one cycle operation.
・During pulse input operation, forward run/reverse run command of the operation panel, external
control and communication is invalid.
P046: 2
nd
speed frequency P051: 7
th
speed frequency P056: 12
th
speed frequency
P047: 3
rd
speed frequency P052: 8
th
speed frequency P057: 13
th
speed frequency
P048: 4
th
speed frequency P053: 9
th
speed frequency P058: 14
th
speed frequency
P049: 5
th
speed frequency P054: 10
th
speed frequency P059: 15
th
speed frequency
P050: 6
th
speed frequency P055: 11
th
speed frequency P060: 16
th
speed frequency
2
nd
~16
th
speed frequency can be set for applying multi speed operation.
・ "0000" indicates 0V stop.
0000・0.5 to 400.0Data setting range (Hz)
・Under control of vector, frequency is1Hz~120Hz.
99
P001, P002, P036～P041
P046～P052, P061～P070
P079～P086
P036～P041, P045
P061～P086
Related
parameters
Related
parameters
