Panasonic VF100 - P102: Bias;Gain Function Select; P103: Bias Frequency Setting; P104: Gain Frequency Setting

P102：Bias/Gain function select
P103：Bias frequency setting
P104：Gain frequency setting
Used to change relationship between output frequency and frequency setting signal (frequency
setting analog signal of control terminal No.14 or potentiometer). Use this function according to
applications.
[Parameter P103: Bias frequency setting]
[Parameter P104: Gain frequency setting]
[Parameter P102: Bias/Gain function select]
・ No frequency exceeding max. output frequency or upper frequency clamp will be output.
No frequency will decrease less than lower frequency clamp.
・ The inverter will not run in reverse direction even if negative frequency setting signal is input.
Max. output frequency
Output
frequency
Output
frequency
（P005，008）
Frequency setting
signal
100%
Bias frequency
（P104）
Bias frequency
（P103）

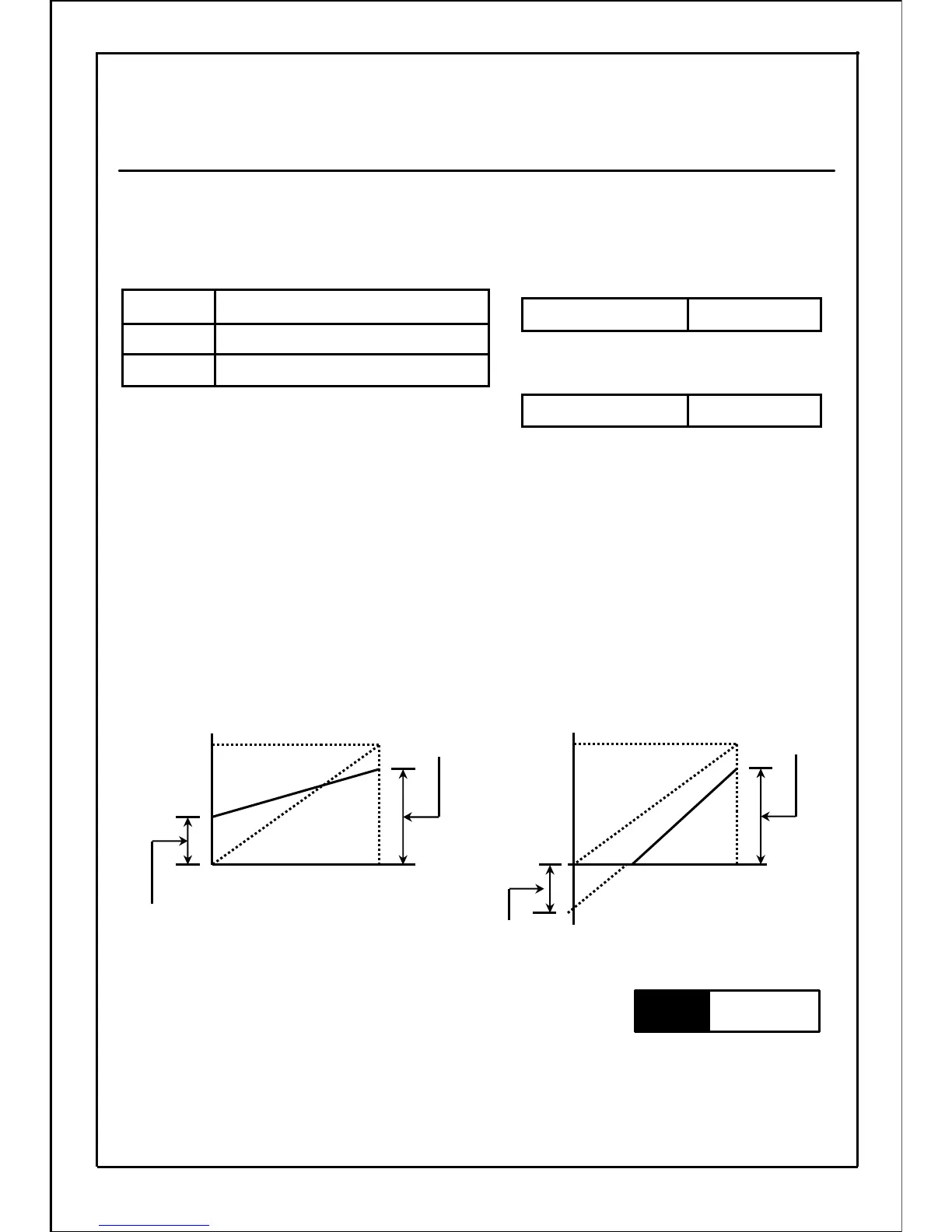

[When bias frequency setting is positive]
100%
[When bias frequency setting is negative]
Max. output frequency
（P005，008）
Frequency setting signal
100%
Bias frequency
（P104）
Bias frequency
（P103）
100%
・ Bias frequency and gain frequency are set with ratio (%) of 100% max. output frequency
(parameter P008).
-99.0 to 250.0
Data setting range (%)
Without bias/Gain function1
With bias/Gain function0
Details
Data setting
value
0.0 to 500.0Data setting range (%)
112
P004, P005
P008
Related
parameters
