P098：Analog and PWM output voltage compensation
Used to compensate the output of "0~10V voltage signal" and "output state signal (PWM)".
・ Analog output voltage signal: 3.75~10(V)
・ PWM signal: 56.3~75(%)
[Adjustment range (full scale value)]
25 to 100 (1% unit)
Data setting range (%)

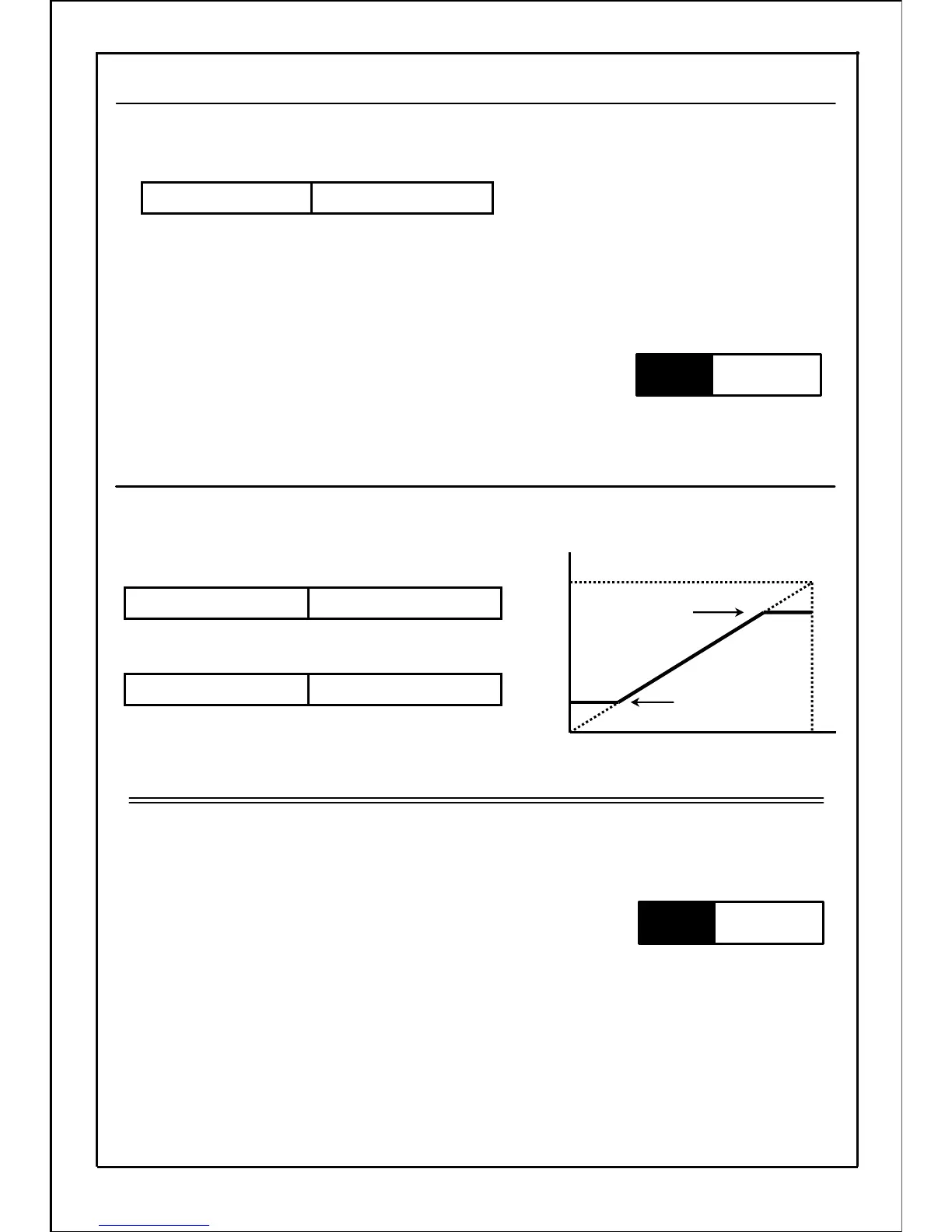

P099：Lower frequency clamp
P100：Upper frequency clamp
Used to set the upper and lower limits of the output frequency.
[Parameter P099: Lower frequency clamp]
[Parameter P100: Upper frequency clamp]
(Hz)
Max. output frequency
(parameter P008)
Output
frequency
Lower frequency
clamp
(parameter P099)
・If the upper frequency clamp is lower than the maximum output frequency (parameter P008),
the upper frequency clamp will have the priority.
Upper frequency
clamp
(parameter P100)
・If the lower frequency clamp is higher than the upper frequency clamp (reverse run setting),
the upper frequency clamp will have the priority.
0
Setting frequency signal
100%
0.5 to 400.0Data setting range (Hz)
0.5 to 400.0Data setting range (Hz)
Note
110
P005, P008
相关
参数
Related
parameters
P090, P097
相关
参数
Related
parameters
