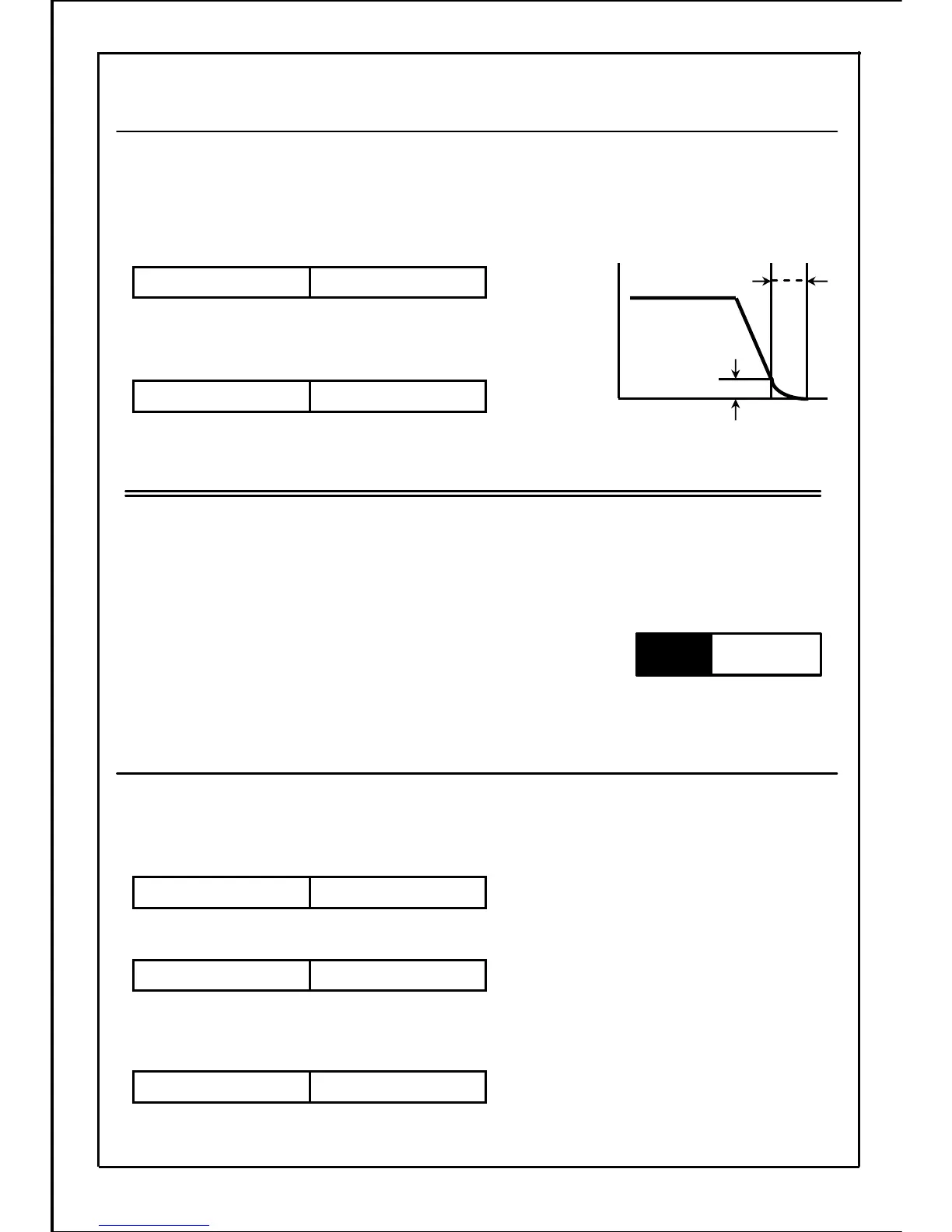

P031：DC brake time
P032：DC brake level
The DC brake can be applied when the inverter output frequency drops below "P030: Stop frequency
"during ramp-to-stop.
In addition, together with JOG, positioning control can be carried out.
[Parameter P031: DC brake time]
[Parameter P032: DC brake level]
0000・0.1 to 120.0 Data setting range(s)
* The DC brake is not applied when "0000" is set.
0 to 100Data setting range(s)
* Set in increments of 5. The braking force will
increase when a larger value is set.
Stop frequency
Operation
frequency
(P030)
[ramp-to-stop] DC brake time(P031)
0
・ The frequency for applying the DC brake is set by parameter P030 stop frequency.
・ The DC brake when switching between forward run and reverse run is set with parameters
"P033: Stop frequency during forward run/reverse run operation", "P034: DC brake time during
forward run/reverse run operation" and "P035: DC brake level during forward run/reverse run
operation".
Note
P033：Stop frequency during forward run/reverse run operation
P034：DC brake time during forward run/reverse run operation
P035：DC brake level during forward run/reverse run operation
The DC brake can be applied when the inverter output frequency drops below "P033: Stop frequency
during forward run/reverse run operation" during forward run/reverse run operation.
[Parameter P034: DC brake time during
forward run/reverse run operation]
[Parameter P035: DC brake level during
forward run/reverse run operation]
0000・0.1 to 120.0 Data setting range(s)
* The brakes are not applied when "0000" is set.
0 to 100Data setting range(s)
* Set in increments of 5. The braking force will
increase when a larger value is set.
0.5 to 60.0 Data setting range(Hz)
[Parameter P033: Stop frequency during
forward run/reverse run operation]
80
P030
Related
parameters
