Panasonic VF100 - P005: V;F Pattern

V/F pattern of 50 ・ 60 or 0.5 to 400Hz can be set independently from the maximum output frequency
(50 to 400 Hz).
The 3C V/F pattern can be set according to the parameter P008~P013
settings. The maximum output frequency is set with parameter P008
and base frequency is set with parameter P009. The change point
frequency 1 is set with parameter P010 and change point voltage 1 is
set with parameter P011. The change point frequency 2 is set with
parameter P012 and change point voltage 2 is set with parameter P013.
3 points mode
3C
The V/F pattern can be set according to the parameter P008 and P009
settings. The maximum output frequency is set with parameter P008
and base frequency is set with parameter P009.
Free mode
FF
The V/F pattern of 60Hz is set regardless of parameter P008 and P009
settings.
60Hz mode
60
The V/F pattern of 50Hz is set regardless of parameter P008 and P009
settings.
50Hz mode
50
RemarksName
Data
setting
value

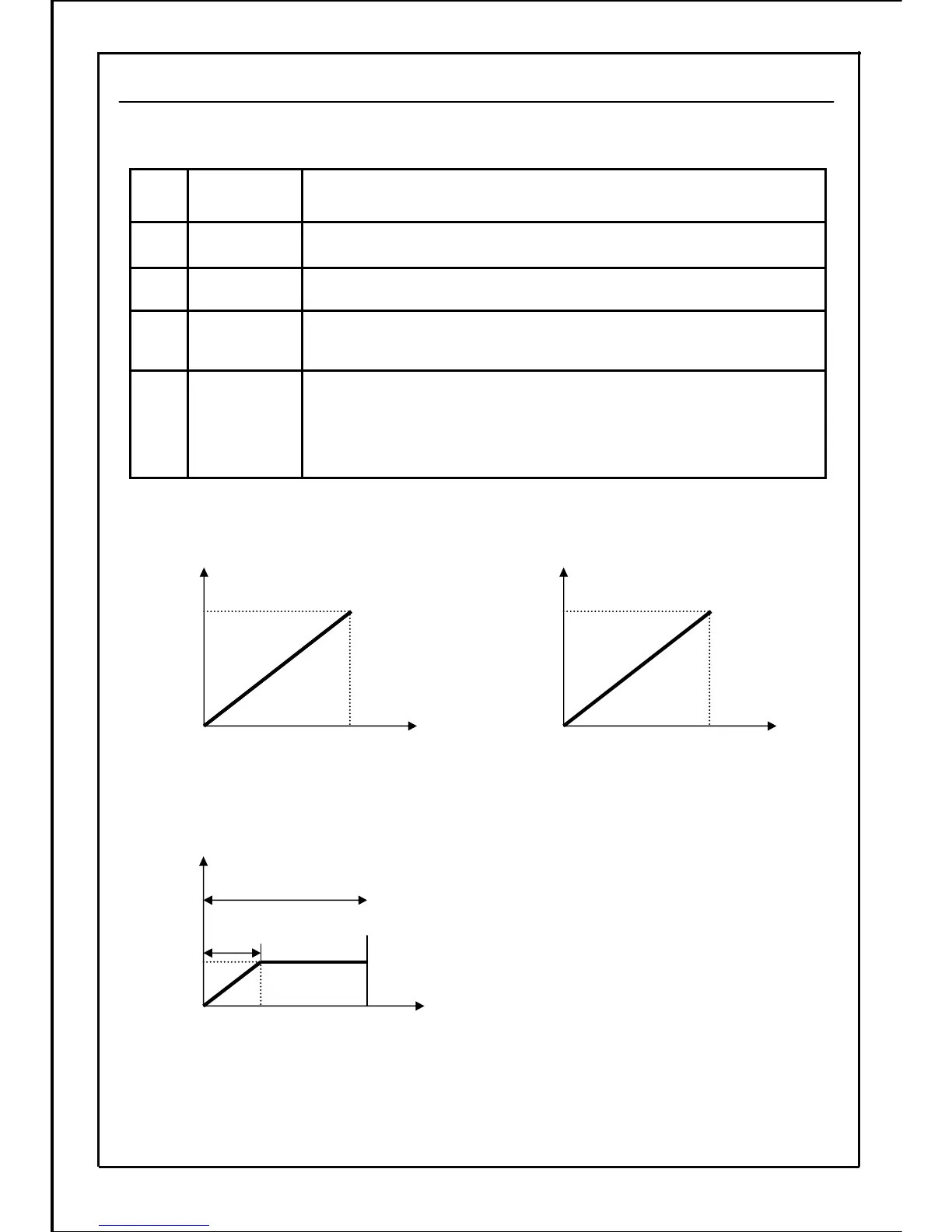

[50Hz mode]
50
100
Output
voltage
(%)
Output
voltage
(%)
Output
voltage
(%)
Output frequency(Hz)
0
Max. output frequency=50Hz
Base frequency=50Hz
[60Hz mode]
60
100
Output frequency(Hz)
0
Max. output frequency=60Hz
Base frequency=60Hz
[Free mode]
100
Output frequency(Hz)
0
Max. output frequency(P008)
Base frequency(P009)
P005：V/F pattern
65
