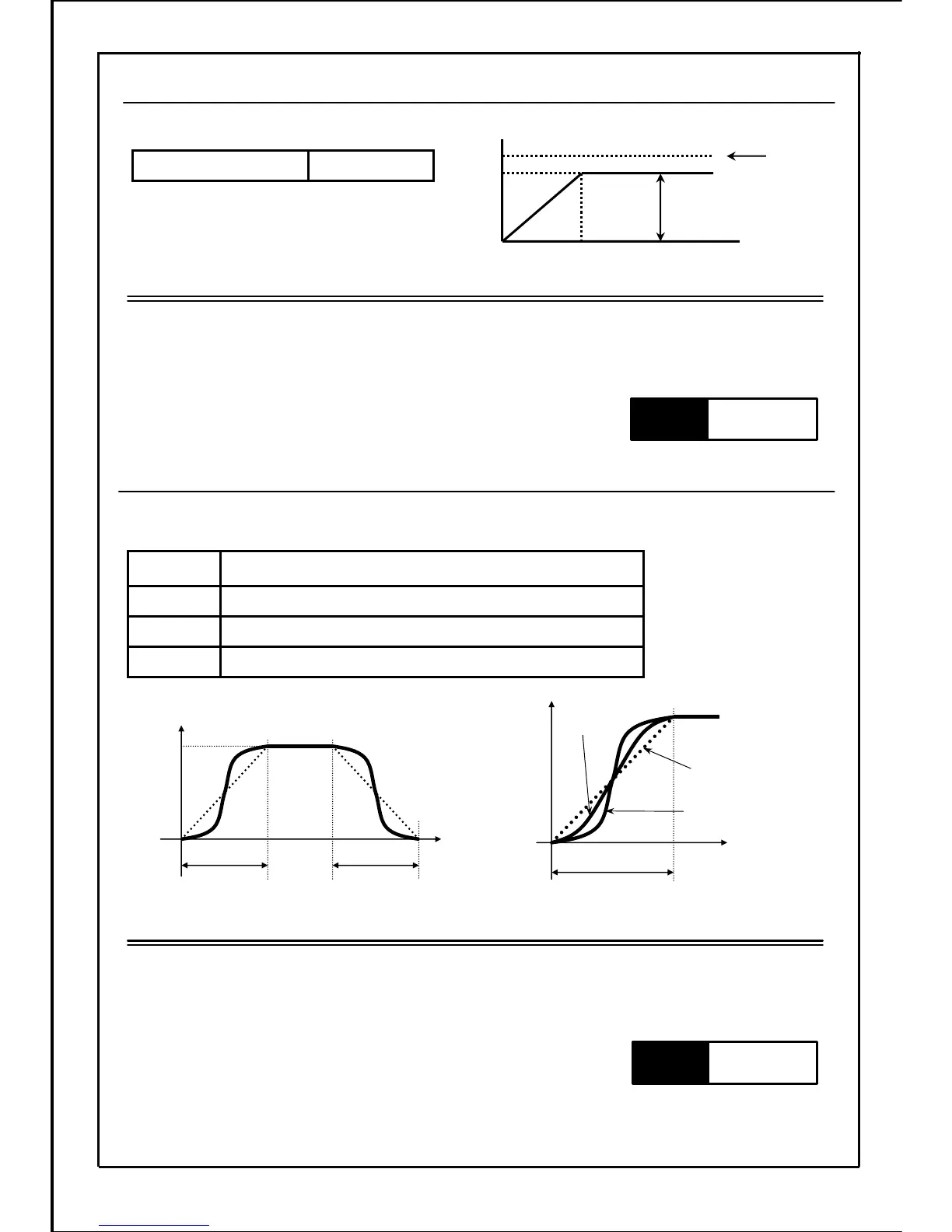

P014：Max. output voltage
Used to set the max. output voltage.
・A voltage exceeding the power voltage cannot be output.
・This setting does not affect the DC brake level.
Power
voltage
Base
frequency
Output
frequency
Max.
output voltage
Output
voltage
1 to 500 Data setting range(V)
* When "0" is set, the power voltage value
will be output.
Note
P015：S-shaped acceleration/deceleration mode
The acceleration/deceleration mode can be selected between linear and S-shaped (quadratic
and cubic) mode.
Acceleration time
Quadratic
curve
Cubic curve
Linear
Acceleration time Deceleration time
Frequency
Frequency
S-shaped acceleration/deceleration ( Quadratic curve)1
S-shaped acceleration/deceleration ( Cubic curve)2
Linear acceleration/deceleration ( Factory setting data)0
Details
Data setting
value
・ The acceleration/deceleration time is always the same regardless of the acceleration/
deceleration mode (Linear or S-shaped acceleration/deceleration).
Note
71
P005, P008
Related
parameters
P001, P002
P061～P066
Related
parameters
