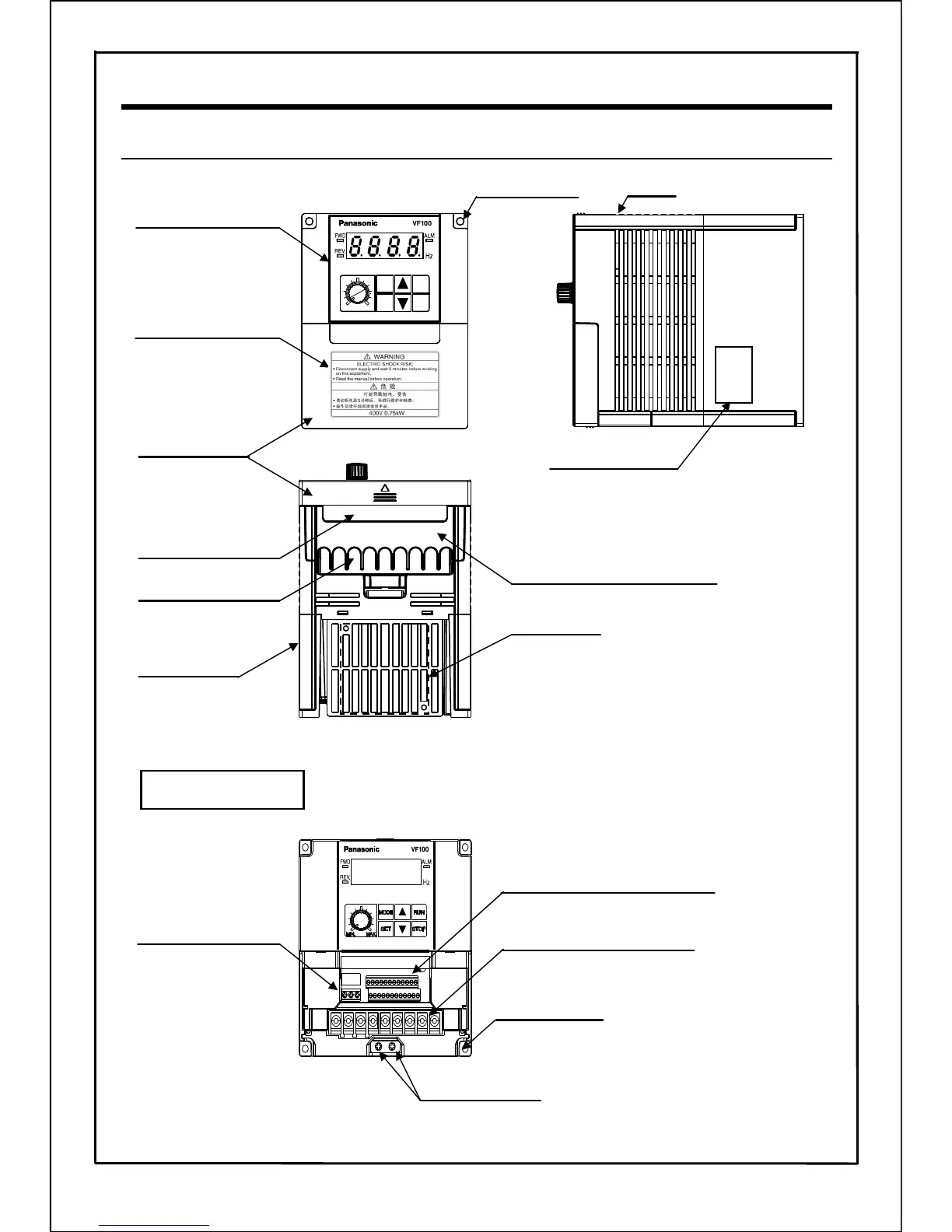

5. Parts Identification
Operation panel unit
Frame
Warning label
Rating nameplate
Terminal cover 1
Control wire
lead-in hole
Main circuit wire
lead-in hole
Heat sink fins
Cooling fan
Note: The cooling fan is mounted on the 1.5kW
or more. It is not mounted on the 0.75kW
capacity.
* Check the rating nameplate to confirm
that the ordered product has been
delivered.
Mounting hole
Terminal cover 2
(Main circuit terminal cover)
(Control circuit
terminal cover)
Explanation of inside
of terminal cover
Ground terminal
Mounting hole
Control circuit terminal block
(Signal input/output)
Main circuit terminal block
Control circuit
terminal block
(Relay output)
Note: This explanatory drawing shows the
state with the terminal cover removed.
During normal use, do not remove the
terminal cover.
5-1. Part Names
MODE
SET
MIN. MAX.
RUN
STOP
PULL
