P010：change point frequency 1
P011：change point voltage 1
P012：change point frequency 2
P013：change point voltage 2
Used to set change points 1 and 2 set with 3C mode in "P005: V/F pattern".
(These parameters are valid only when parameter P005 is set to "3C".)
[Parameter P010: change point frequency 1]
[Parameter P011: change point voltage 1]
0.5 to 400.0 Data setting range (Hz)
0 to 100
Data setting range (%)
[Parameter P012: change point frequency 2]
[Parameter P013: change point voltage 2]
0.5 to 400.0 Data setting range (Hz)
0 to 100 Data setting range (%)

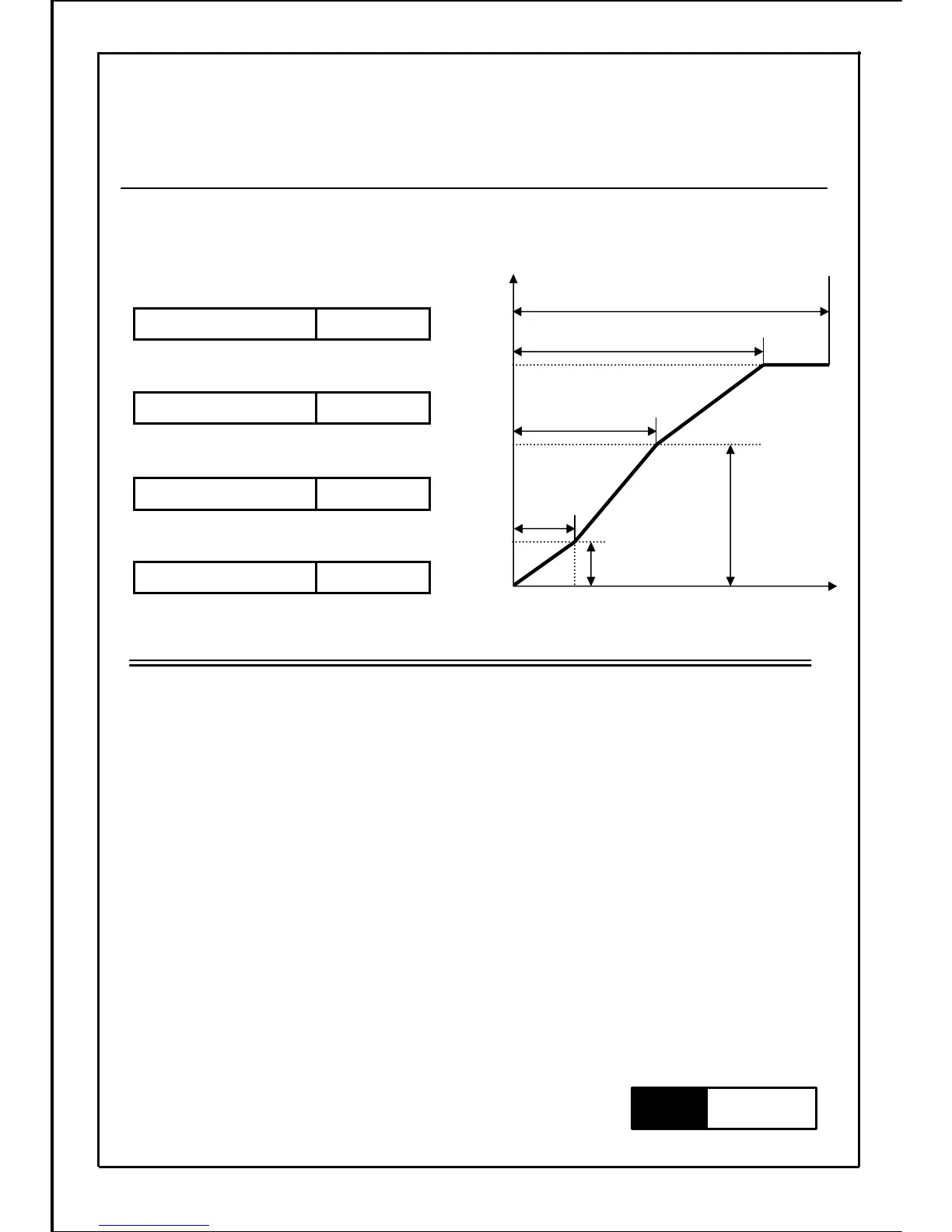

100
Output
voltage
(%)
Output frequency (Hz)
Max. output frequency (P008)
Change point
frequency 2 (P012)
Change point
frequency 1
(P010)
Change point
voltage 1 (P011)
Base frequency (P009)
Change point
voltage 2
(P013)
0
Note
・
Read carefully details on "P005: V/F pattern" before setting.
・
If change point frequencies1 and 2 are set to be higher than base frequency, change point
frequencies 1 and 2 will operate according to setting value of base frequency.
・
If change point frequency 2 is set to be lower than change point frequency 1, change point
frequency 2 will operate according to setting value of change point frequency 1.
・
When setting "P007: torque boost level", if change point voltage 1 and 2 is set to be lower than
torque boost level, change point voltage 1 and 2 will operate according to setting value of
torque boost level.
・
If change point voltage 2 is set to be lower than change point voltage 1, change point voltage
2 will operate according to setting value of change point voltage 1.
70
P005, P100
P007～P009
Related
parameters
