Panasonic VF100 - Setting Value 5; Setting Value 6

Pulse input acceleration and deceleration link multi speed frequency
operation function (setting value "6")
Pulse input multi speed frequency operation (setting value "5")
［Setting value "5": pulse input multi speed frequency operation］
Input pulse into SW2, and the acceleration and deceleration time can be fixed to 8 speed at most
for applying pulse input multi speed operation. Input run command and the set pulse, speed will
automatically switch to the next one.
"P037: SW2 function select" is set to "11". Detect the times of OFF→ON positive edge. Rotation
direction can be set with parameter "P067: Rotation direction of timer's operation". Continuous
times of timer's one cycle operation can be set with parameter "P068: Continuous times of timer's
operation". Operation mode and wait time for the timer operating from the end of one cycle to the
next cycle can be set with parameters "P069: Continuous mode of timer's operation" and "P070:
Continuous wait time of timer's operation". Each pulse input times of 1
st
speed to 8
th
speed can be
set with parameters "P079 ~P086: 1
st
~8
th
speed pulse input times".
［Setting value "6": pulse input acceleration and deceleration link multi speed frequency operation function］
Input pulse into SW2 and at most 8 speed and 4 acceleration and deceleration time of pulse input
multi speed operation can be applied. "P037: SW2 function select:" is set to "11". Detect the times
of OFF→ON positive edge.

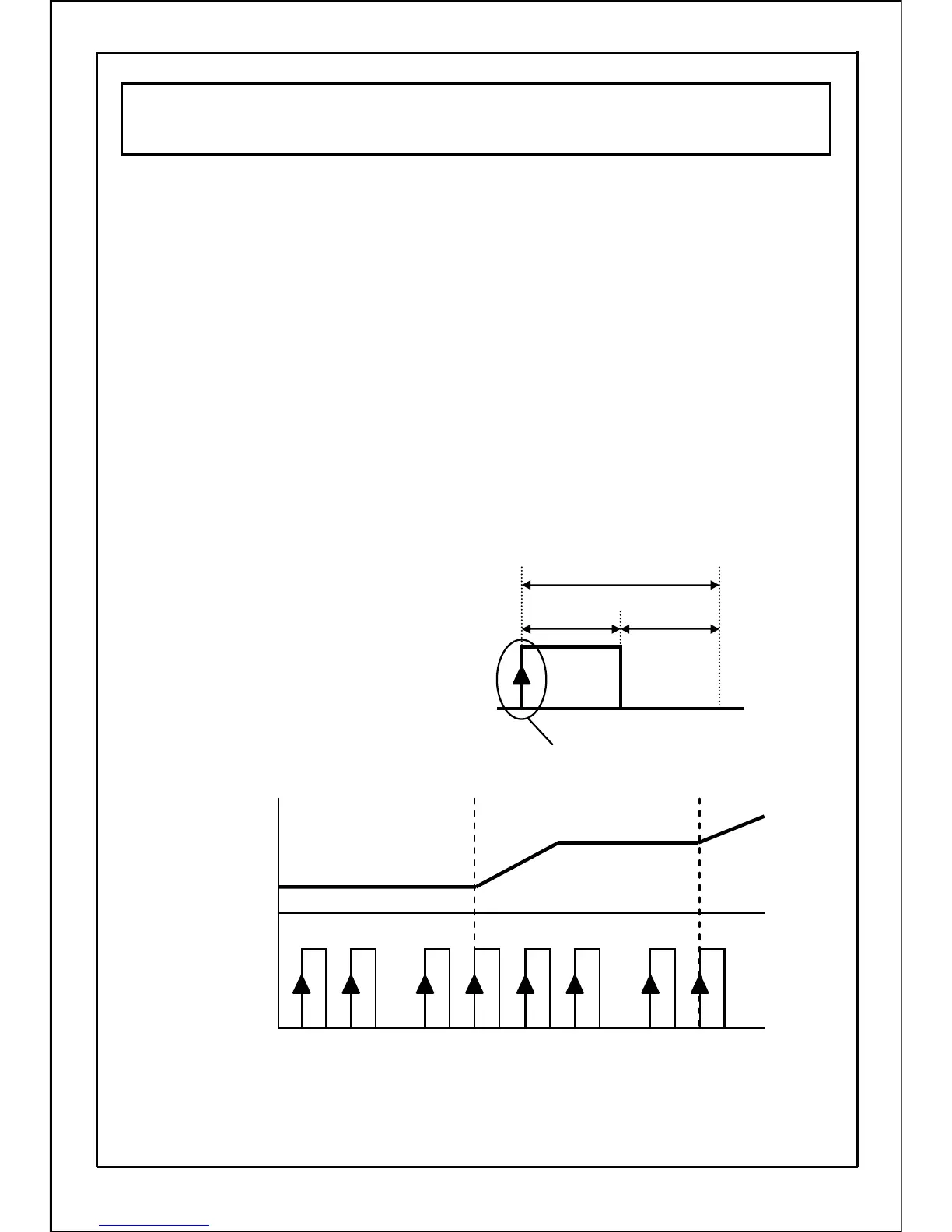

＜About pulse input into SW2＞
Input the following pulses into SW2
・Min. cycle: 100msec
・Min. ON width: 50msec
・Min. OFF width: 50msec。
50ms or more 50ms or more
100ms or more
OFF→ON counts one time
・・・
1
2・・・N1-1
1
2
N1
・・・
N2 -1
N2
Output
frequency
input pulse
(SW2)
Counting
1
st
speed pulse input times
(setting value "N1" (times))
2
nd
speed pulse input times
(setting value "N2" (times))
1
st
speed frequency
2
nd
speed frequency
97
