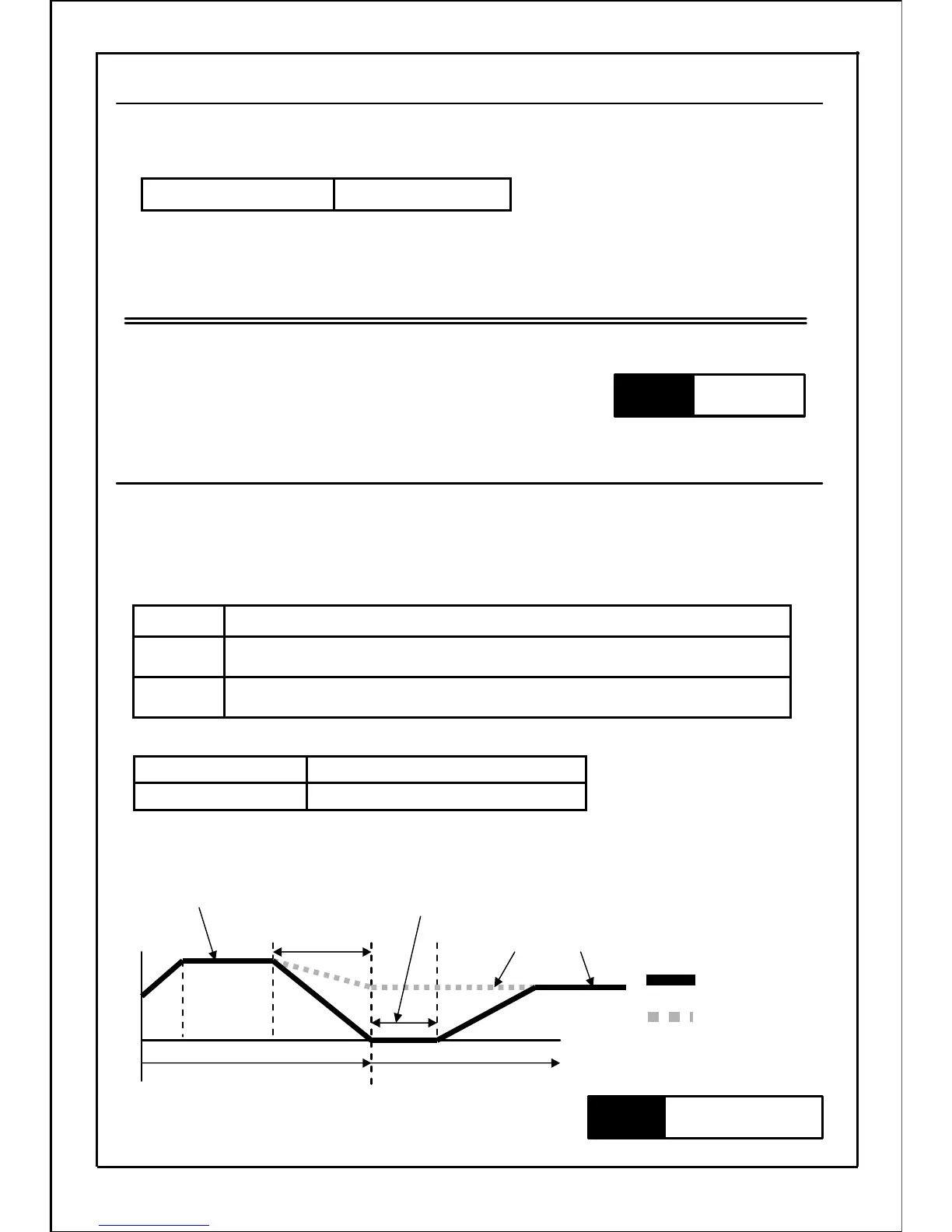

P068：Continuous times of timer's operation
In "P045: Multi speed function select", if the setting value is 3~6, using 1
st
to 8
th
speed operation
as "timer's operation cycle" to set continuous times of one cycle.
0000・1 to 9999Data setting range (times)
* "0000" is setting without limit on times. Keep on operating after run command is input till stop
command is input.
P069：Continuous mode of timer's operation
P070：Continuous wait time of timer's operation
In "P045: Multi speed function select", if setting value is 3~6, used to set operation method and
continuous operation wait time when the timer runs one cycle and enters the 2nd cycle.
When continuous mode of timer's operation is set to "1", continuous wait time of timer's operation
is invalid.
Note
・This function is valid only when setting value is 3~6 in "P045: Multi speed function select".
Once one cycle operation ends, changes to 1st speed frequency in the next
cycle from 1st deceleration time.
1
Once one cycle operation ends, returns to the 0V stop state from 1st deceleration
time and enters the next cycle.
0
Details
Data setting
value
0.1(0.1 to 999.9)、1(1000 to 6553)
Setting unit (s)
0000・0.1 to 6553Data setting range (s)
* "0000" is setting without wait time.
[Parameter P069: Continuous mode of timer's operation]
[Parameter P070: Continuous wait time of timer's operation]
When setting value is "0"
When setting value is "1"
8
th
speed frequency
(final frequency of n cycle)
Timer runs n cycles
Timer runs n+1 cycles
1
st
deceleration time
1
st
speed frequency
(initial frequency of n+1 cycle)
Continuous wait time of
timer's operation (P070)
101
P002, P045～P052
P061～P068
P045
P068～P070
Related
parameters
Related
parameters
