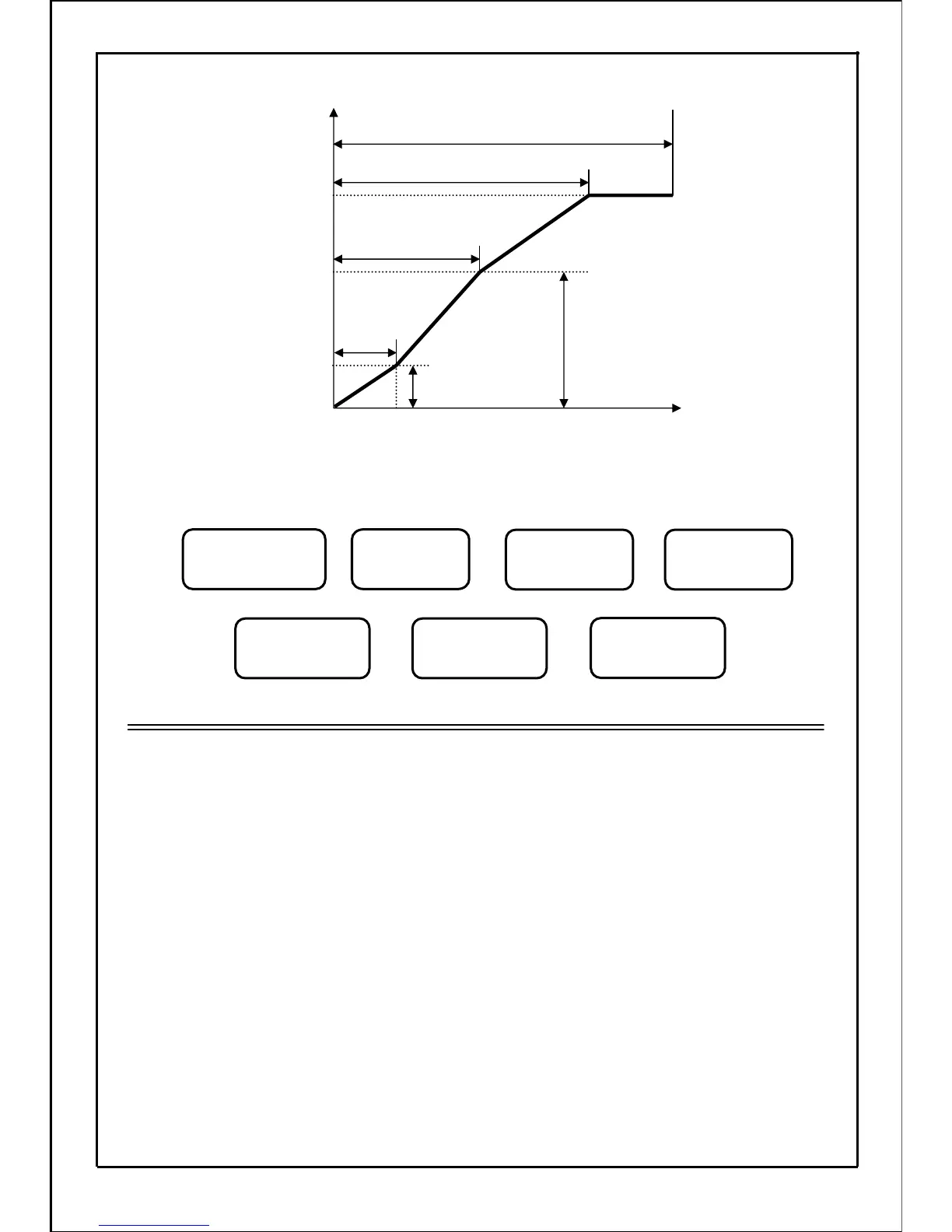

[3C mode]
100
Output
voltage
(%)
Output frequency(Hz)
Max. output frequency(P008)
Change point
frequency 2
(P012)
Change point
frequency 1
(P010)
Change point
voltage 1 (P011)
Base frequency(P009)
Change point
voltage 2 (P013)
0
・
Both the maximum output frequency and base frequency are set to 50Hz as the factory setting data.
・
Take note of the upper frequency clamp (parameter P100) when changing the maximum output
frequency setting.
・
In free mode or 3C mode, take note that overcurrent may flow due to different setting value
and load state.
・
When change point frequency 1 and 2 are set above base frequency, change point frequency
1 and 2 will operate according to the setting value of base frequency.
・
When change point frequency 2 is set below change point frequency 1, change point frequency
2 will operate according to the setting value of change point frequency 1.
If 3C mode in V/F pattern is used, setting parameters according to the relationship graph as follow.
(Same in 2nd characteristics )
Torque boost level
(P007)
Change point
frequency 1
(P010)
Change point
frequency 2
(P012)
Base frequency
(P009)
Max. output
frequency(P008)
> > >
Change point
voltage 1 (P011)
Change point
voltage 2 (P013)
>
>
Note
66
