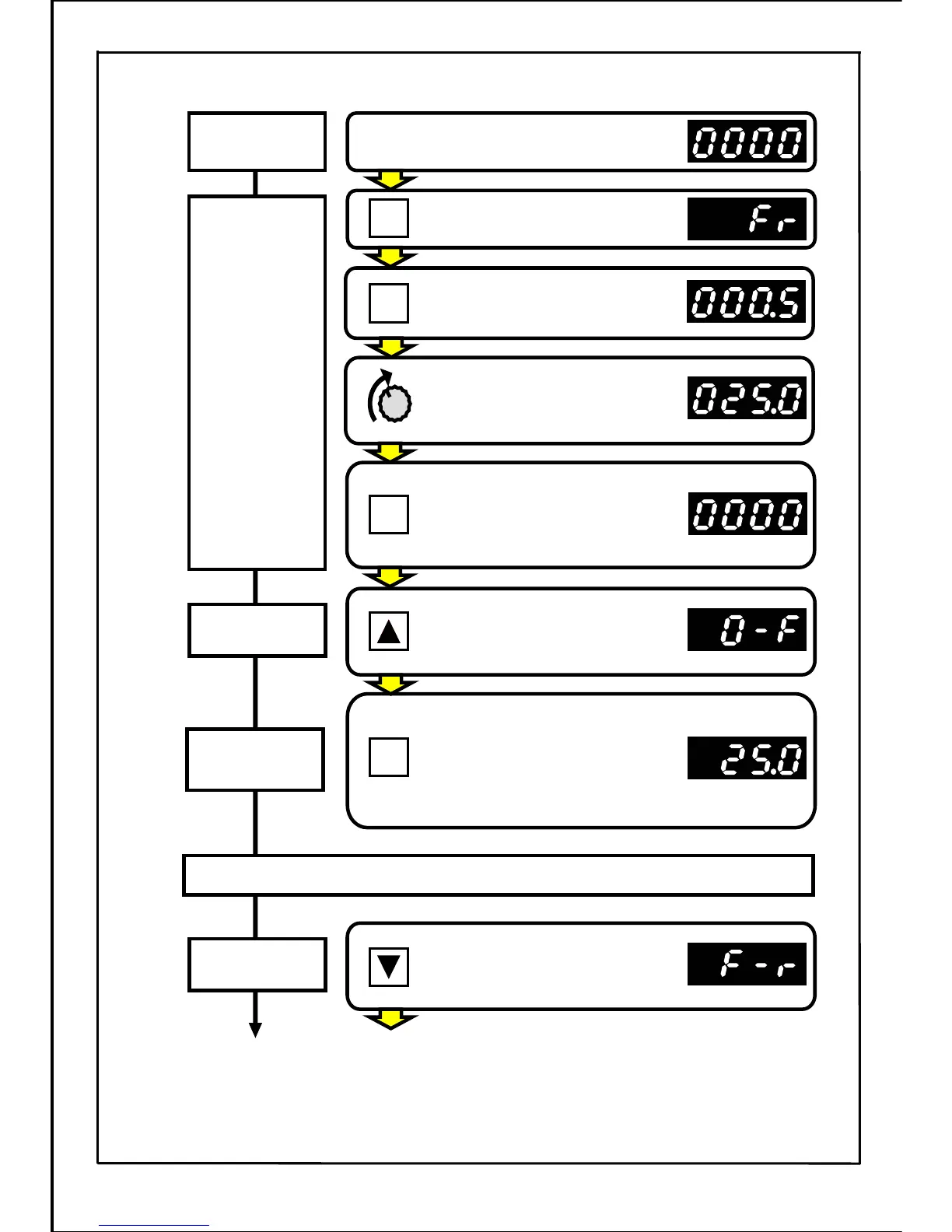

[Example for monitoring and setting potentiometer frequency command before operation]
The main display lamp will turn ON.
(Operation status display mode)
Press the RUN button and the
motor will start to run. When "25.0"
is displayed on the main display,
the motor is operating at 25Hz.
Power ON
Forward
run setting
Press the UP button to set the
rotation direction.
(Press the DOWN button to set
reverse run.)
Run command
Press the MODE button.
Press the SET button and check
thefrequency command.
Press the SET button to set the
operating frequency.
Turn the frequency setting dial
clockwise, and set frequency
command to 25Hz.
[Continued to next page]
Confirming
and setting
the operating
frequency
Changing from forward run to reverse run during operation.
Reverse
run setting
Press the DOWN button, and set
the rotation direction to reverse
run.
32
MODE
RUN
SET
SET
To Next Page
