LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
Discharging the C15 Pacing Capacitor
Section Menu Section Contents Procedures Back Index
179
8
Discharging the C15 Pacing Capacitor
Location of Discharge Points
After removing the system and therapy PCBs as described in System (A01)/Therapy (A04) PCB Assembly Replacement (p. 232),
immediately discharge the Pacing Capacitor using the capacitor discharge tool (see Using the Capacitor Discharge Tool (p. 178)).
The discharge points are located at resistors R5 and R20 on the therapy PCB.
Capacitor
Discharge Tool
(p. 177)
CR33
R5
R4
R20
R124
Area Detail
Therapy PCB

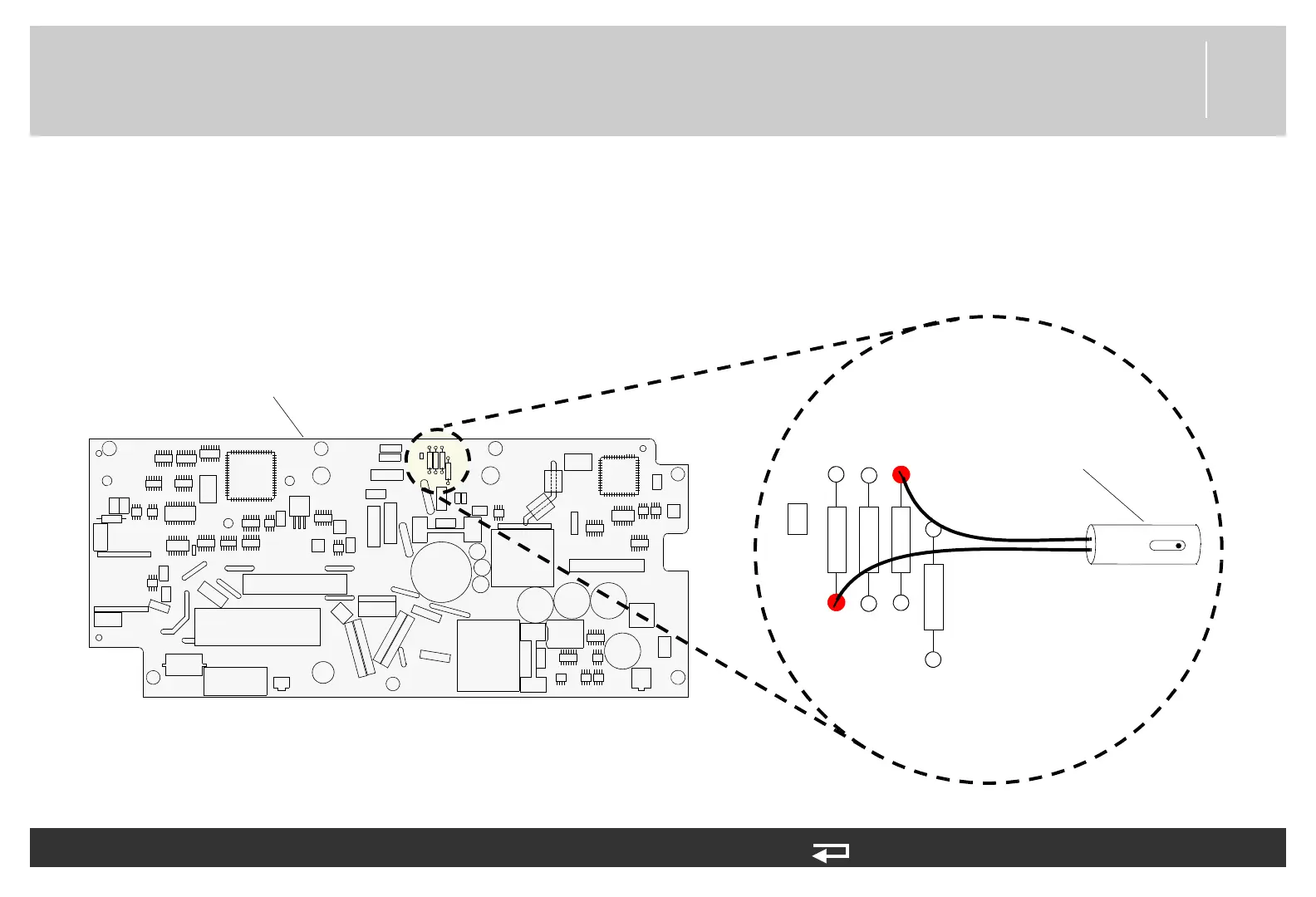

Figure 8.3—Pacing capacitor discharge points
