Physio Control LIFEPAK 15 - Main Keypad (A10) Replacement

LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
Main Keypad (A10) Replacement
Section Menu Section Contents Procedures Back Index
200
8
Main Keypad (A10) Replacement
Main keypad replacement consists of the following:
• Removing the Main Keypad (A10) (p. 201)
• Installing the Main Keypad (A10) (p. 201)

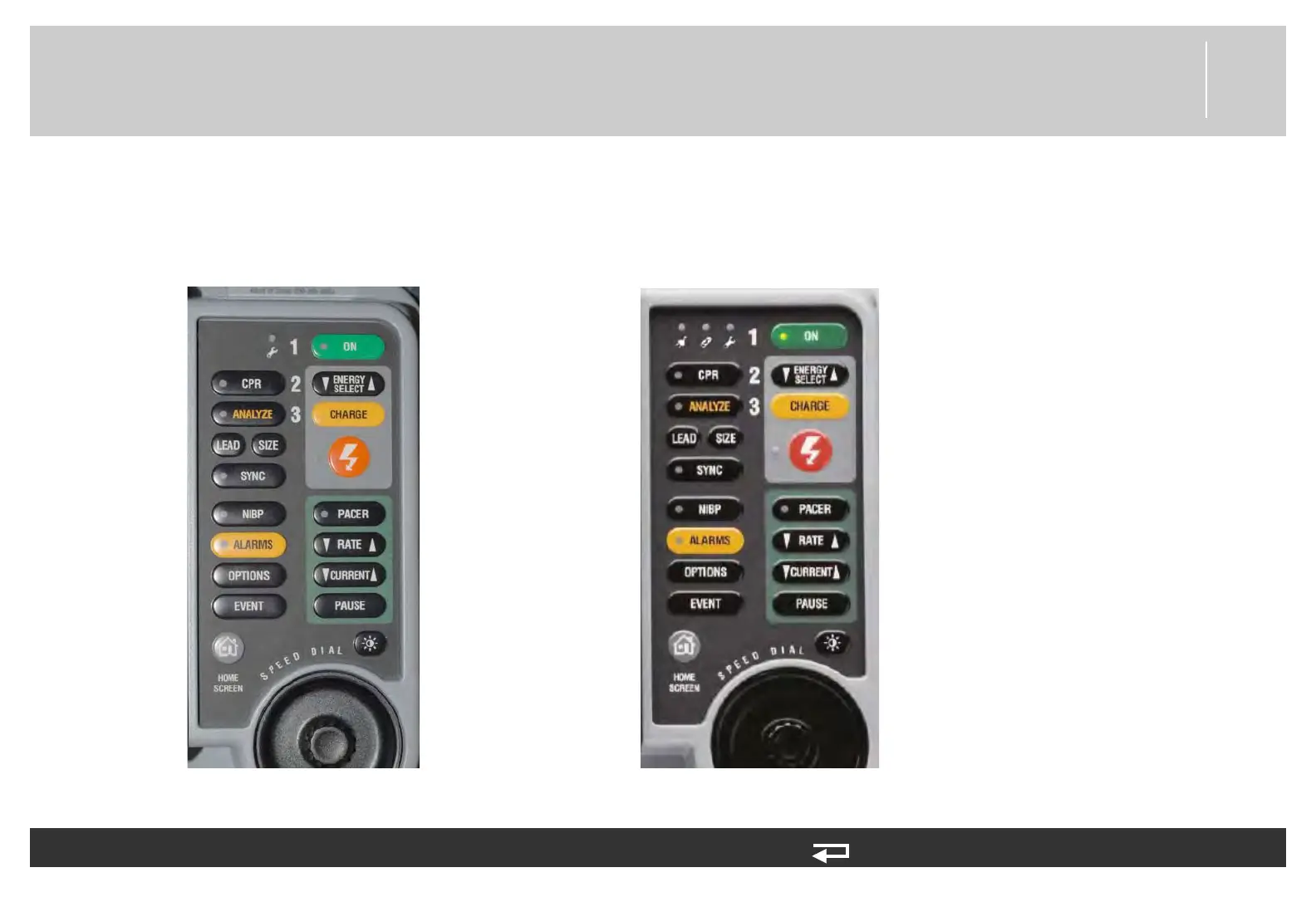

Figure 8.16—Main keypad replacement
V1 keypad
V2 keypad
