Rear Case Replacement
Section Menu Section Contents Procedures Back Index
315
8
Rear Case Replacement
Rear case replacement consists of the following procedures:
• Removing the Rear Case (p. 316)
• Installing the Rear Case (p. 318)

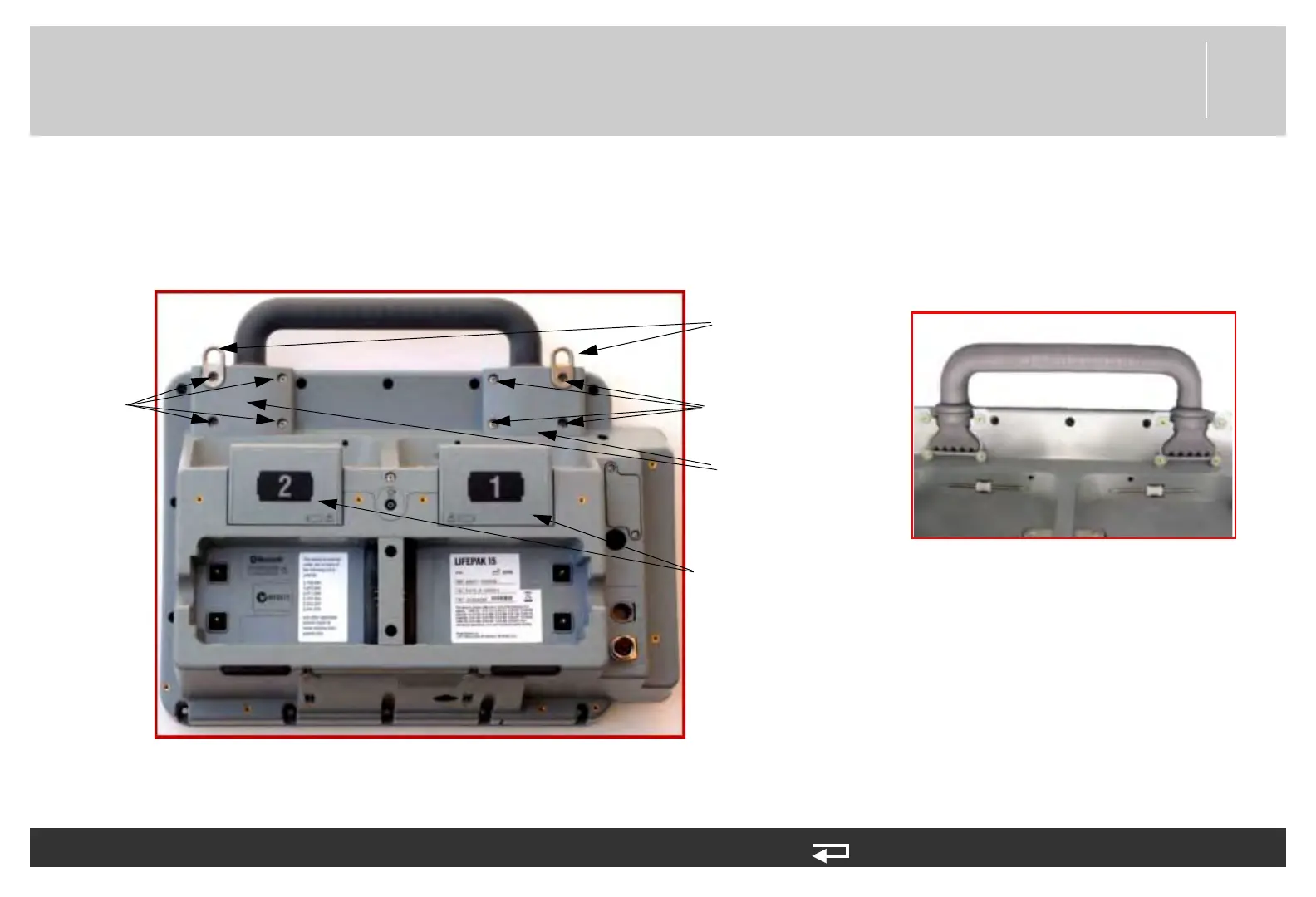

Figure 8.102—Rear case replacement screw locations
paddle retainer
covers (note:
screws under
labels)
handle cover
screw
locations
handle covers removed
shoulder strap
brackets
handle covers
handle cover
screw
locations
