Physio Control LIFEPAK 15 - Interconnect Bracket (A17) Replacement

LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
Interconnect Bracket (A17) Replacement
Section Menu Section Contents Procedures Back Index
284
8
Interconnect Bracket (A17) Replacement
Interconnect bracket replacement consists of the following procedures:
• Removing the Interconnect Bracket (A17) (p. 285)
• Installing the Interconnect Bracket (A17) (p. 286)

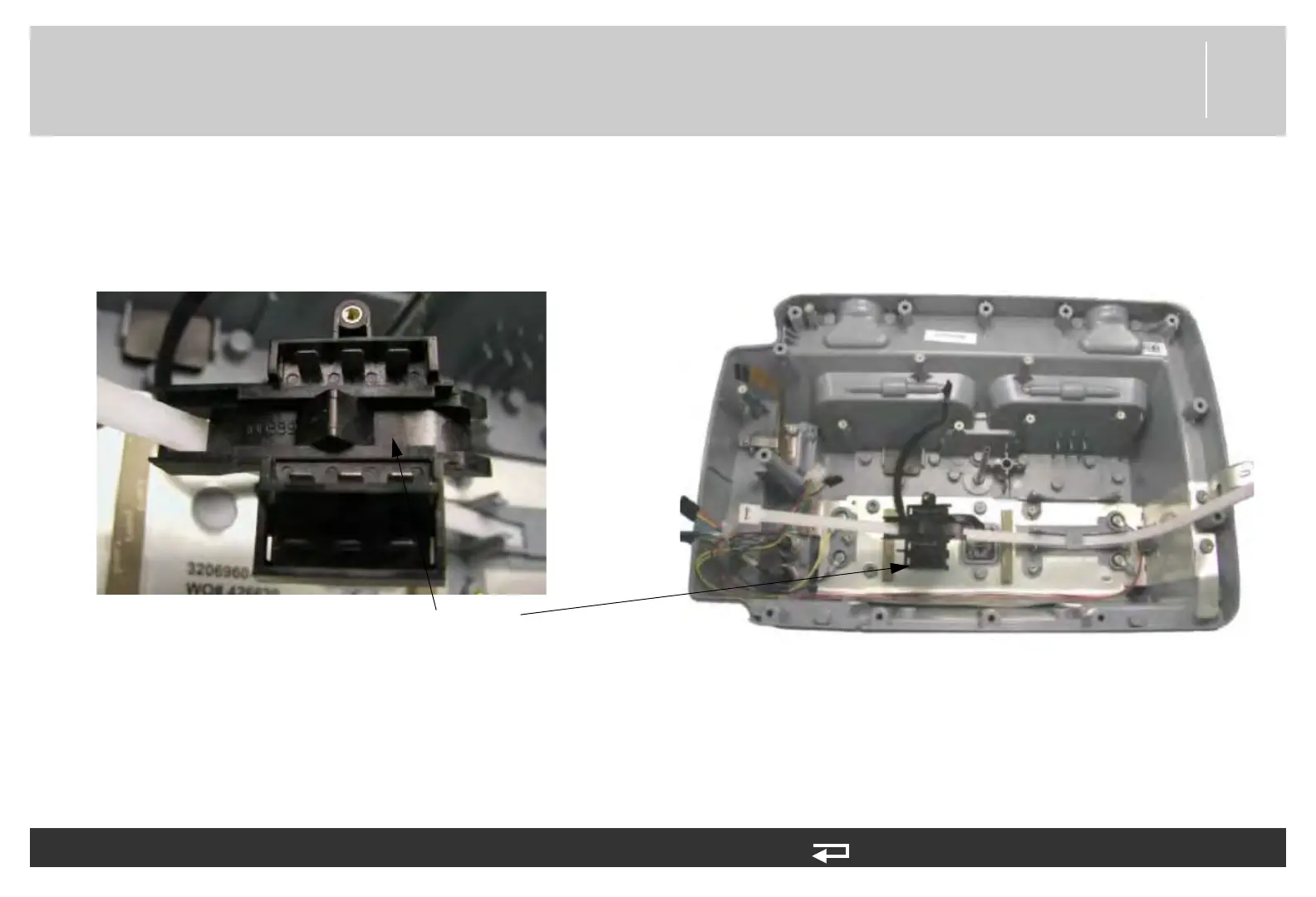

Figure 8.78—Interconnect bracket location
interconnect
bracket
