Temperature Cable Assembly (W35) Replacement
Section Menu Section Contents Back Index
357
8
Temperature Cable Assembly (W35) Replacement
Temperature cable assembly replacement consists of the following procedures:
• Removing the Temperature Cable Assembly (W35) (p. 358)
• Installing the Temperature Cable Assembly (W35) (p. 358)

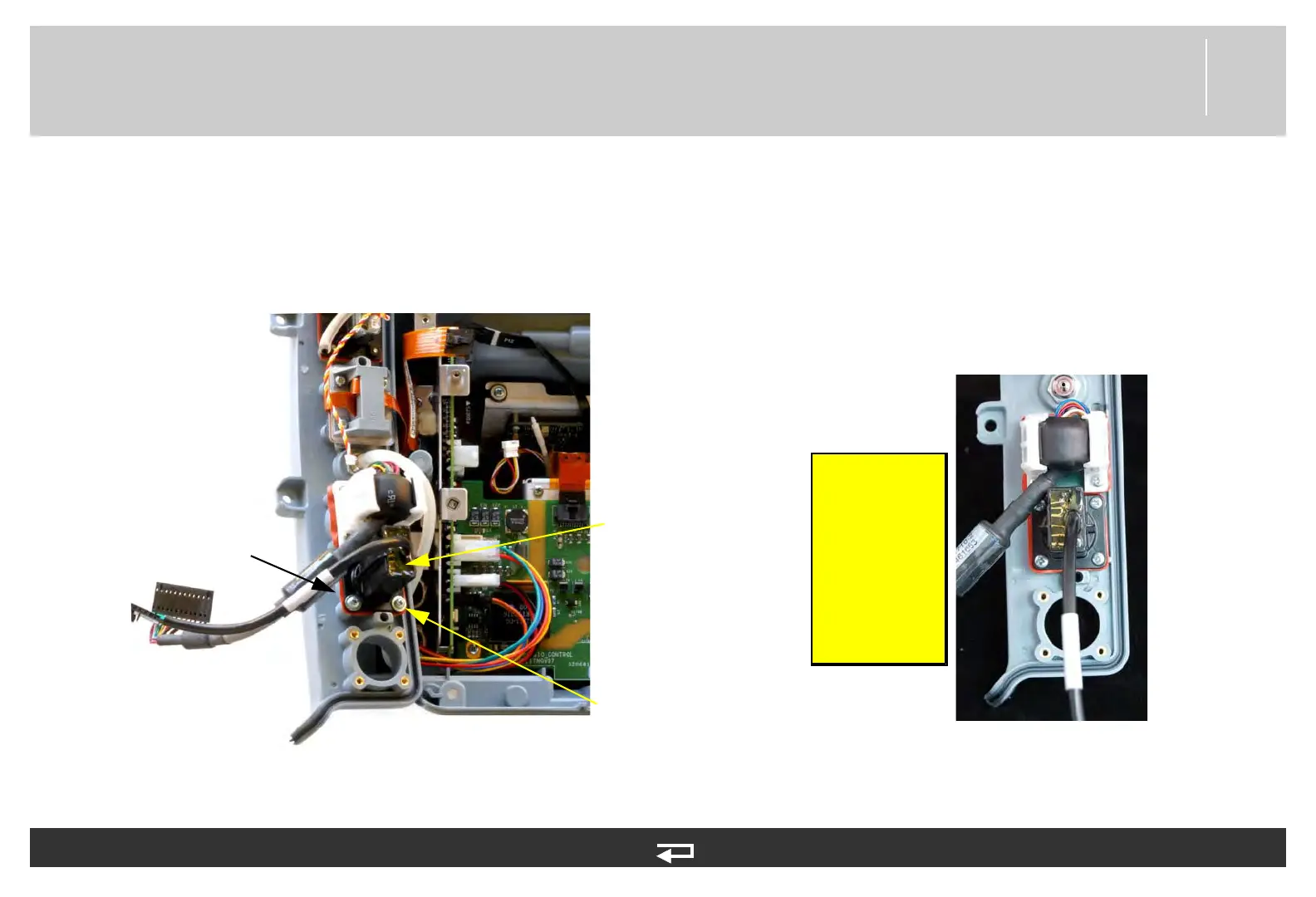

Figure 8.121—Temperature cable parts and screw locations
Temperature
cable
screw
locations
(4 places)
Connector
gasket
Note:
Align ECG
Ferrite as
shown prior
to
installation
into unit.
