LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
Therapy Connector Cable (W11) Replacement
Section Menu Section Contents Procedures Back Index
214
8
Therapy Connector Cable (W11) Replacement
Refer to Inside Front Case Diagram (p. 189).
Removing the Therapy Connector Cable (W11)
To remove the therapy connector cable (see Figure 9.51 on p. 473) from the front case:
1. Disassemble the case as described in Disassembling the Case (p. 181).
2. From the outside of the front case, remove the four screws (3207361-375) from
the therapy connector.
3. Lift the therapy Connector cable (3207044-002) and therapy mounting seal from
the front case. Discard the four screws and therapy mounting seal (3207701-
000).
Installing the Therapy Connector Cable (W11)
To install the therapy Connector cable into the front case:
4 steps, (Page 1 of 2)
NOTE: If therapy connector cable requires replacement, use the
Therapy Connector Repair Kit (MIN 3305431-009) (p. 503).
1. From the outside of the front case, install a new therapy mounting seal
(3207701-000) into the front case.
CAUTION
POSSIBLE MOISTURE LEAKAGE When installing the therapy connector, use a new
therapy mounting seal (3207701-000) to help prevent ingress of fluids.

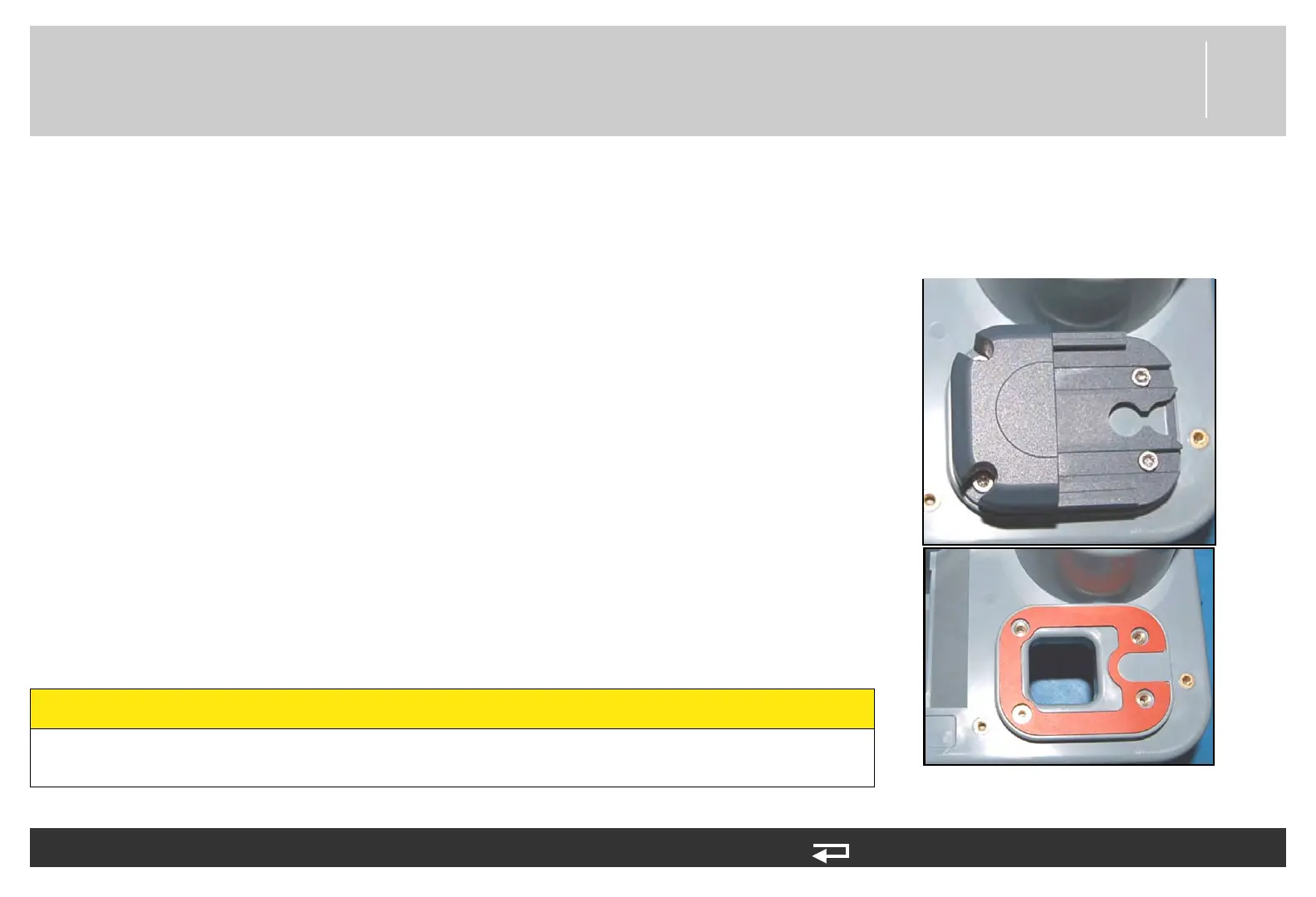

Figure 8.23—Therapy connector cable
and seal
