LIFEPAK 15 Monitor/Defibrillator
Service Manual
Assembly Diagrams and Parts Lists
Connection Diagrams for Assemblies, Control Boards, Cables, and
Connectors
Section Menu Section Contents
Back
Index
473
9

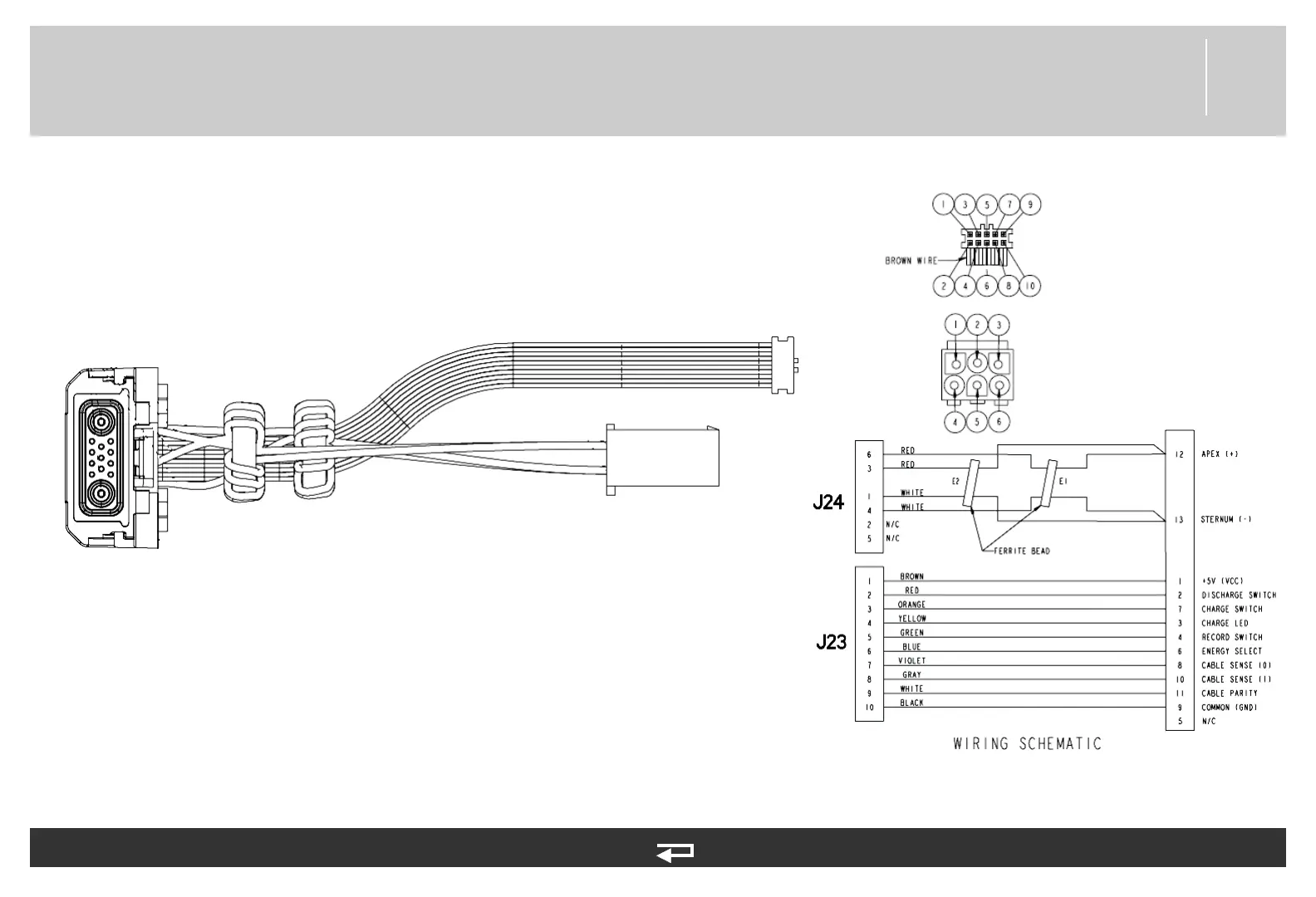

Therapy Connector Cable
Figure 9.51—Diagram for item W11
front view
J23
Transfer Relay Assembly (p. 455)
Therapy PCB (p. 446)
Refer to Figure 9.5: Front Case parts view 1 of 3, p. 378.
See MIN 3207044-002 in table for part information.
To Next Page
