Energy Storage Capacitor (A15) Replacement
Section Menu Section Contents Procedures Back Index
271
8
Energy Storage Capacitor (A15) Replacement
Energy storage capacitor replacement consists of the following procedures:
• Removing the Energy Storage Capacitor (A15) (p. 272)
• Installing the Energy Storage Capacitor (A15) (p. 273)

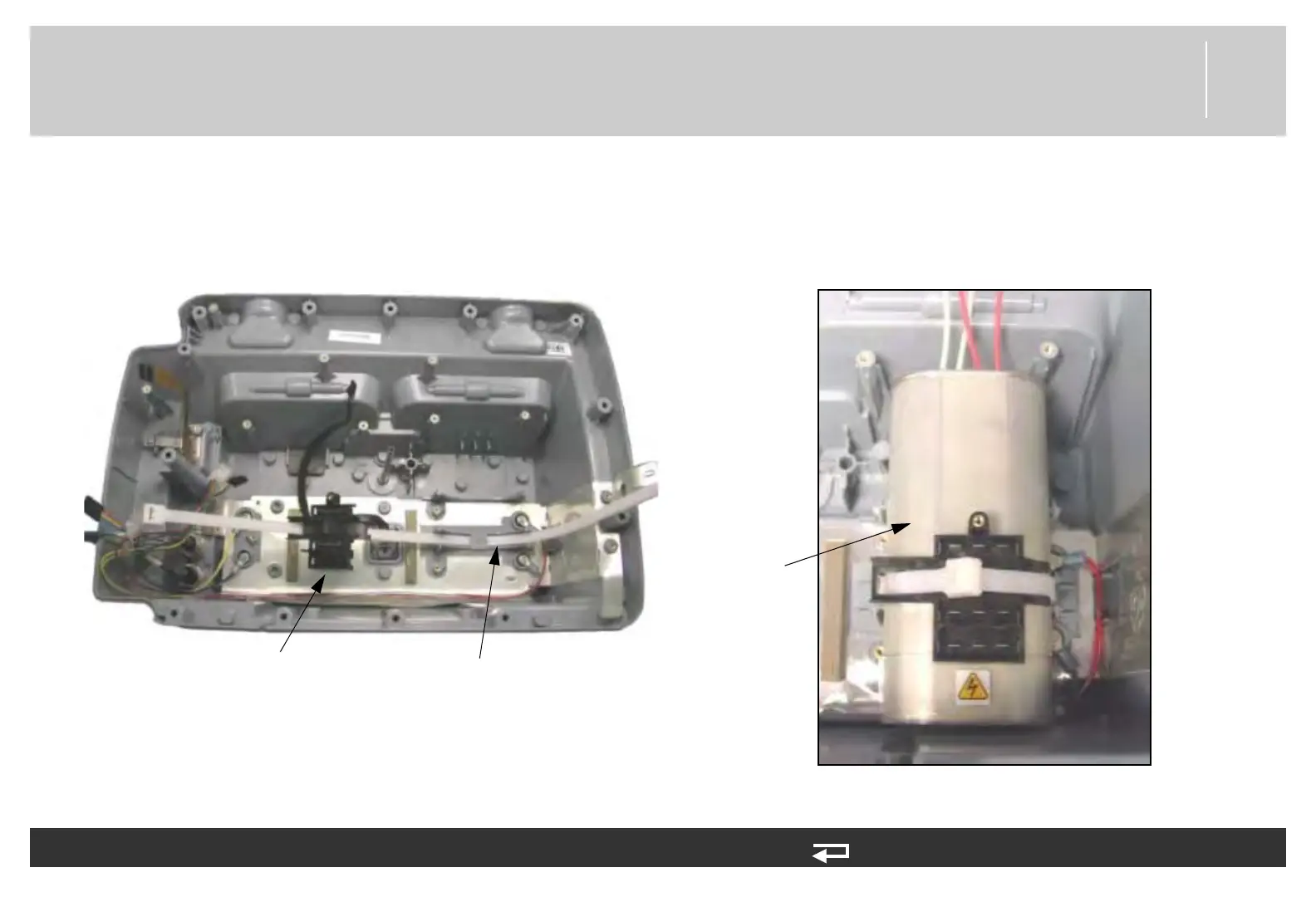

Figure 8.66—Capacitor and cable tie locations
A17 -
interconnect
bracket
large cable
tie
A15 - energy
storage
capacitor
