LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
Reassembling the Case
Section Menu Section Contents Procedures Back Index
184
8
Reassembling the Case
To reassemble the case halves: 13 steps, (Page 1 of 5)
1. Position the front case over the rear case.
2. Connect the P23 therapy ribbon cable connector (W11)
(3207044-002) from the front case to J23 of therapy PCB
(Figure 9.24 on p. 446).
3. Connect the J24 6-pin block therapy cable connector (W11) to P24
transfer relay connector (A13).

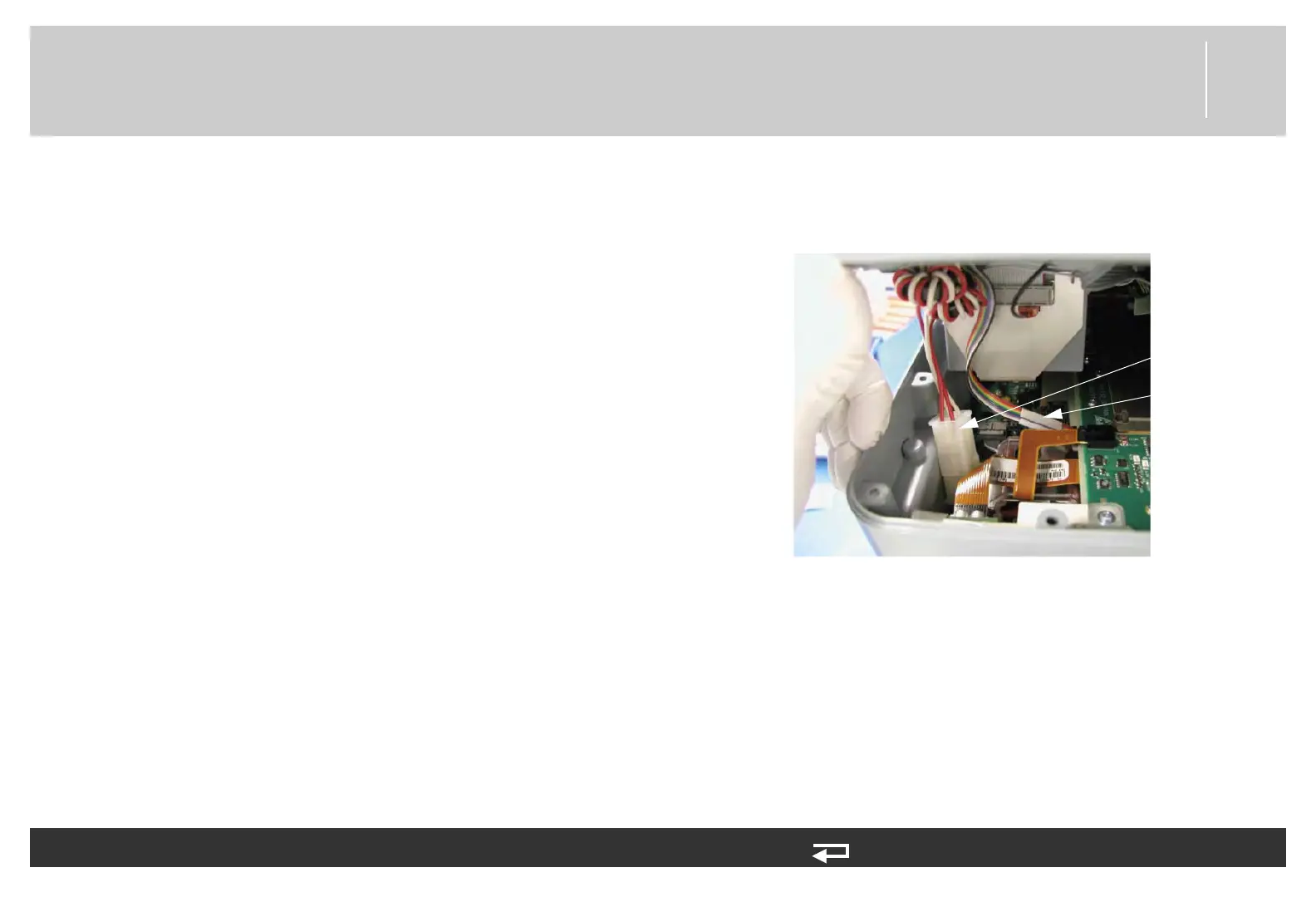

Connect P23
ribbon cable
Connect J24
therapy cable
