Physio Control LIFEPAK 15 - CO2 Inlet Connector Cable (W28) Replacement

LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
CO2 Inlet Connector Cable (W28) Replacement
Section Menu Section Contents Back Index
350
8
CO2 Inlet Connector Cable (W28) Replacement
C02 inlet connector cable replacement consists of the following procedures:
• Removing the CO2 Inlet Connector Cable (W28) (p. 351)
• Installing the CO2 Inlet Connector Cable (W28) (p. 352)

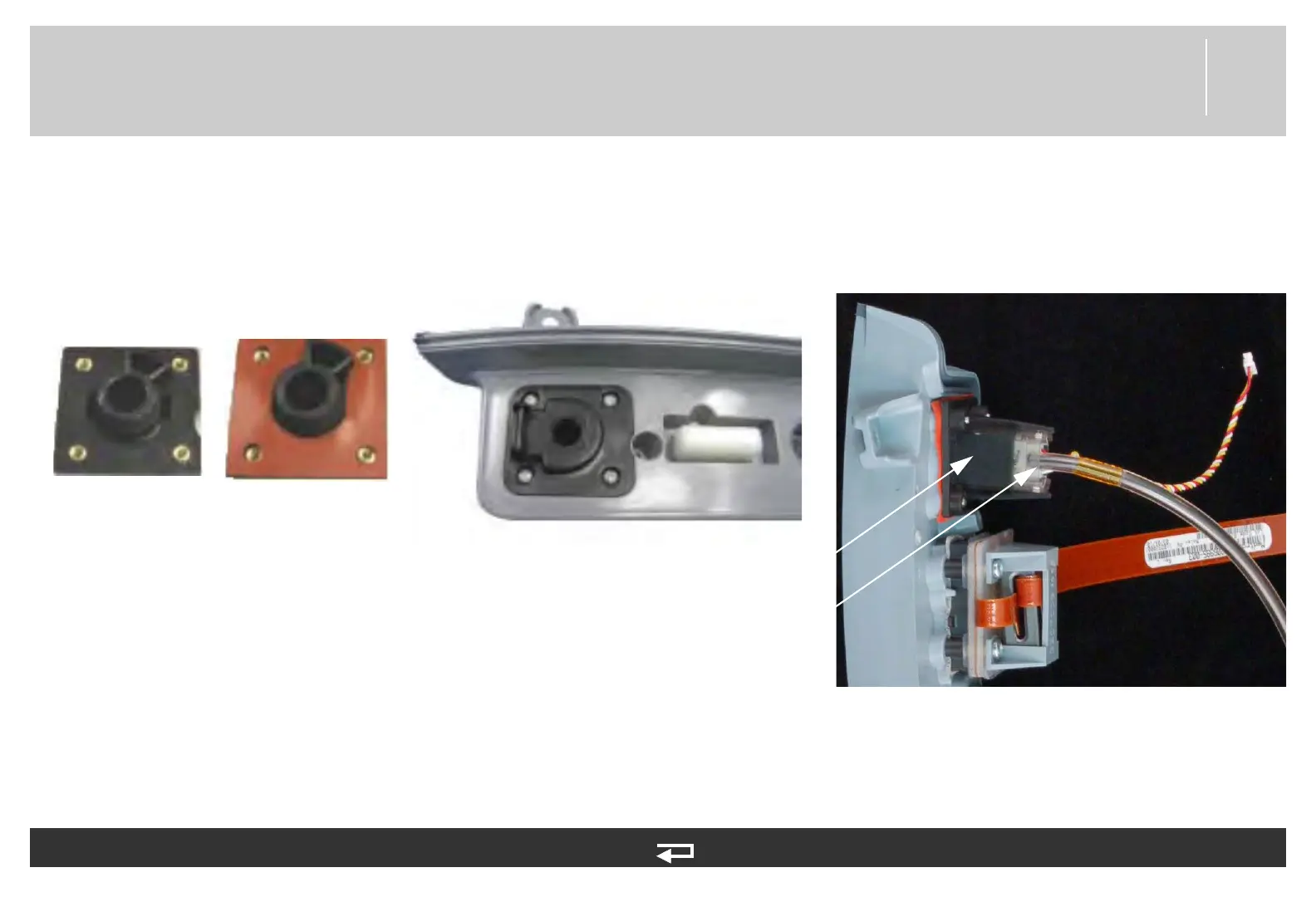

Figure 8.118—CO2 connector parts
CO2 connector
retainer
CO2 seal and
connector retainer
CO2 connector adaptor
and screws
CO2 inlet
connector cable
CO2 connector
retainer
