LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
System Connector Cable (W08) and Auxiliary Connector Cable
(W09) Replacement
Section Menu Section Contents Procedures Back Index
331
8
System Connector Cable (W08) and Auxiliary Connector Cable (W09) Replacement
The system connector and auxiliary power cable replacement consists of the following procedures:
• Removing the System Connector Cable (W08) or Auxiliary Power Cable (W09) (p. 332)
• Installing the System Connector Cable (W08) or Auxiliary Power Cable (W09) (p. 333)

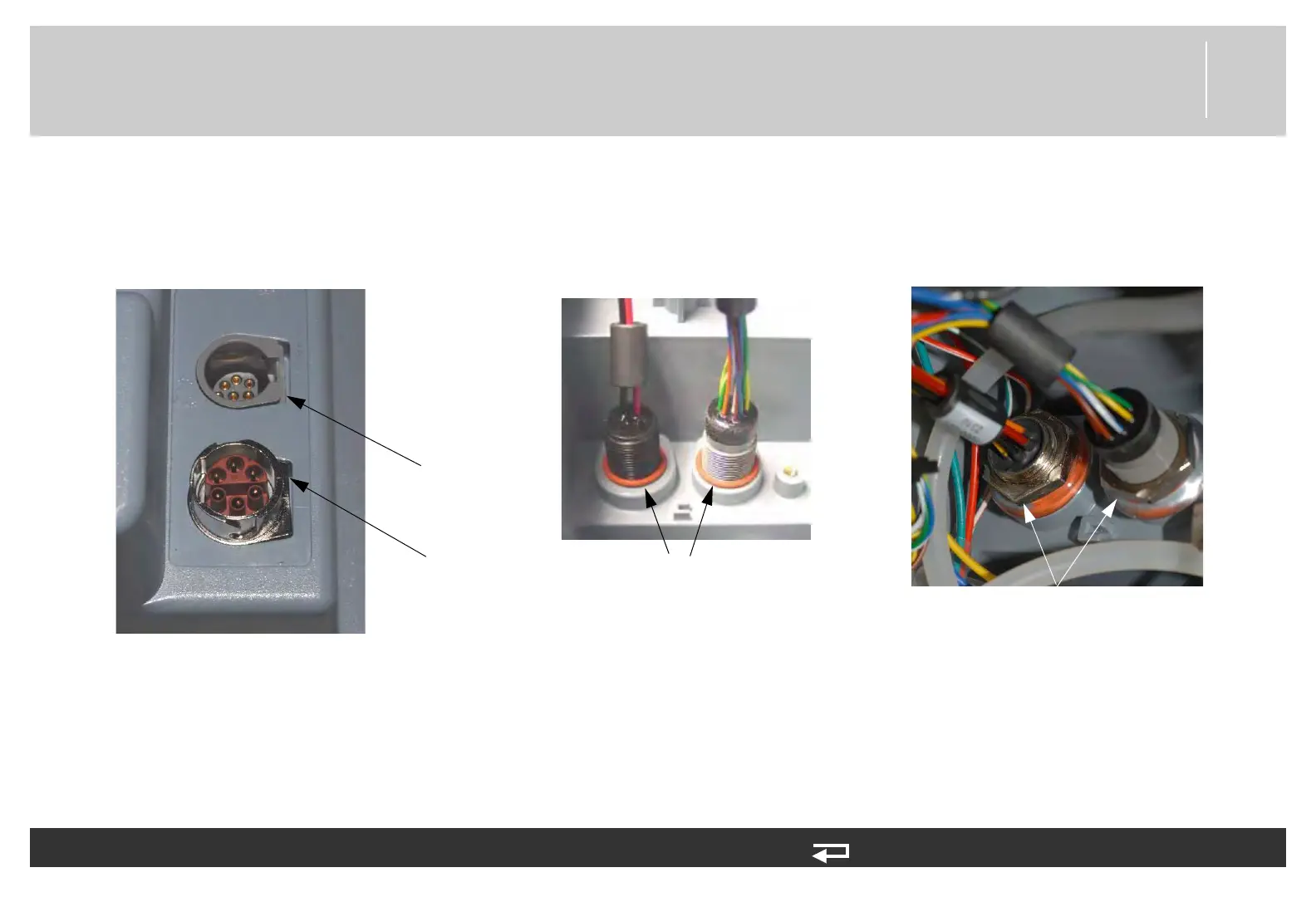

Figure 8.109—System connector cable and auxiliary power cable location and parts
system
connector
O rings
seal plates
and nuts
auxiliary
power
