LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
Speed Dial Assembly (W15) Replacement
Section Menu Section Contents Procedures Back Index
219
8
4. From the outside of the case, loosen and remove the nut and lock
washer (part of the speed dial assembly) from the speed dial assembly
shaft.
5. From the inside of the case, pull the speed dial assembly away from
the case and remove it.
To remove the speed dial assembly (3011128-002) (see Figure 9.54 on p.
476) from the front case: (Continued) 5 steps, (Page 2 of 2)
switch
retaining
nut

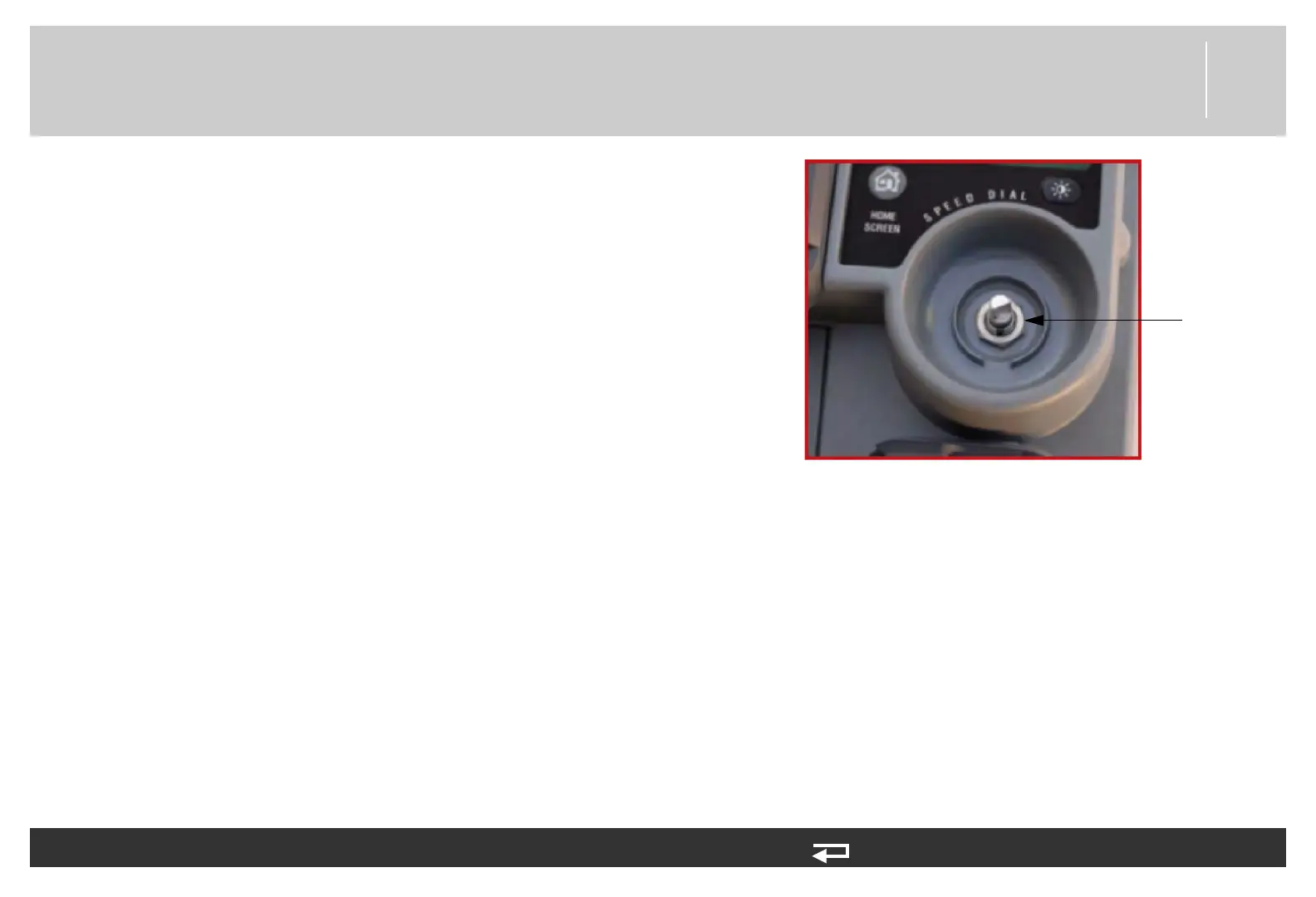

Figure 8.27—Nut and lock washer
