6.7.5.4 SinCos encoder with HIPERFACE interface
Under “Connection cables”, please note the requirements for the:
} Cable cross sections
} Insulation material
If the cable length is >50 m, please speak to our Customer Support.

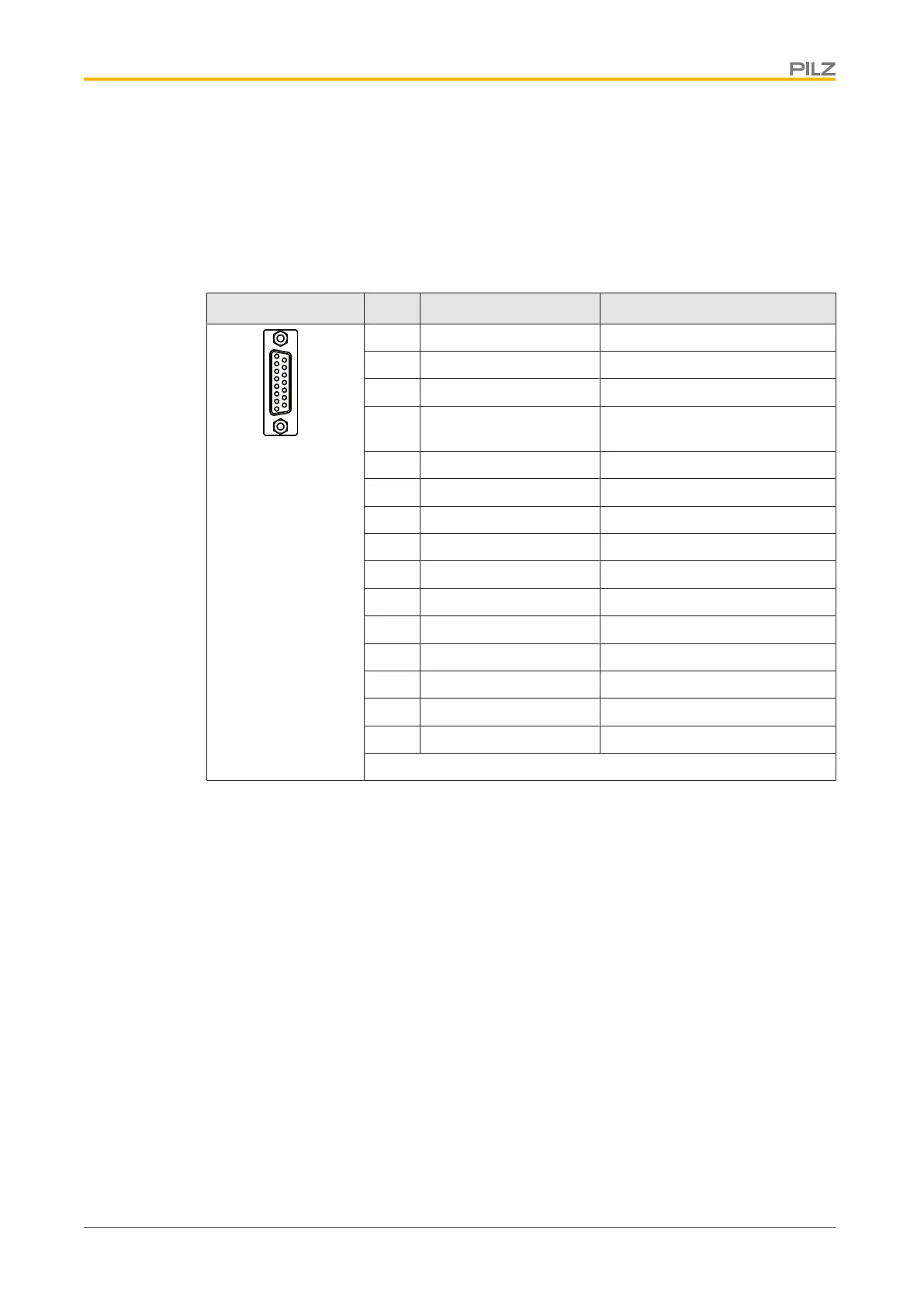

Connector X1 Pin Designation Description
1
8
9
15
1 +SIN Sine +
2 0 V Supply voltage 0 V
3 +COS Cosine +
4 Up Supply voltage for encoder 7 -
12VDC
5 Data+ (RS 485) Parameter channel RS 485
6 n.c. --
7 ϑ Thermal switch (+)
8 n.c. --
9 REFSIN Reference sine
10 n.c. --
11 REFCOS Reference cosine
12 n.c. --
13 Data- (RS 485) Parameter channel RS 485
14 ϑ Thermal switch (-)
15 n.c. --
n.c.: Not connected
Connector pin assignment
