5.5 Installing the expansion cards
INFORMATION
Please note: Do not twist the expansion card as you insert it or damage any
components.
5.5.1 Expansion cards for slot 1
The following expansion cards are available for slot 1:
} I/O expansion
} PROFIBUS
} PROFINET

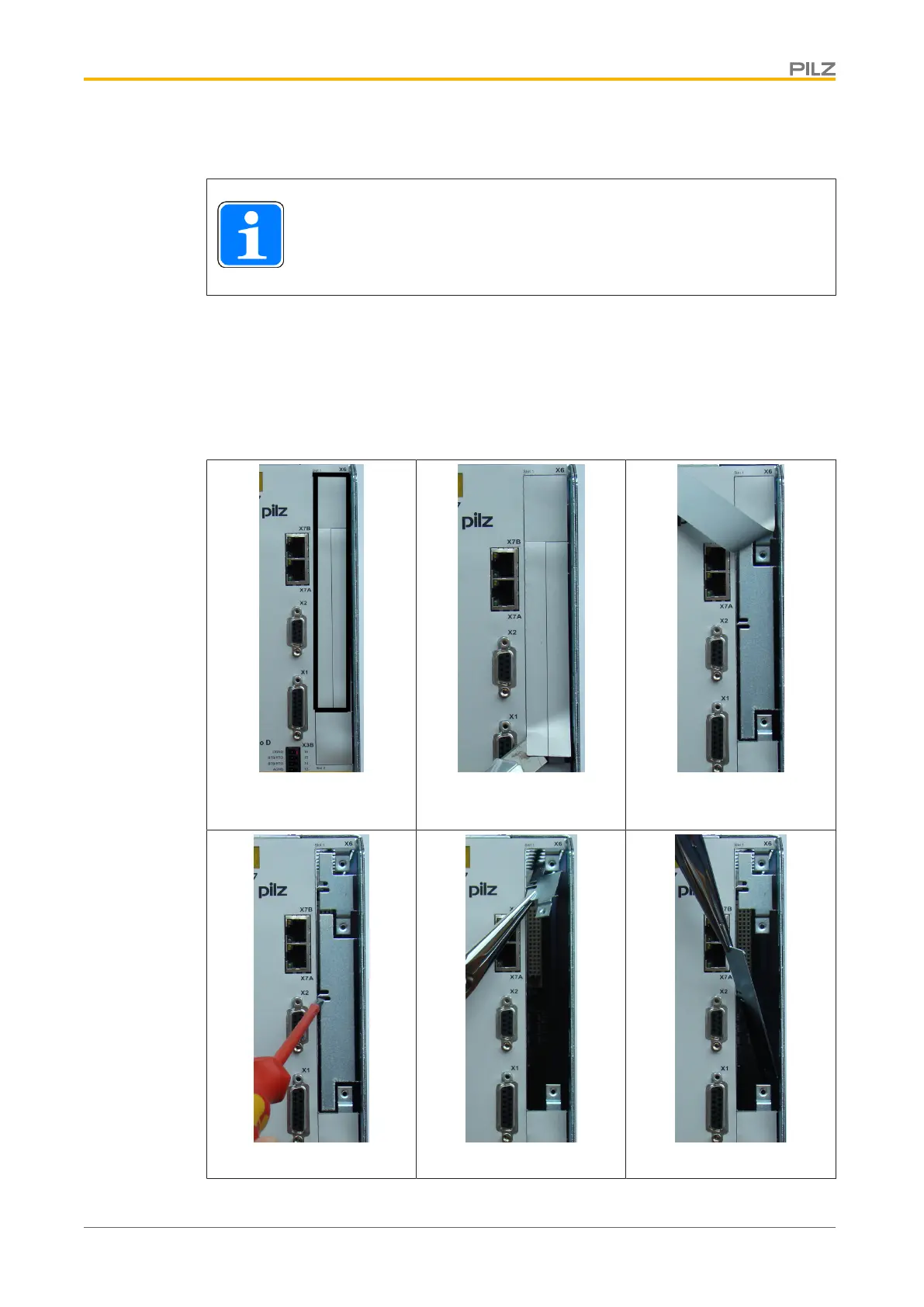

1. Mark the boundary for slot
1
2. Remove the film (perfora-
tion)
3. Tear off the film as far as
the marker
4. Break the bottom link 5. Break out the top plate 6. Break out the bottom plate
